Manufacturer product numbers = 45300900A1 + UP720 + 115.770.21.5

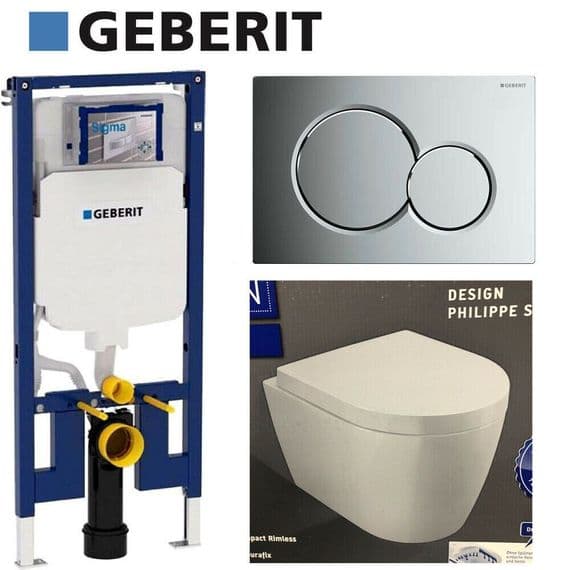

Complete set ALL IN ONE:

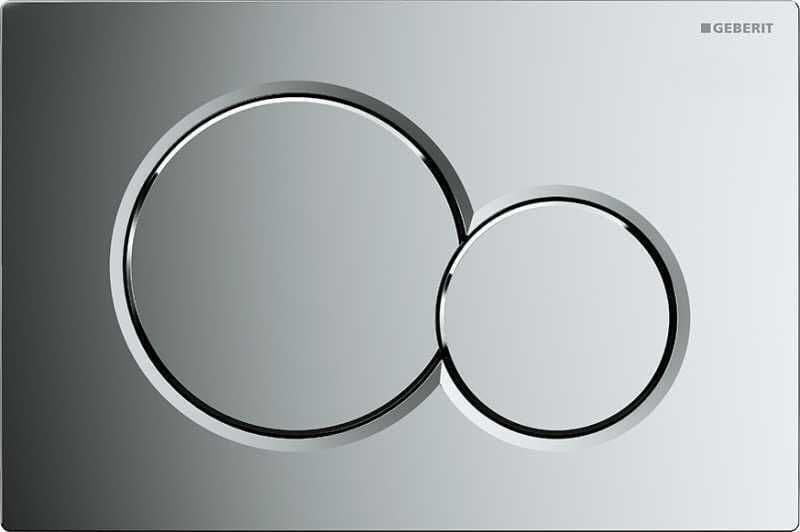

GEBERIT Duofix Frame UP720 with dual flush plate Sigma 01 in chrome
and
Duravit ME Toilet set wall mounted Duravit Rimless® with Soft Closing Seat
***
Product Details Geberit frame:
DIMENSIONS OF THE FRAME:
HEIGHT: 114cm, WIDTH: 50cm, DEPTH: 8cm
THE SET INCLUDES:
1 x GEBERIT UP720 TOILET CISTERN FRAME
1 x FIXING WALL BRACKETS (set of 2 built in the frame)
1 x INSULATING MAT FOR NOISE PROTECTION FOR WC
10 YEARS MANUFACTURER'S WARRANTY
-
Product Specifics:
· For drywall construction
· For installation in part or room height pre wall installations
· For installation in a load-bearing stud wall
· For wall-hung WC with connection dimensions in accordance with EN 33:2011
· Suitable for wall-hung WCs with projection up to 70cm
· For single flush, or dual flush
· For floor construction 0-20cm
· For installation of a wall-hung WC with bolt fixings set at 180 or 230mm centres
· For connecting Geberit AquaClean
· Any wall boarding must be fixed tight against the face of the DuoFix frame and screwed directly to the frame
· Installation depth of 80-110mm drainage dependant (side drainage increase installation depth)
· Frame Height 1140mm
· Adjustable flushing volume
· Large flush 7.5, 6, 4.5 litre
· Small flush 4,3 litre
· Factor set flush 6 and 3 litre
· Suitable for all Sigma flush actuation plates (except Sigma40)
· Sound-absorbing actuator rods, tool free, fast adjustment
· Suitable for Type01 and Type10 flush buttons
· M12 threaded rods for ceramic fastening
· Front actuation only
· Self-supporting frame, powder coated
· Frame with Ø 9mm fixing holes for fastening in to timber frame construction
· Frame suitable for ceramic WC appliances with small contact surface (with pressure-resistant wall covering)
· Leg support, zinc-plated, infinitely variable in height
· Non-slip leg supports
· Foot plate depth suitable for installation in U-profiles UW 50 and Geberit Duofix system rails
· Connection bend can be installed without tools at different depths
· Connection bend can be mounted vertically with front flush
· Waste connector bend, extended, for connection in floor
· Fastening for connection bend, sound-absorbing
· Concealed cistern with front actuation, fully insulated against condensation
· Cistern fulfils standard requirements in accordance with EN 14055, Class II
· Immediate post flush possible with factory setting
· Tool-free installation and maintenance work on concealed cistern
· Water supply connection at the top, offset to left side
· Universal water supply connection compatible with MeplaFix, can be mounted and operated without tools.
· Connection hose to angle stop valve can be fastened without tools
· Protection cover box for service opening protects against moisture and dirt
· Protection box for service opening can be adjusted to length without tools, suitable for surface-even actuator plates
· Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
· Cistern can be operated with recycled water (rainwater) provided it is passed through a filter system.
-
Technical Data :
Flow Pressure 10-1000kPa
Maximum Operating temperature, water 25oC
Flush Volume, Factory setting 5.8 and 3 litre
***

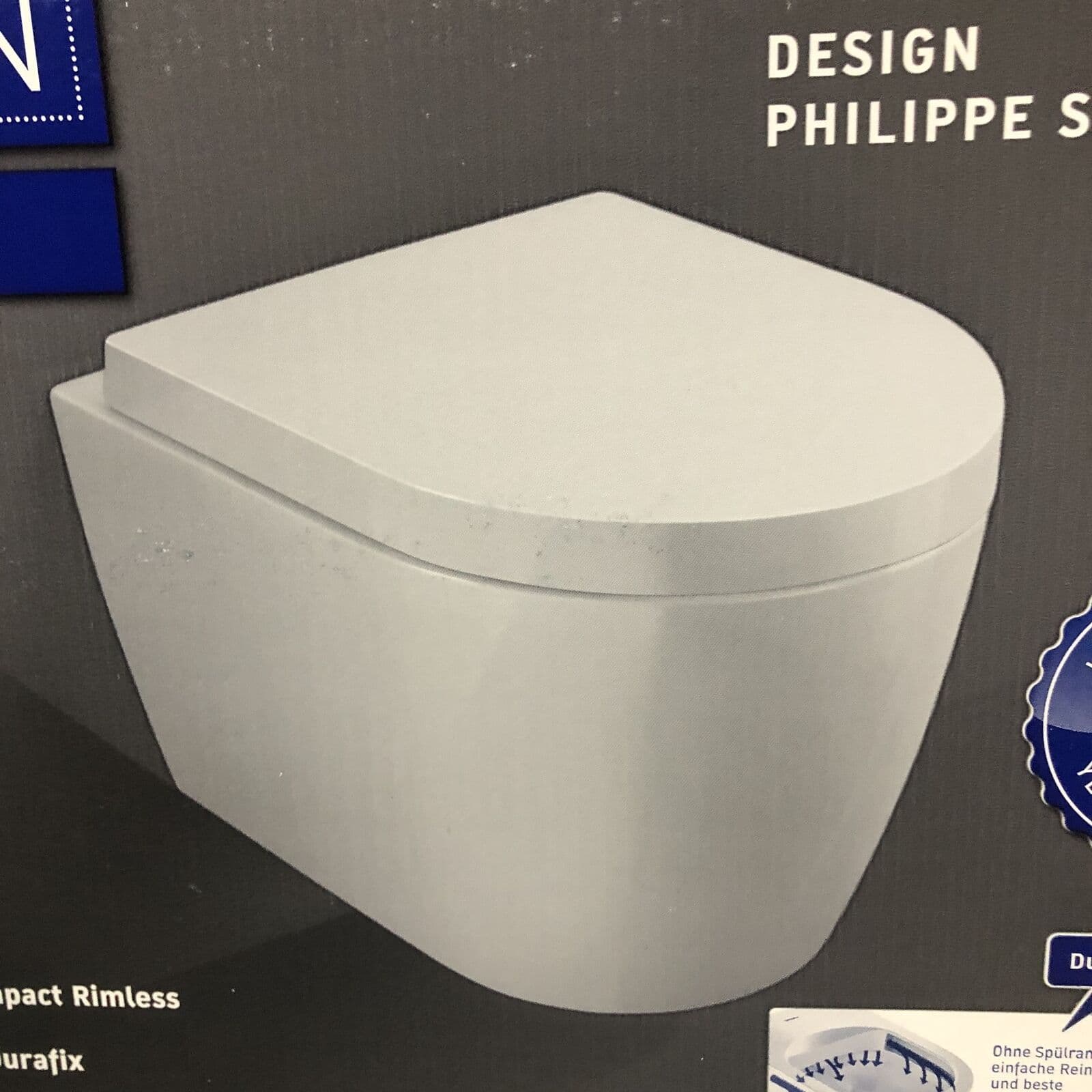

Product Details Duravit Toilet and Seat:
Designed by Philippe Starck
Size: Compact
Installation: Wall hung
Colour: White
Type: Rimless
Innovative and powerful flush Washdown
Duravit toilet seat with soft closing easy release hinges
Compact size of the WC - only 48cm projection from the wall
Duravit set includes:
WC Toilet pan
Soft Closing Toilet seat with easy release hinges
Fixings
