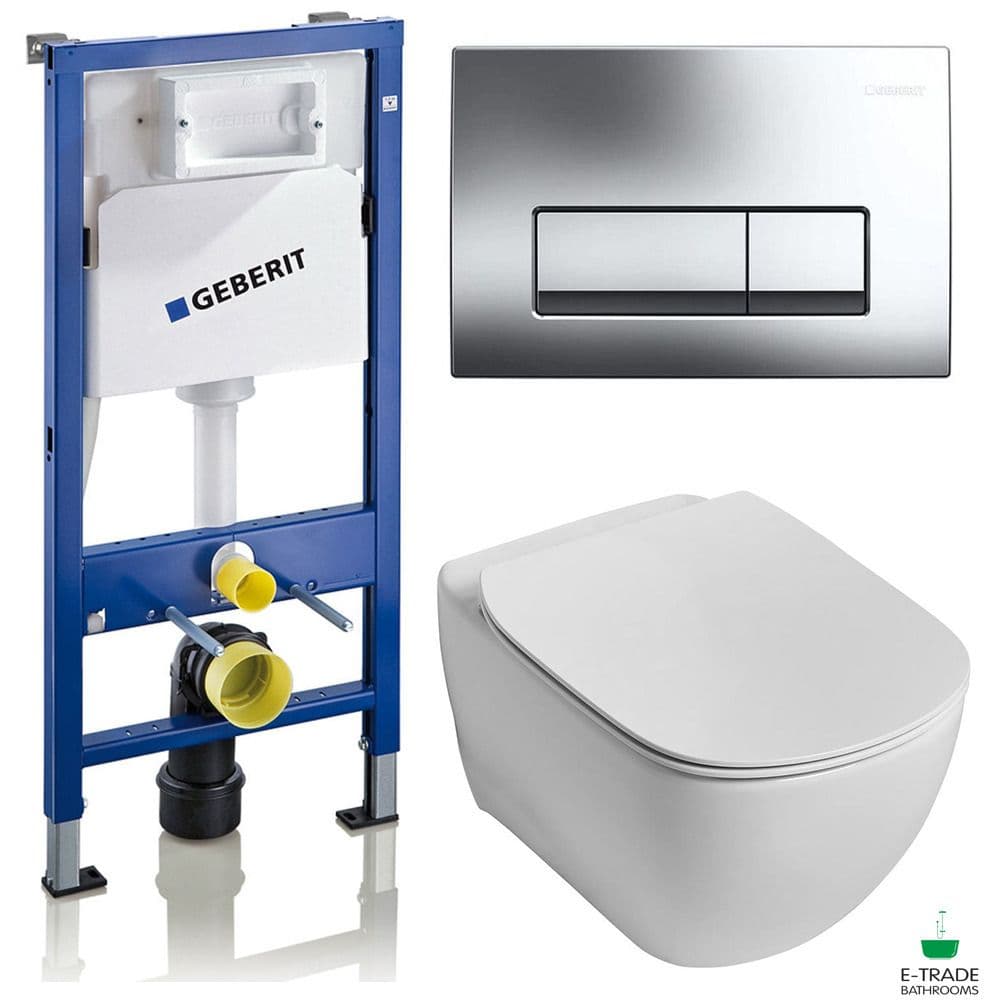

GEBERIT UP100 DELTA FRAME + DELTA 51 CHROME FLUSH PLATE + IDEAL STANDARD TESI AQUABLADE WALL HUNG RIMLESS WC + SOFT CLOSING SEAT +FRESH SYSTEM

THE SET INCLUDES:

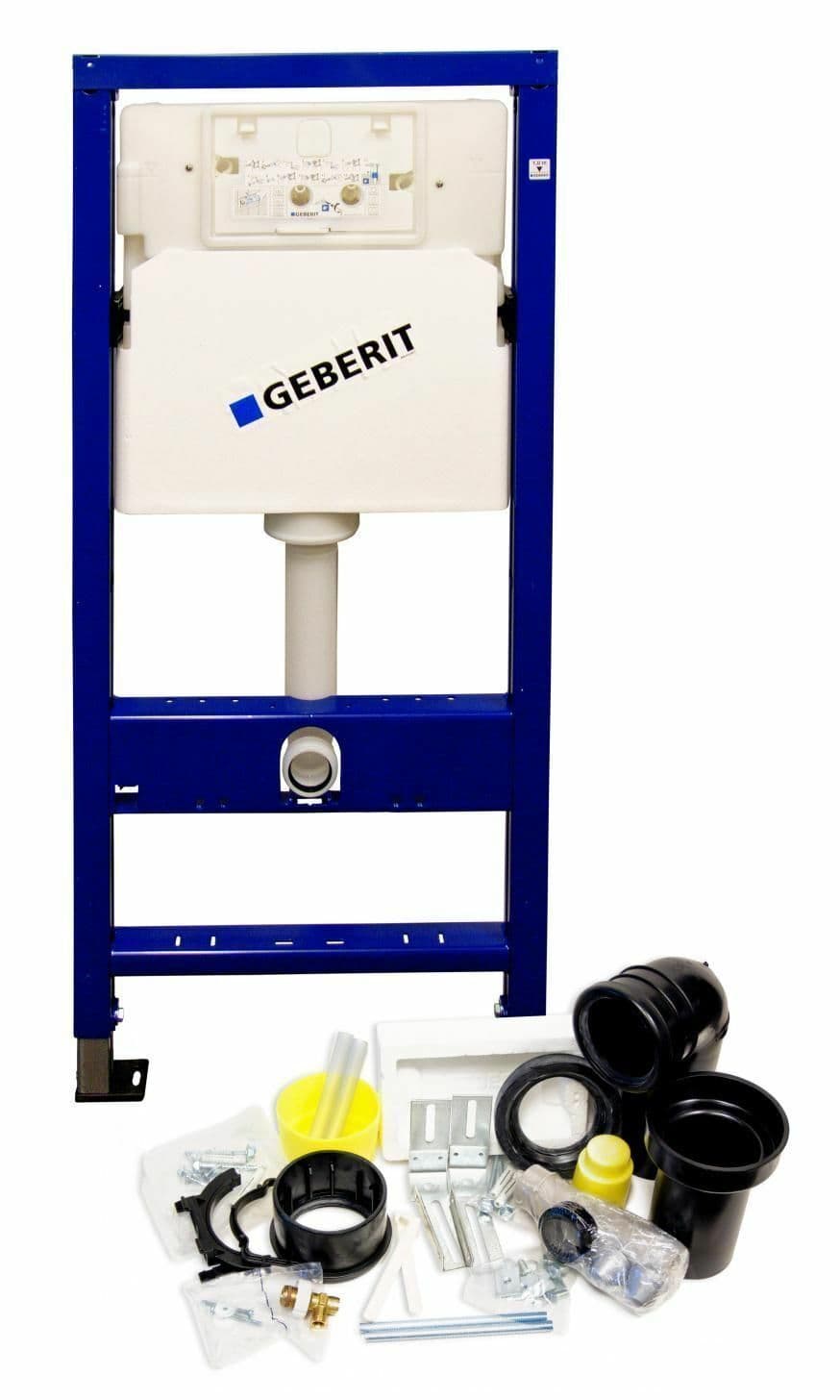

1 x GEBERIT UP100 TOILET CISTERN FRAME
1 x FIXING WALL BRACKETS (set of 2)
1 x GEBERIT DELTA 51 FLUSH PLATE IN CHROME
1 x INSULATING MAT FOR NOISE PROTECTION FOR WC
1 x FRESH SYSTEM ESPECIALLY MANUFACTURED FOR UP100 GEBERIT FRAMES
1 x IDEAL STANDARD TESI AQUABLADE WALL HUNG RIMLESS COMPACT SIZE TOILET (NON GEBERIT)
1 x SOFT CLOSING EASY RELEASE SEAT AND COVER MADE OF QUALITY DUROPLAST (NON GEBERIT)

 10 YEARS MANUFACTURER'S WARRANTY FOR GEBERIT FRAME

***
Product Specifics:

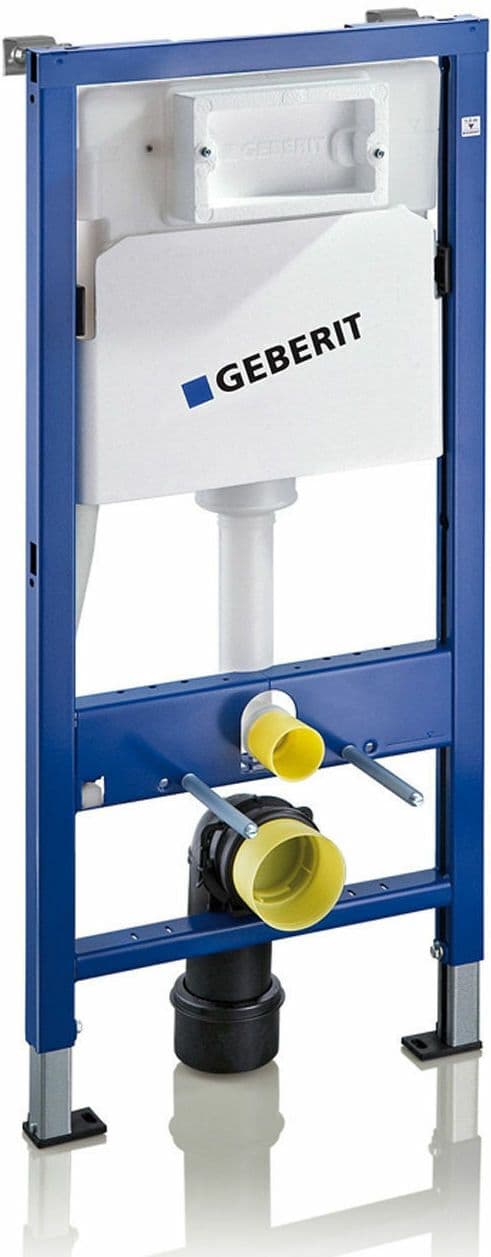

1. GEBERIT Duofix Concealed Cistern DELTA (UP100)
     Concealed Cistern with insulation anti-fog
     The ability to adjust the amount of flushing water
     Constants can be set at a smaller amount of water in the cistern
     With the factory settings, you can rinse immediately
     Water connection in the middle of the back / top
     Manually screw the hose connecting the valve angle
     The "stop" button actuator with Delta15, Delta11,Delta40
     Flush with Delta20 bipartite trigger control, Delta21 andDelta51
     Frame powder coated, Ultramarine Blue
     Self-supporting frame with holes of 9 mm to be mounted in a wooden wall frame
     Legs galvanised, continuously adjustable in the range of 0 - 20 cm
     Plate Floor-wide fitting for installation in UW50 profile
     Depth of 12 cm
     The factory setting the amount of water to flush 6 and 3.5l
     The setting range for the flushing water with lots of 4.5 / 6/ 7.5

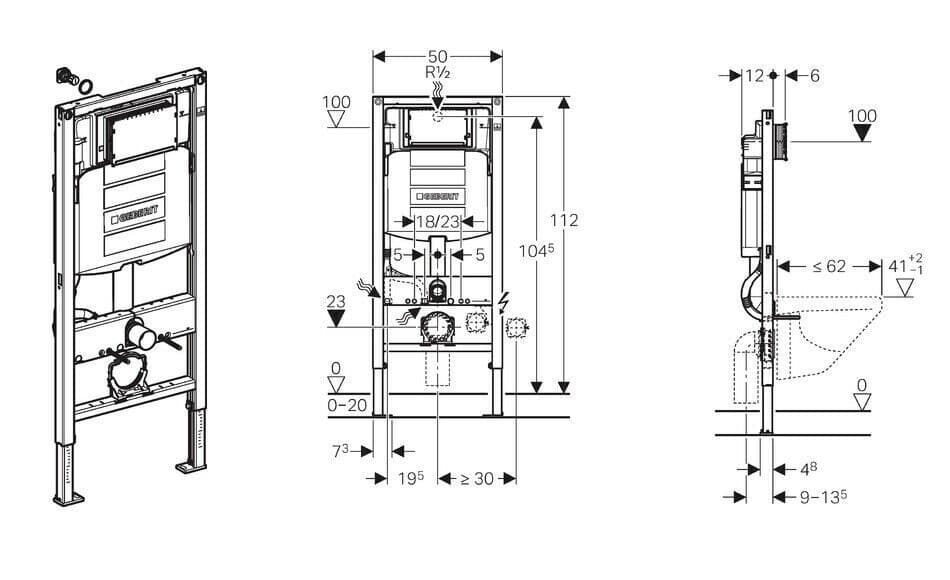

DIMENSIONS OF THE FRAME:
HEIGHT: 112cm, WIDTH: 50cm, DEPTH: 12cm

2. GEBERIT Delta 51 Flush Plate
Dual type flush plate
In chrome finish
For dimensions - see the drawings in our photos
Manufacturer's Product Number: 115.105.DW.1

3. Wall hung compact size rimless toilet with soft closing seat with easy release hinges.
The Tesi wall hung toilet features Ideal Standard's AquaBlade® technology delivering a quieter, cleaner and smarter flush every time. The narrow channel reduces turbulence, making for a much quieter flush while the design of the bowl makes it easy to clean and leaves 95% of the bowl surface clean every time, compared with traditional WCs which leave 20% of the bowl unwashed. Comes with the option of a standard or soft close seat.

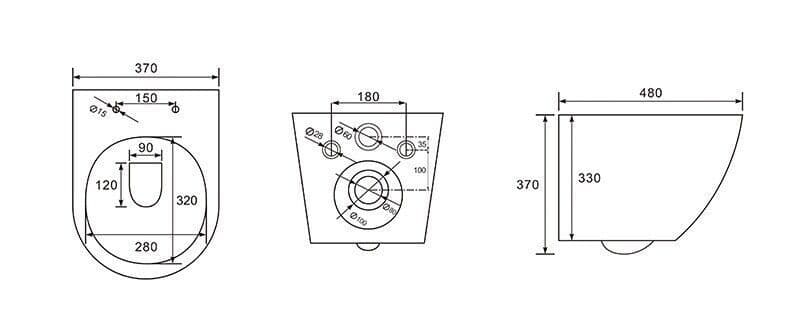

For the dimensions of the WC please see the technical drawings in our photo gallery.

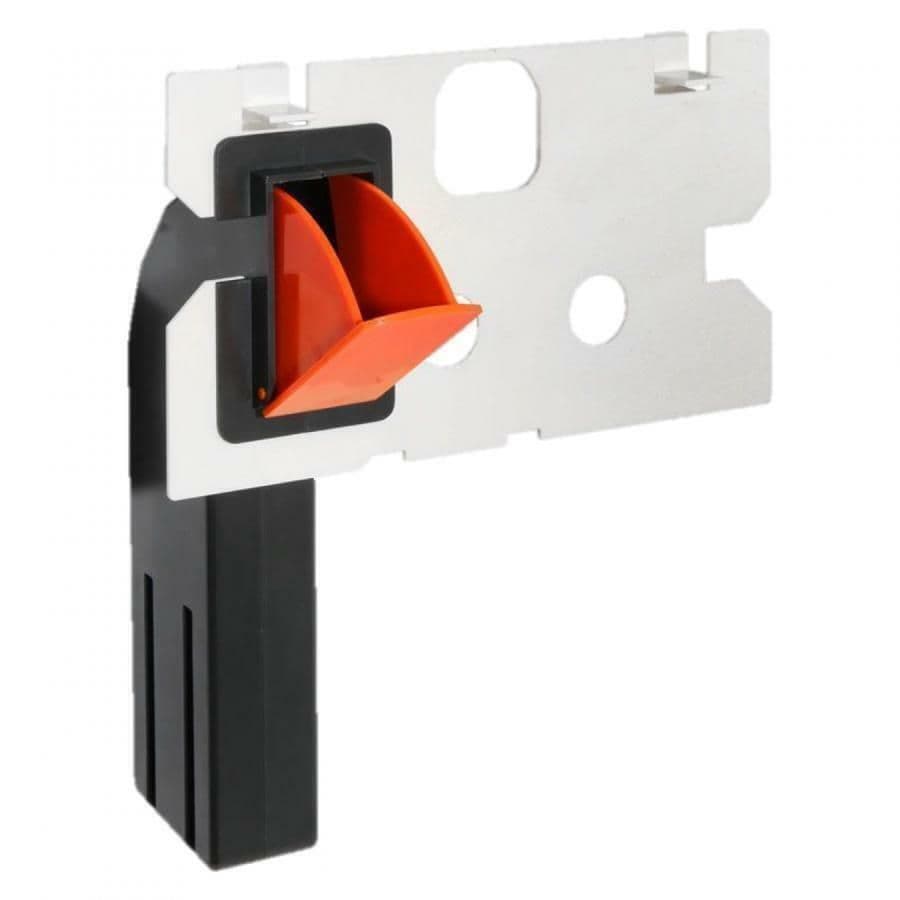

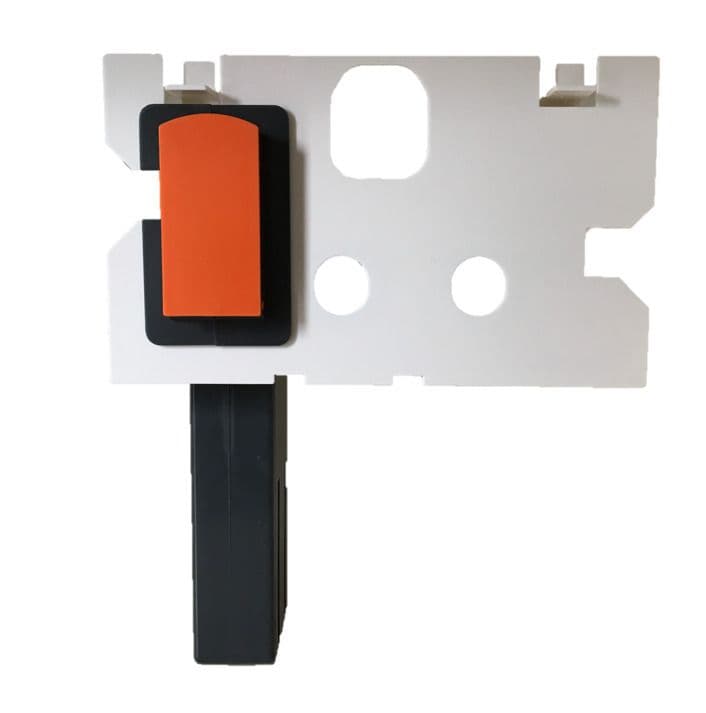

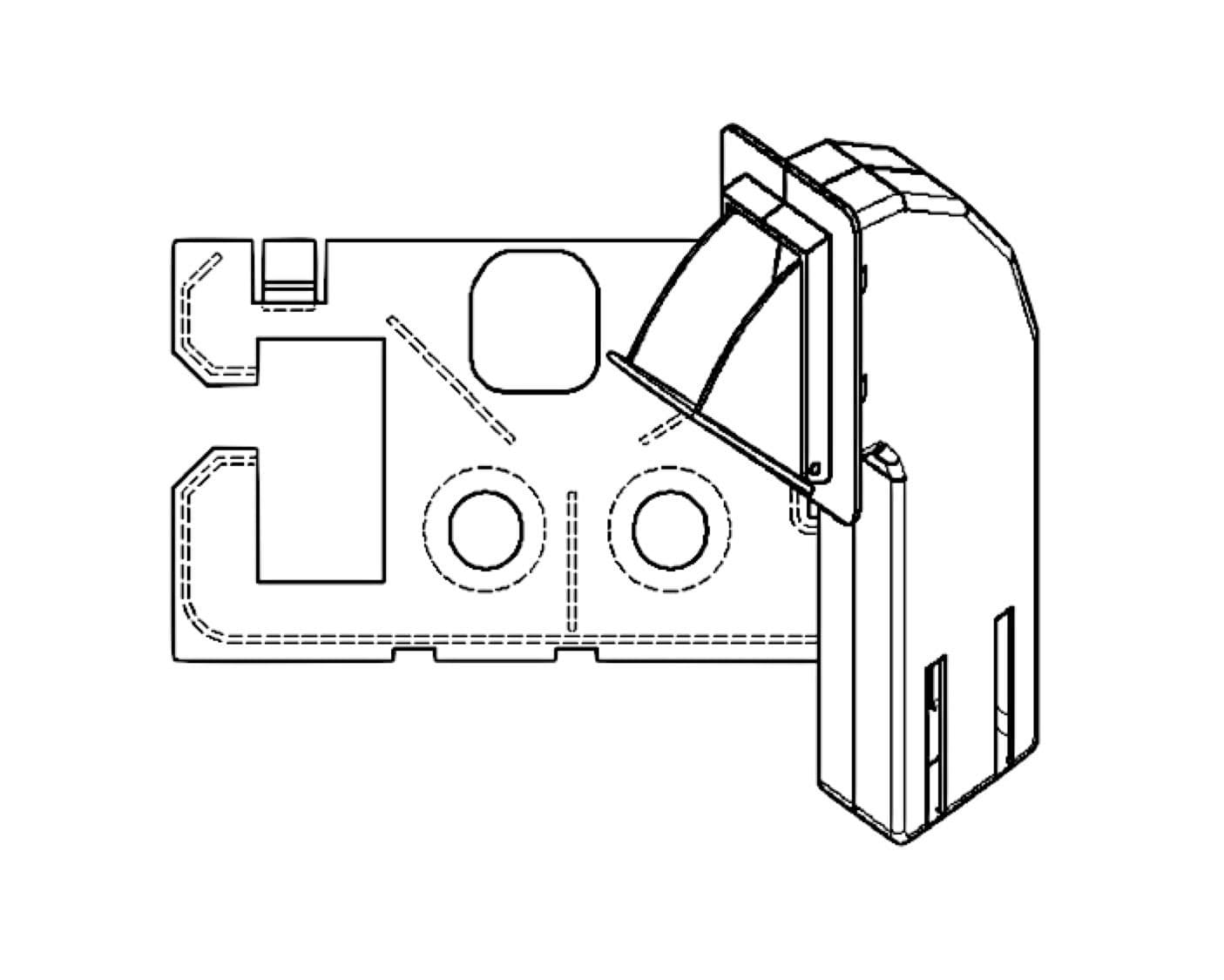

4. Slot for Cleaning Cubes for GEBERIT Frame Delta UP100 Basic
This product is dedicated to Basic Frame Delta UP100 by GEBERIT, which does not have Fresh System. Many customers appreciate this feature which now can be added to the UP100 frame, even after years of using it without the Fresh System.
Manufactured in Netherlands
Made of plastic
Manufacturer's Product Number: 42.43.128
Specially Designed for the UP100
