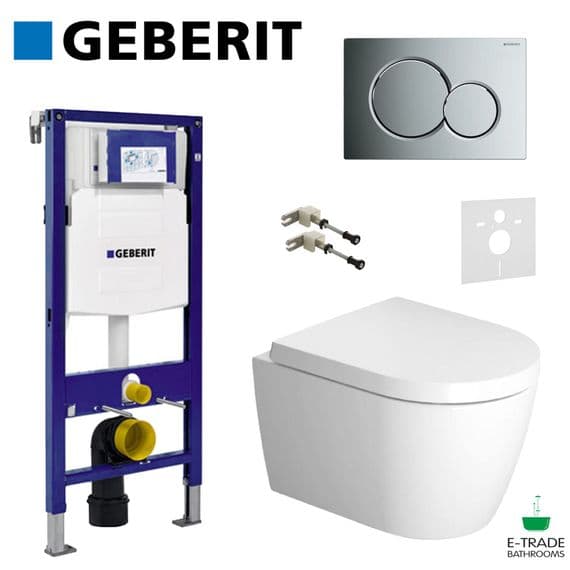

GEBERIT UP320 WC Frame with brackets and chrome flush plate

Manufacturer product numbers = 111.320.00.5 + 45300900A1 + 115.770.21.5

THIS SET CONSISTS OF:

GEBERIT Duofix UP320 SIGMA Frame with Concealed Cistern

GEBERIT Fixing Brackets

GEBERIT Sound Insulation Pad

GEBERIT Sigma 01 Chrome Flush Plate

DURAVIT ME Rimless Soft Closing Compact WC

DURAVIT ME Rimless Soft Closing Seat
***

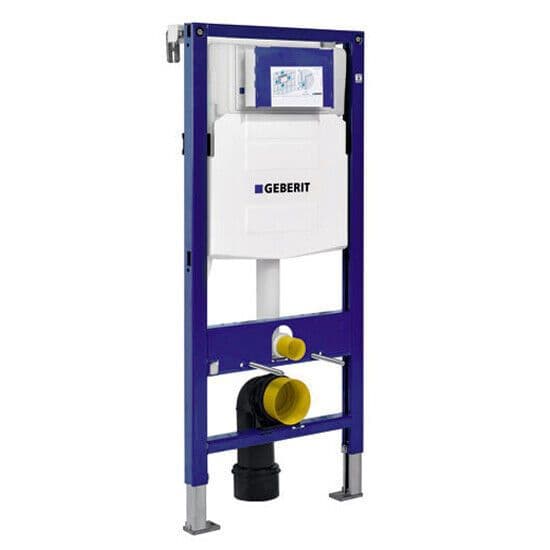

UP320 Frame Features:
Concealed front operated cistern complete with PreWall brackets.
For use with front-mounted Rumba, Samba, Tango, Twist, Mambo or Bolero flush plates.
Designed to withstand a heavy load 400kg (64 stone)
Accessibility at any time, the flush plate, the filling valve as well as the flush valve can be removed and easily replaced without tools.
Dual flush saves water with buttons for 3 or 6 litres of water.

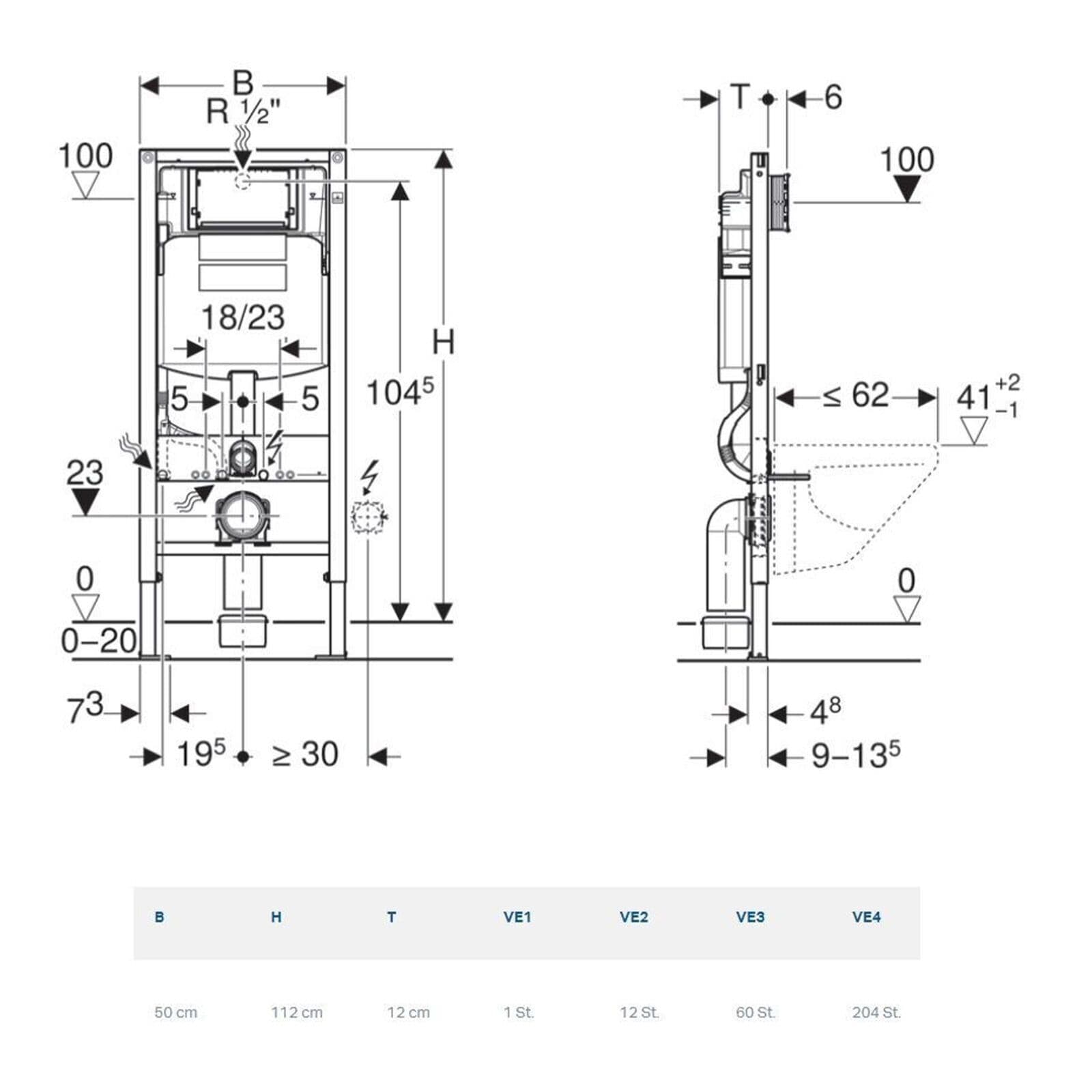

DIMENSIONS OF THE FRAME:
Height: 112cm, Width: 50cm, Depth: 12cm

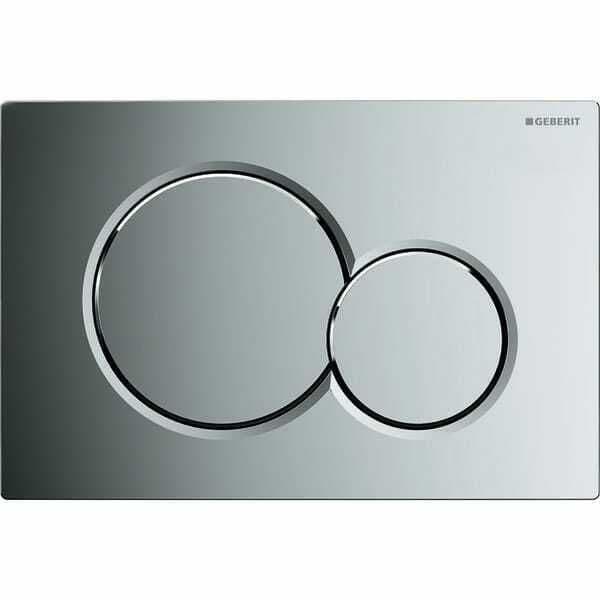

GEBERIT Sigma 01 Description:
Geberit has time and again provided exclusively bathroom fixtures with an eye for quality and design. The Sigma01 Dual Flush Plate is stylish looking, and sophisticated, ideal for use with Sigma concealed cistern of a specific size. Includes sound-absorbing actuator rods, tool-free and fast adjustment, distance bolts and mounting frame and is ideal for those seeking an exclusive bathroom fixture. The accessory is made from plastic and can be easily fixed. Suitably priced, you can now order this product online from the comforts of your home or office.

Size: 246 x 164mm [Width x Height]
Depth: 13mm [Thickness]
Compatible for use with Sigma concealed cistern 12 cm and 8 cm
Sound-absorbing actuator rods and tool-free fast adjustment
Dual flush plate with front actuation
Manual flush actuation
Actuation force: < 20 N
Material: Plastic
Button shape: Round
Guarantee: 1Year

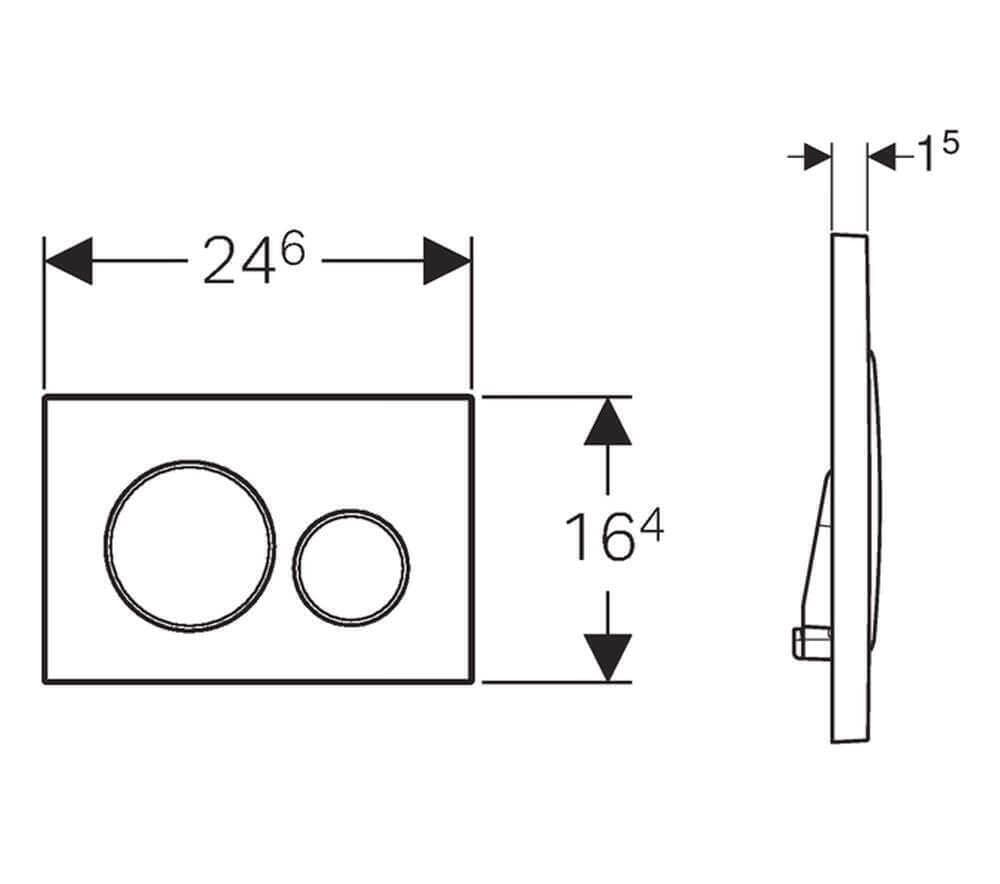

Refer to the technical drawing for more details
Supplied with Actuator rods, and Distance bolts and Mounting frame

DURAVIT ME Description:

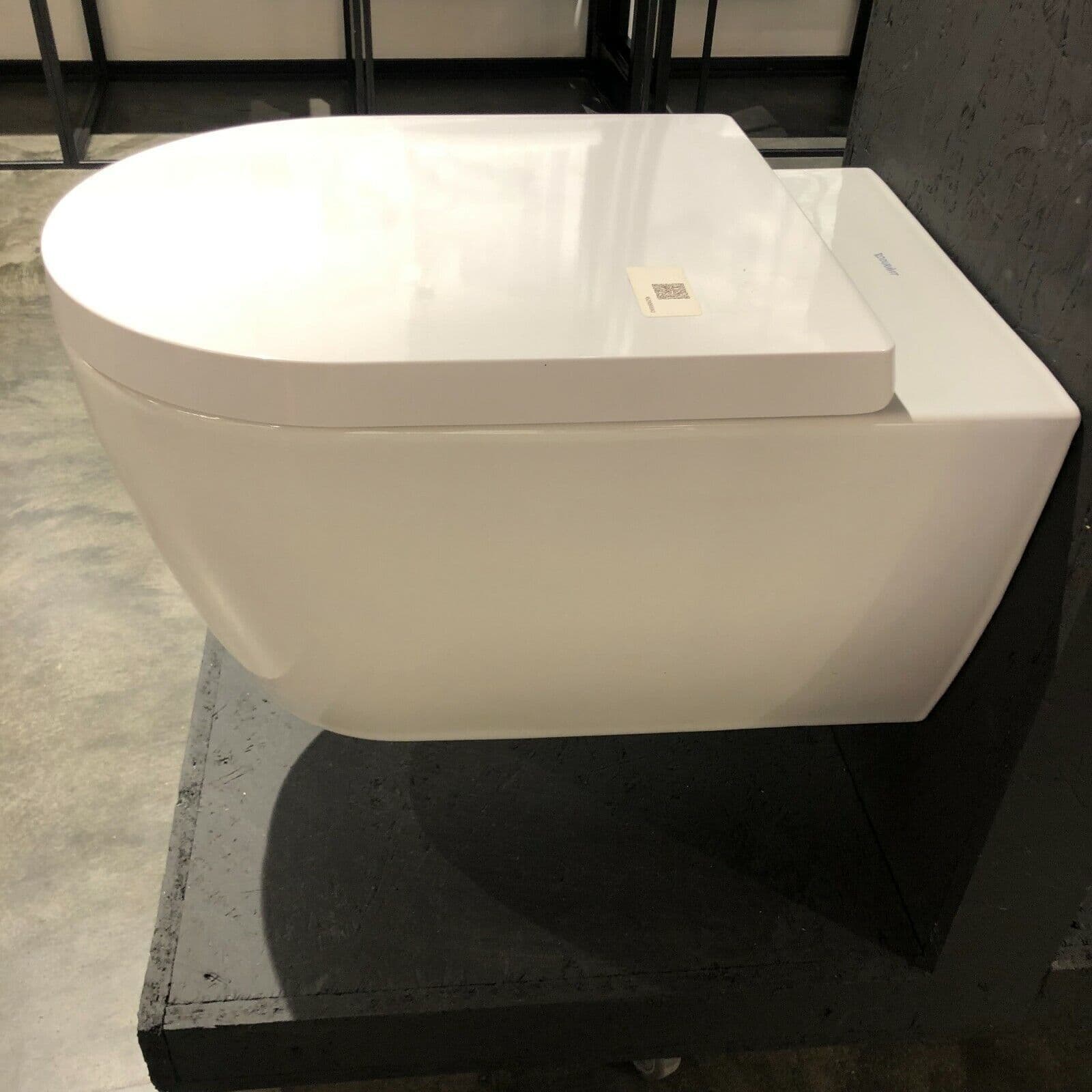

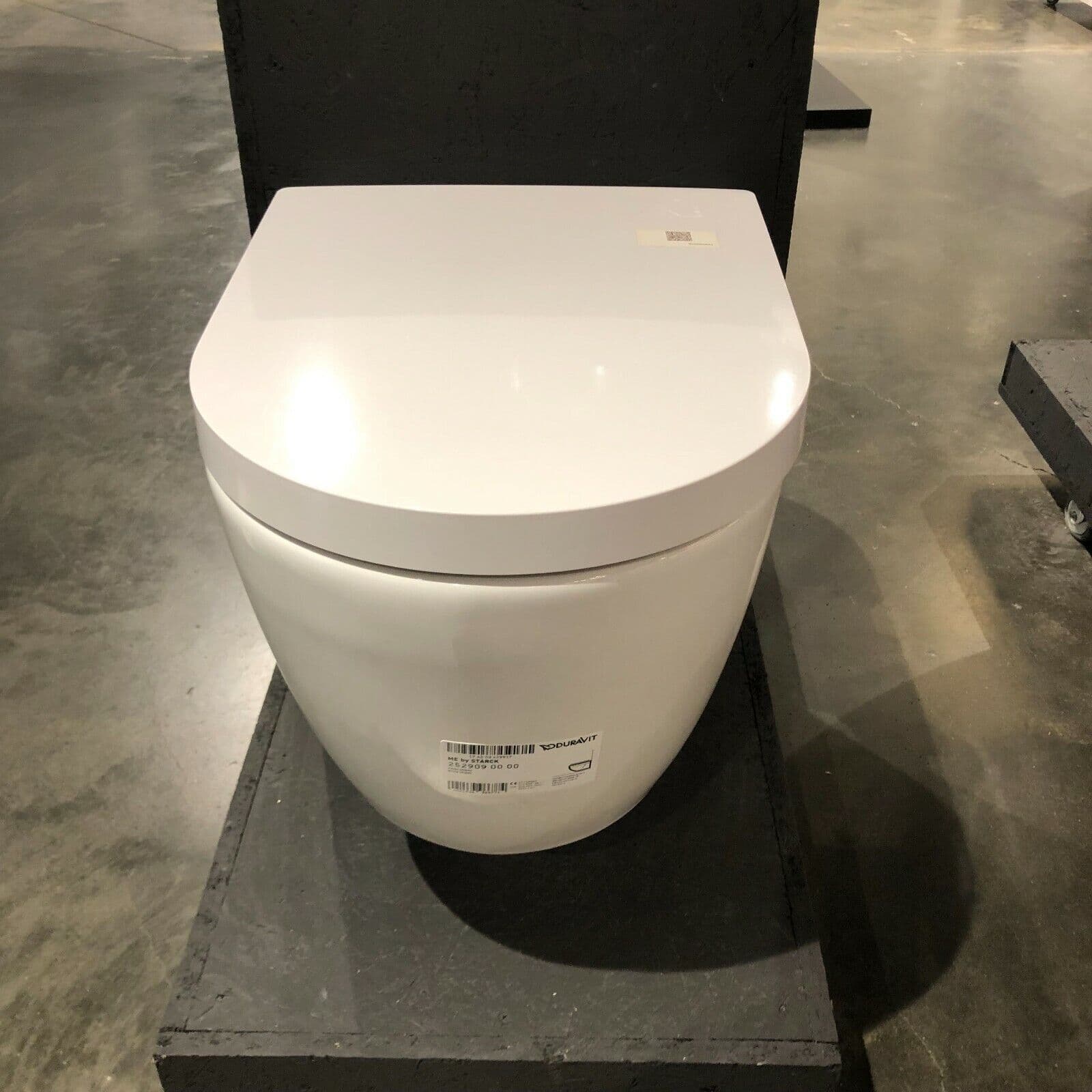

If you are looking for a compact wall hung toilet for your bathroom but don't want to compromise on style or performance, check out the Duravit ME Starck Compact Rimless toilet. Designed by world famous designer Philippe Starck, this toilet has a cool minimalist aesthetic that looks good a wide variety of bathroom designs. The toilet bowl is rimless, which allows for a more efficient flush and improved hygiene. Thanks to this rimless design there are no more crevices for bacteria to hide and multiply. The toilet bowl comes with a matching toilet seat and cover, made from ultra strong duroplast. The toilet seat is easily removable for easy cleaning and comes with a slow close function to prevent slamming. Order yours today and get a top of the line toilet and seat pack!

Features:
Washdown toilet designed by Philippe Starck

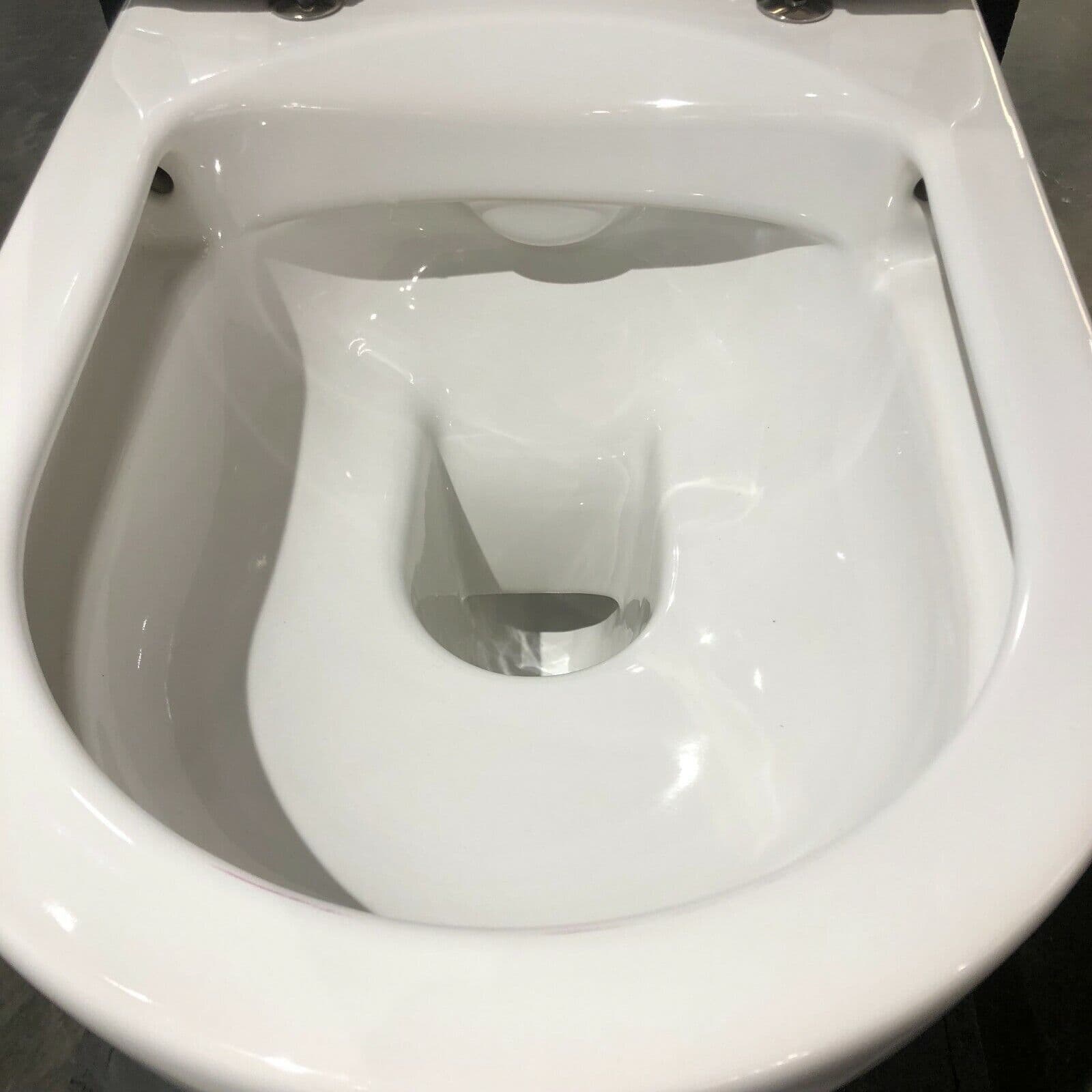

Rimless toilet bowl provides efficient flushing and optimum hygiene
Compact minimal projection toilet is perfect for bathrooms with limited space
Toilet seat is removable to allow for easing cleaning
Slow close technology ensures you never slam the seat shut
Stainless steel hinges will last for ages

Technical Information
Dimensions: 370x480mm
Flush volume: 4.5 l

Dimensions of the WC:

Length (projection from the wall): 480mm

Width: 360mm
