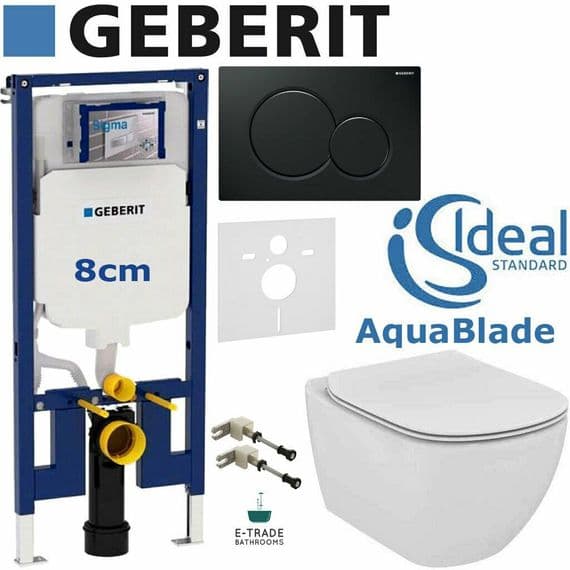

GEBERIT UP720 with IDEAL STANDARD WALL HUNG WC TESI AQUABLADE SOFT CLOSING TOILET
THIS SET CONSISTS OF:

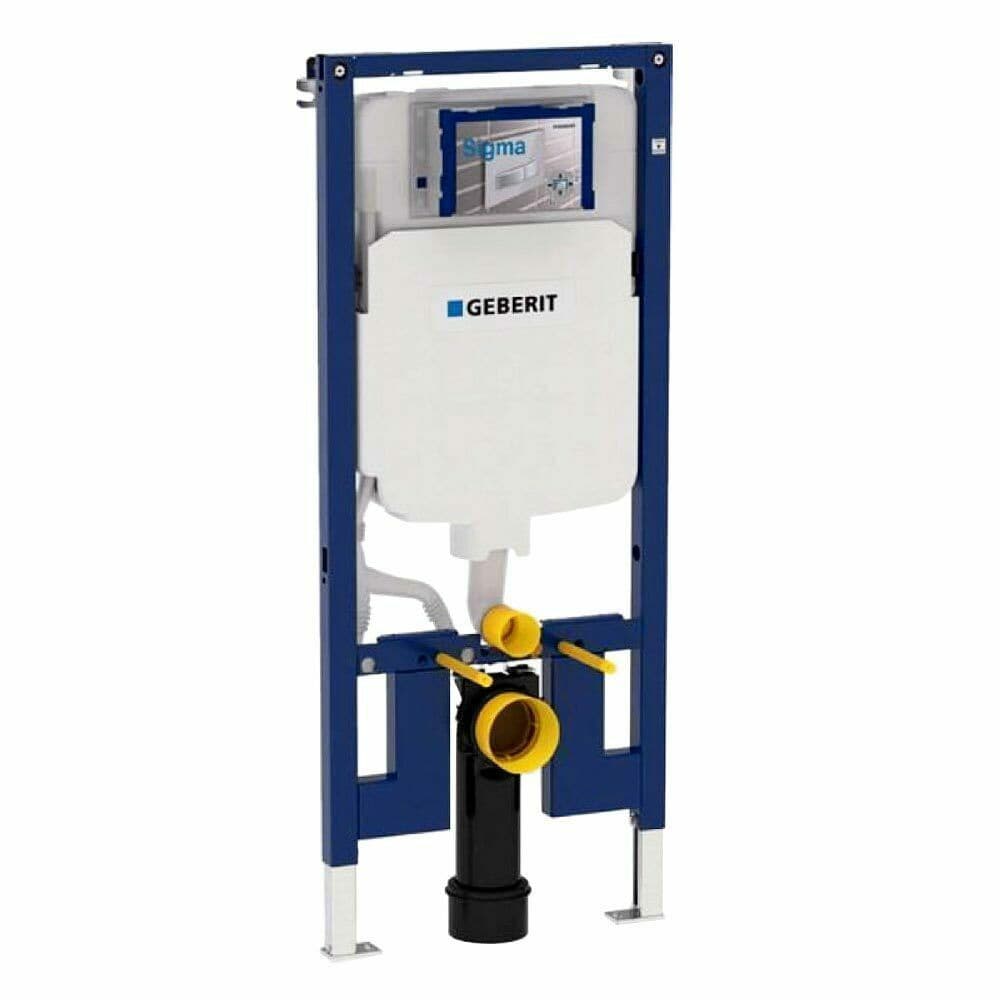

1. GEBERIT FRAME UP720 SLIM 8cm WITH CISTERN BRACKETS AND WC BEND

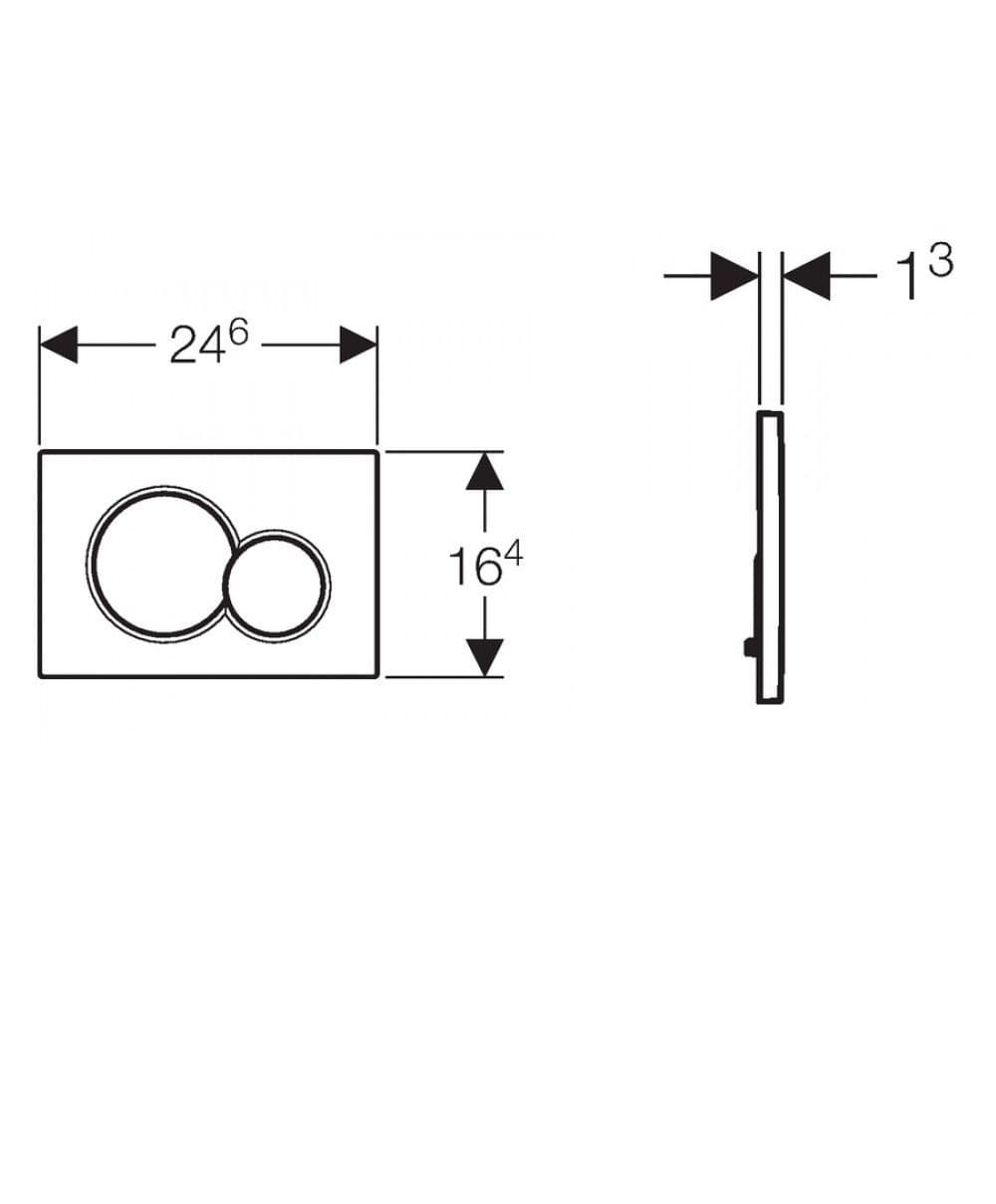

2. GEBERIT DUAL FLUSH PLATE SIGMA 01 IN JET BLACK

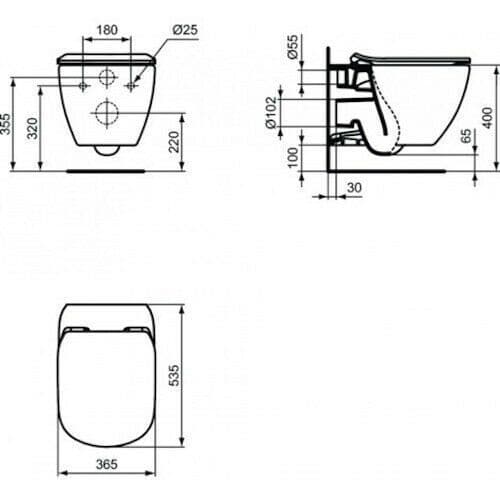

3. IDEAL STANDARD TESI WALL HUNG TOILET WITH AQUABLADE TECHNOLOGY AND IDEAL STANDARD TESI SLIM SOFT CLOSING SEAT
***

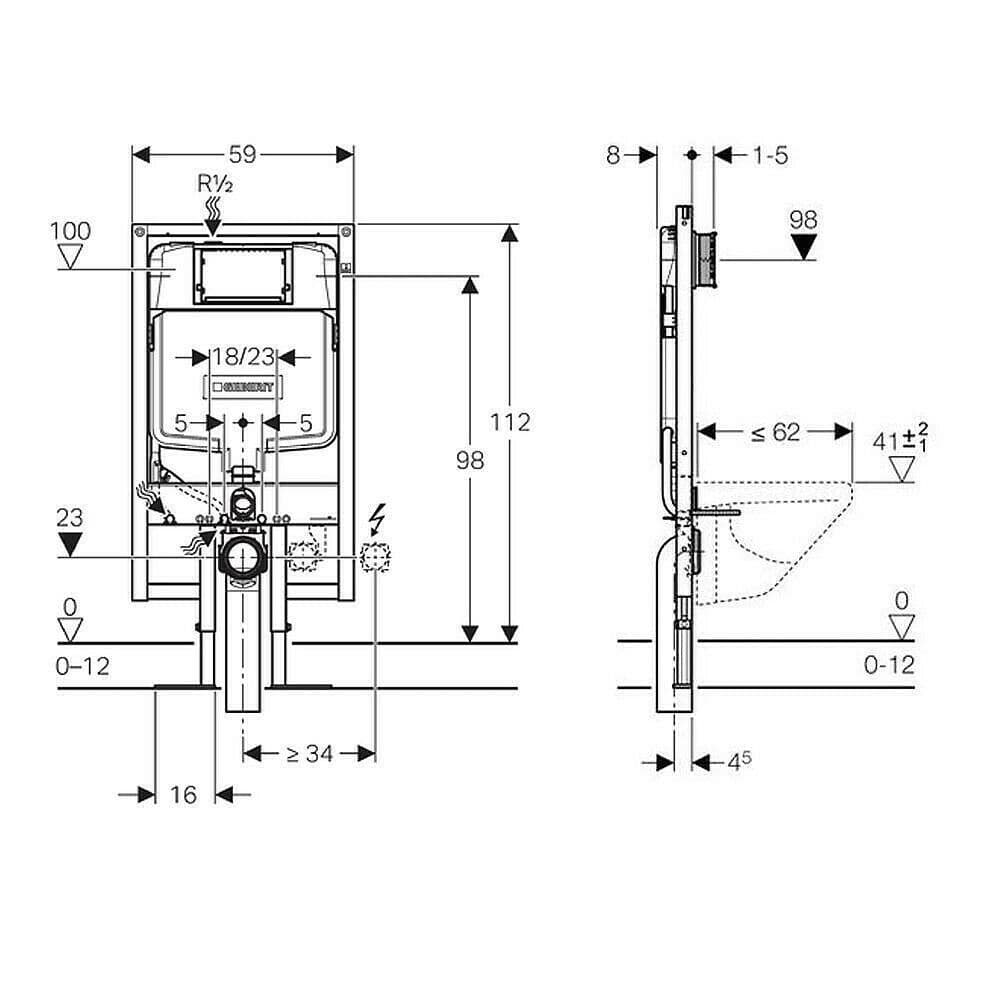

FURTHER DETAILS ABOUT THE PRODUCTS DIMENSIONS OF THE FRAME:
HEIGHT: 114cm, WIDTH: 50cm, DEPTH: 8cm
10 YEARS MANUFACTURER'S WARRANTY
Product Specifics:
· For drywall construction
· For installation in part or room height pre wall installations
· For installation in a load-bearing stud wall
· For wall-hung WC with connection dimensions in accordance with EN 33:2011
· Suitable for wall-hung WCs with projection up to 70cm
· For single flush, or dual flush
· For floor construction 0-20cm
· For installation of a wall-hung WC with bolt fixings set at 180 or 230mm centres
· For connecting Geberit AquaClean
· Any wall boarding must be fixed tight against the face of the DuoFix frame and screwed directly to the frame
· Installation depth of 80-110mm drainage dependant (side drainage increase installation depth)
· Frame Height 1140mm
· Adjustable flushing volume
· Large flush 7.5, 6, 4.5 litre
· Small flush 4,3 litre
· Factor set flush 6 and 3 litre
· Suitable for all Sigma flush actuation plates (except Sigma 40)
· Sound-absorbing actuator rods, tool free, fast adjustment
· Suitable for Type01 and Type10 flush buttons
· M12 threaded rods for ceramic fastening
· Front actuation only
· Self-supporting frame, powder coated
· Frame with Ø 9mm fixing holes for fastening into timber frame construction
· Frame suitable for ceramic WC appliances with small contact surface (with pressure-resistant wall covering)
· Leg support, zinc-plated, infinitely variable in height
· Non-slip leg supports
· Foot plate depth suitable for installation in U-profiles UW 50 and Geberit Duofix system rails
· Connection bend can be installed without tools at different depths
· Connection bend can be mounted vertically with front flush
· Waste connector bend, extended, for connection in floor
· Fastening for connection bend, sound-absorbing
· Concealed cistern with front actuation, fully insulated against condensation
· Cistern fulfils standard requirements in accordance with EN 14055, Class II
· Immediate post flush possible with factory setting
· Tool-free installation and maintenance work on concealed cistern
· Water supply connection at the top, offset to left side
· Universal water supply connection compatible with Mepla Fix, can be mounted and operated without tools.
· Connection hose to angle stop valve can be fastened without tools
· Protection cover box for service opening protects against moisture and dirt
· Protection box for service opening can be adjusted to length without tools, suitable for surface-even actuator plates
· Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
· Cistern can be operated with recycled water (rainwater) provided it is passed through a filter system.
Technical Data :
Flow Pressure 10-1000 kPa
Maximum Operating temperature, water 25oC
Flush Volume, Factory setting 5.8 and 3 litre
