GROHE Rapid SL WC Frame with Flush Plate and Wall Hung SoftClosing Rimless Toilet

Manufacturer product numbers: 38528001 + 3855800M + 38505000 / 38765000

GROHE Rapid SL Product Description:

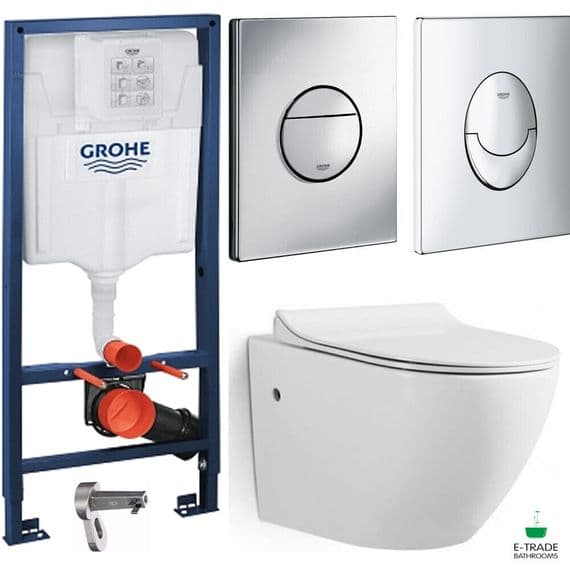

This 3 in 1 set is designed to be used with a wall hung toilet

It is supplied complete including:
Rapid SL Mounting Element with a concealed cistern

Rapid SL Front Wall Brackets

Choice of 2 Flush Plates: Nova Cosmopolitan or Skate Cosmopolitan

Frame product info
Powder coated steel frame that is self-supporting
Supports wall hung toilets with hole centers of 180 mm or 230 mm
Comes completely pre-assembled for dry-cladding
Comes with small maintenance access
Suitable for on-the-wall installations or studded walls
1.13m installation height
Concealed cistern
Insulated against condensation that also helps reduce noise
Pneumatic discharge valve offering 3 modes of operation: dual flush OR start/stop OR non-interruptible
1/2" water supply connection including integrated angle valve and push fit flexible hose union
No tools required for the installation of the inspection shaft including protection during construction phase
Suitable for vertical or horizontal flush plates
6 and 3 litres ex factory adjusted concealed cistern
Water supply from left/right or back

Overall dimensions: Width 500 mm x Depth 145 mm (adjustable) x Height 1130 mm

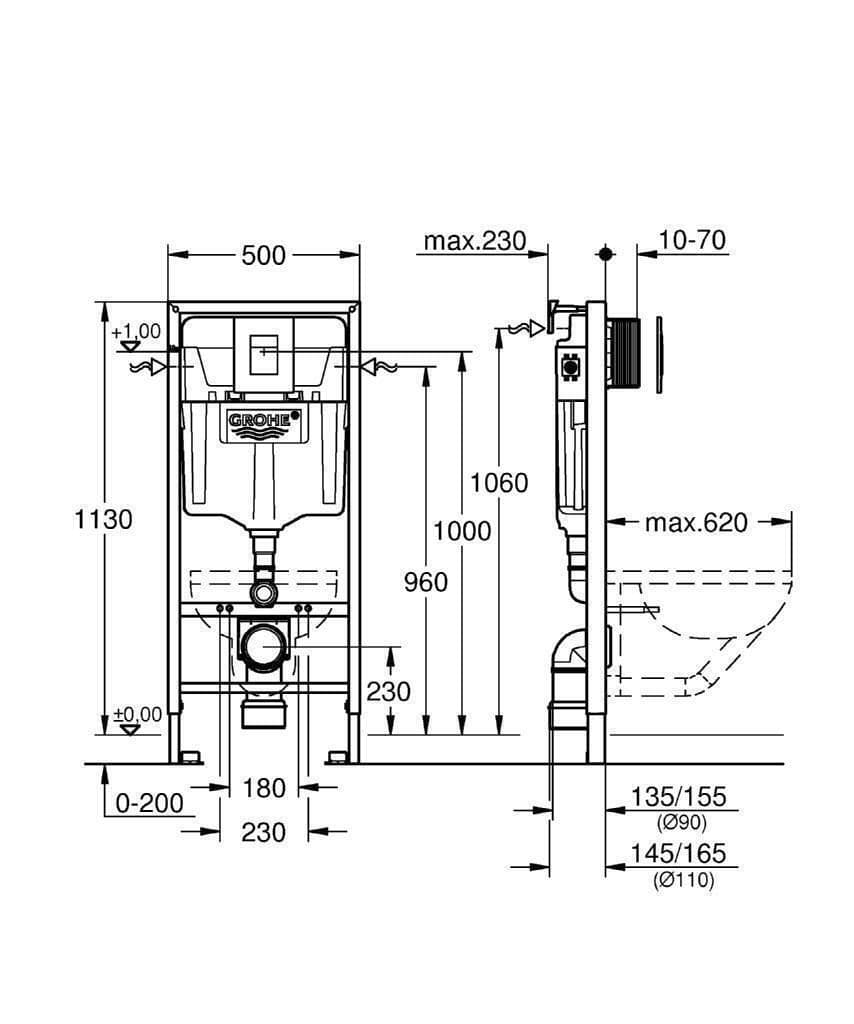

For exact and adjustable dimensions - please refer to the technical diagram
TUV approved - German standards
5 year manufacturer's warranty

Rapid SL Front Wall Brackets 3855800M
For against-the-wall installations
For fixing the elements at the brick-wall or in front of the studded wall
Steady vertical adjustment from 130 - 230 mm (Depth)
2 pieces (pair)


About the Flush Plates:
Skate Air 38505000
Made from ABS plastic
Durable ultra smooth chrome finish
GROHE StarLight® coating  makes the surface easy to clean
Meant to be installed vertically (cannot be installed horizontally)
For dual flush or start & stop actuation
For pneumatic discharge valve AV1
Width 156 mm x Height 197 mm x Depth 18 mm

OR

Nova Cosmopolitan 38765000
Made from ABS plastic
Durable ultra smooth chrome finish
GROHE StarLight® coating  makes the surface easy to clean
Can be installed vertically or horizontally
For dual flush or start & stop actuation
For pneumatic discharge valve AV1
Width 156 mm x Height 197 mm x Depth 15 mm

Wall hung Toilet Description
Wall hung rimless WC made of quality ceramics
Compact Size - only 48cm projection from the wall
Soft closing seat with quick release hinges for easy cleaning
Seat made of Duroplast - top material used for best WC seats

Why choose a wall hung toilet?
Makes cleaning very easy
Gives a more open and spacious feel to the bathroom
