GROHE RAPID SL Frame with Skate Cosmopolitan Flush Plate inBrilliant Gold and Rimless Soft Closing WC with Decorative GoldenStripe
Manufacturer product numbers = 38528 + 38732GL0 + 38558 + M203GLD + M203GST

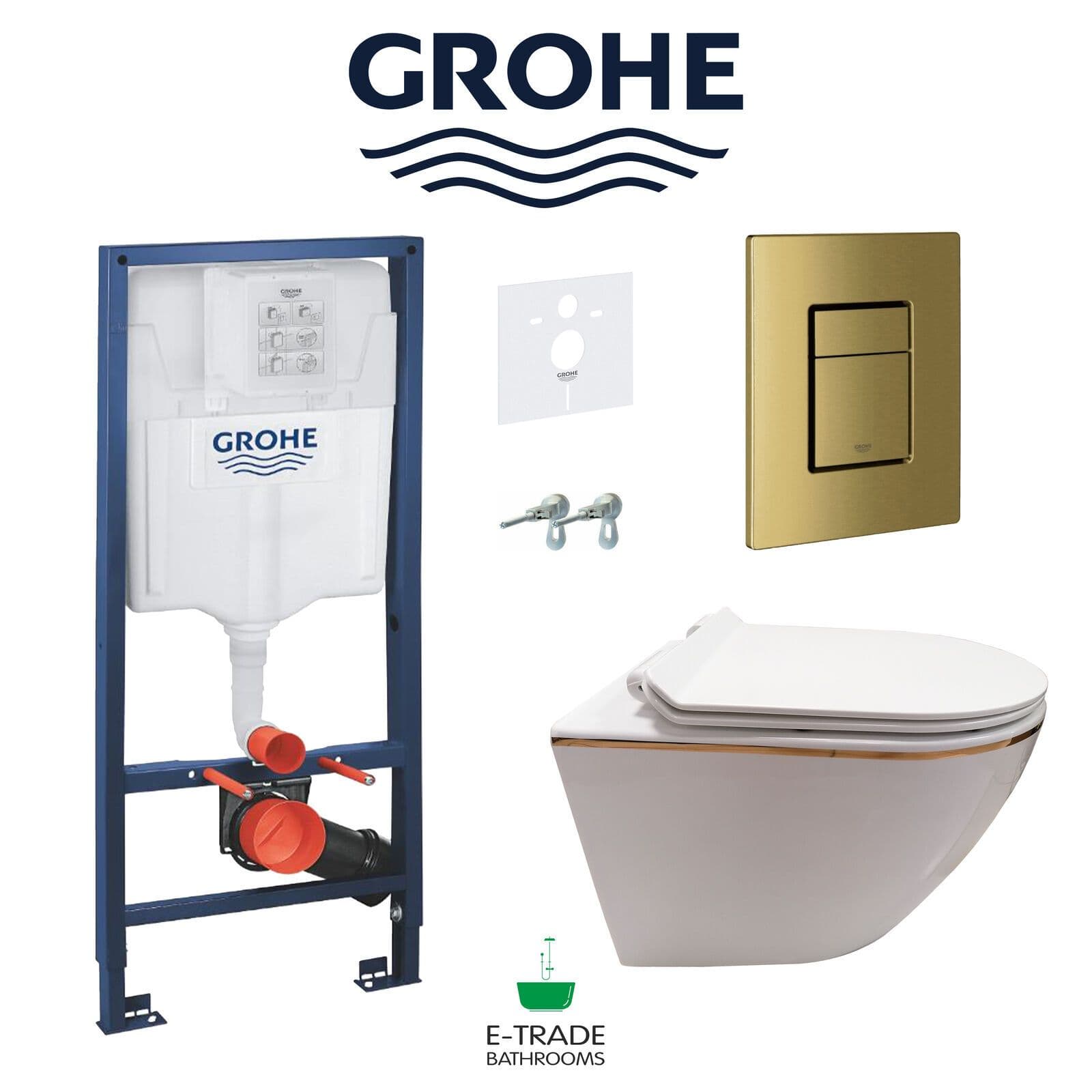

THE SET INCLUDES:
1 x GROHE RAPID SL TOILET CISTERN FRAME, MPN: 38528000
1 x GROHE SKATE COSMOPOLITAN FLUSH PLATE IN BRILLIANT GOLD, MPN: 38723GL0
1 x GROHE FIXING WALL BRACKETS (set of 2), MPN: 38558000
1 x GROHE NOISE INSULATION PAD
1 x Wall hung rimless soft closing toilet (NOT GROHE) with Decorative Golden Stripe

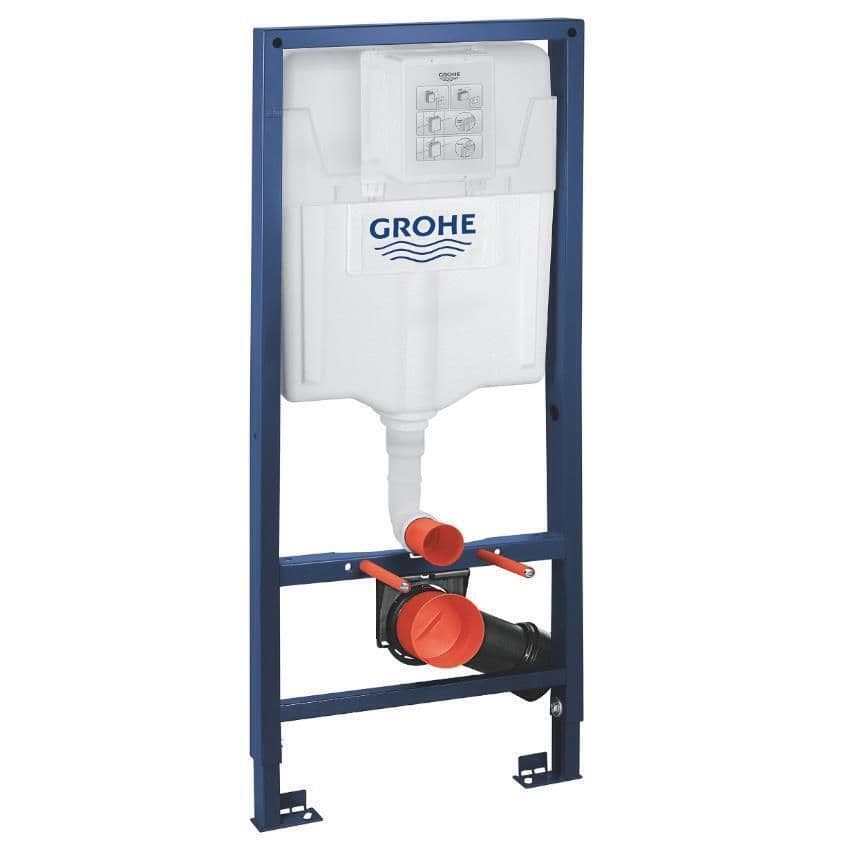

GROHE RAPID SL TOILET CISTERN FRAME Description:
Simple and hassle-free installation: Frame and cistern come completely pre-assembled with fixed connections.

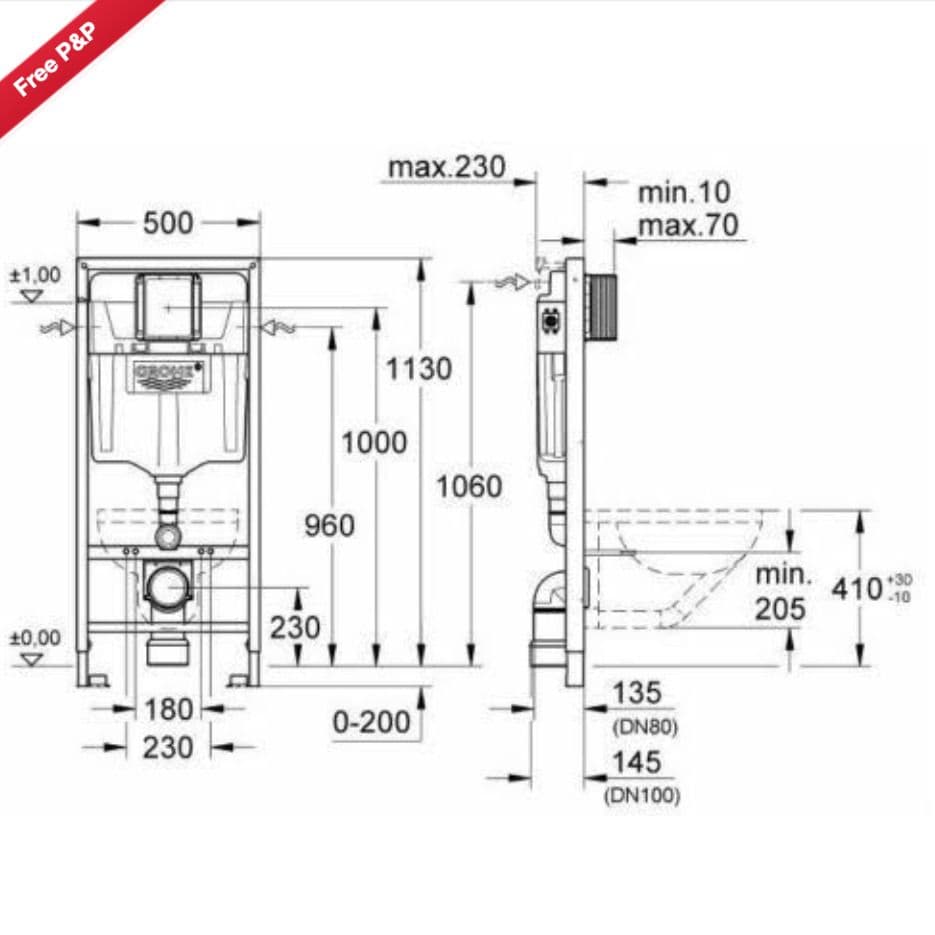

Rapid SL 1.13m WC Frame:
- Concealed installation: In-wall or in-front-of-the-wall (on-the-wall or studded walls).
- Can be used inside full- and mid-height partition walls.
- Self-supporting for dry-cladded walls.
- Frame load bearing capacity: Up to 400 kg.
- Installation height: 1.13 metre.
- Supplied with 2 x WC pan fixing bolts, distance 180/230mm.
- Outlet bend: Ø80mm, complete with depth adjustable Ø80-100mm reducer.
- Material: Powder coated steel frame.
Concealed Cistern GD2, 6-9 ltrs:
- Small access opening for maintenance.
- Shortable inspection shaft includes protection during construction phase.
- Front actuation.
- Insulated against condensation.
- Pneumatic flush valve offers 3 modes of operation: Single non-interruptible flush (6 ltrs), dual flush (factory pre-set 6/3 ltrs, can be adjusted) or start/stop actuation (interrupted flush).
- Water supply from left/right or back.
- Complete with 1/2'' water supply connection including integrated angle valve and push-fit flexible hose union.
- Inlet and outlet connecting set supplied.

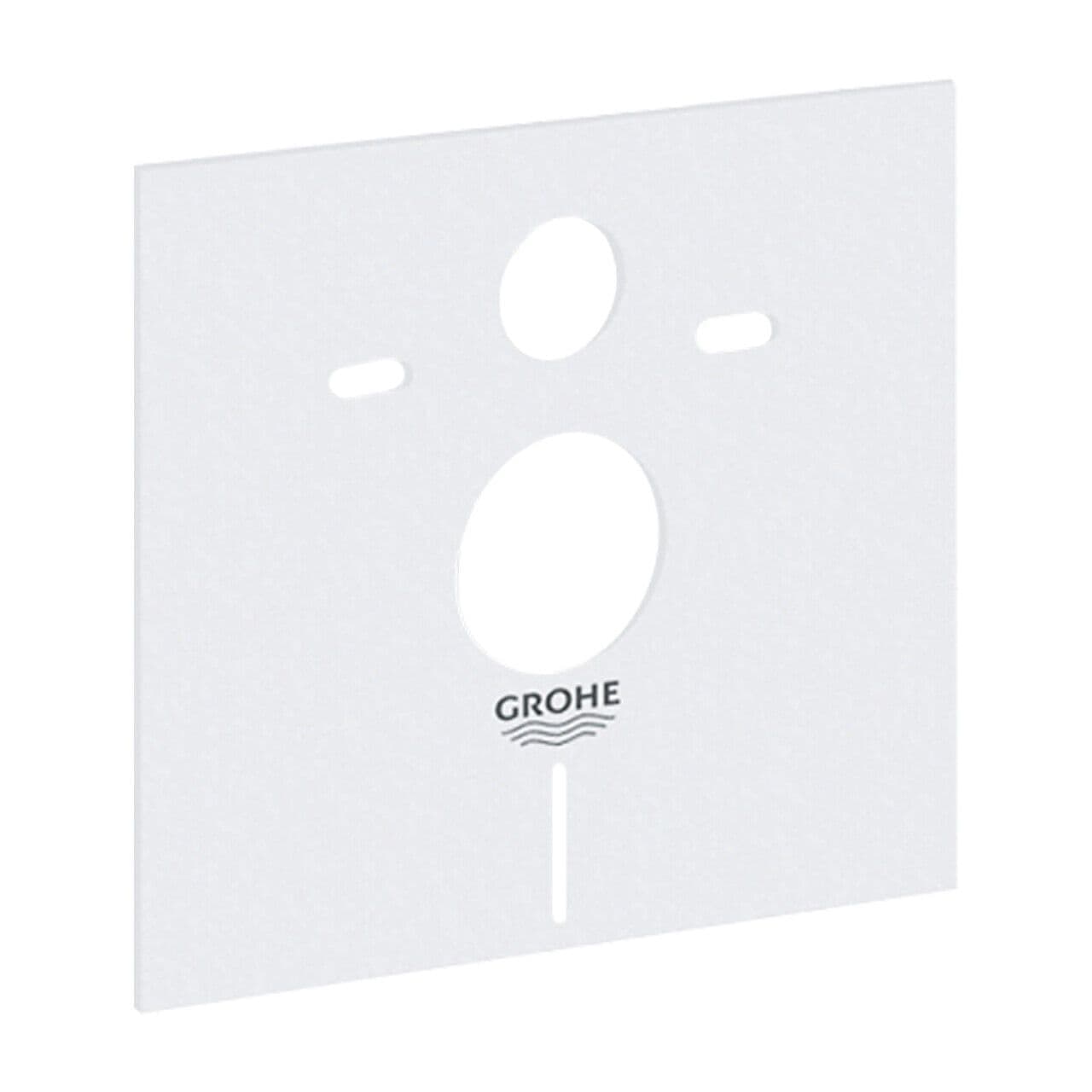

WC Set for noise protection/sound insulation:
- For installations with wall mounted WC.
- Dimensions, mm: 420 x 420.

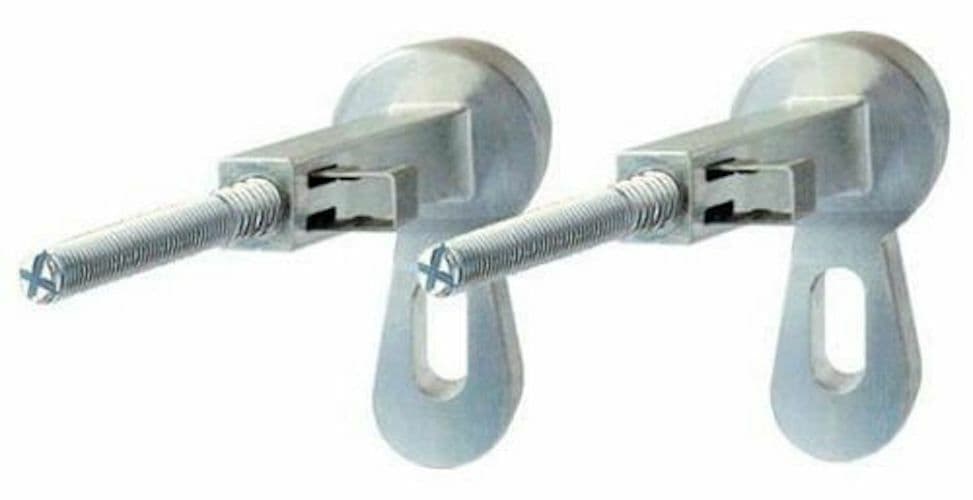

Pair of front wall brackets.

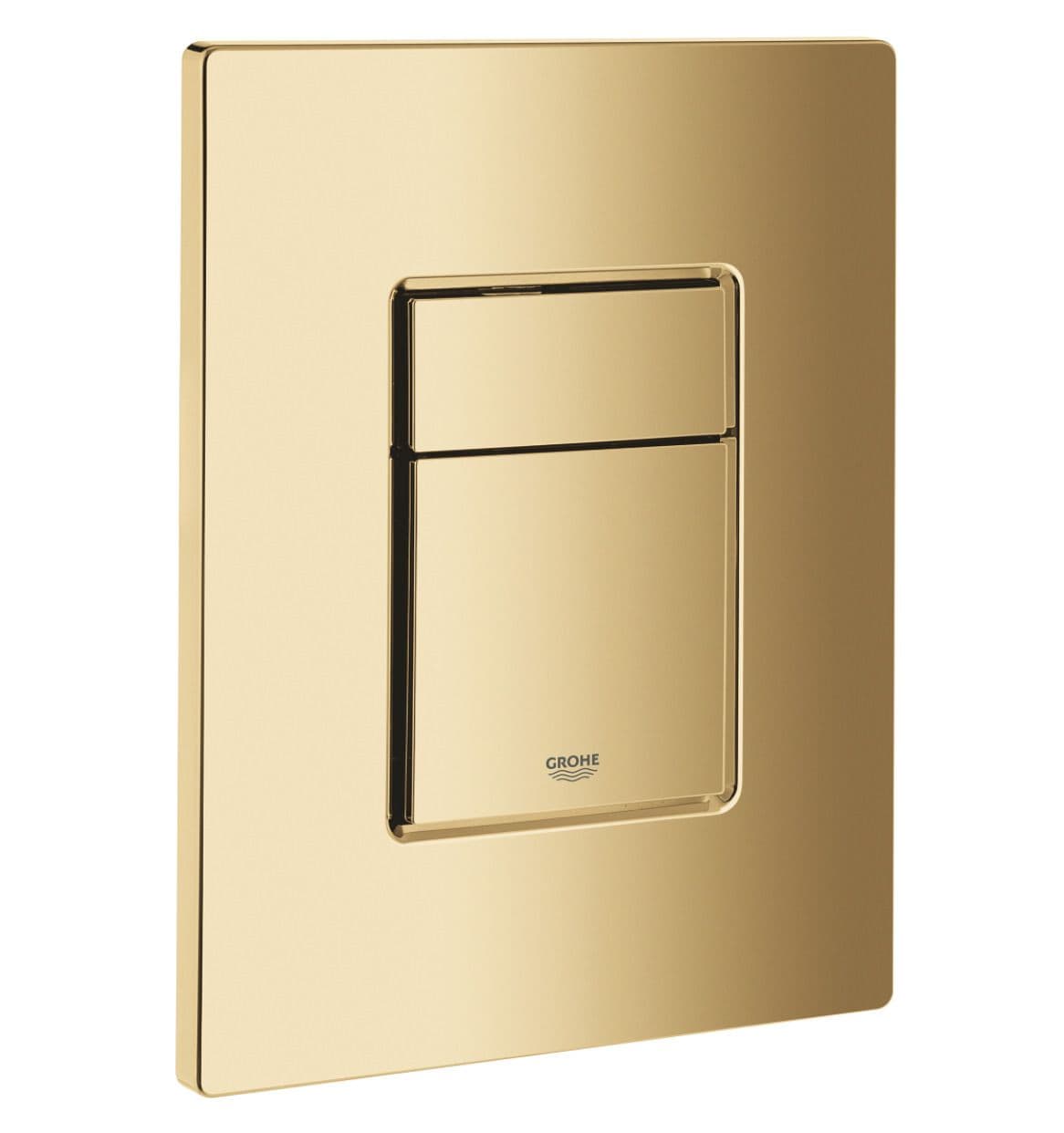

GROHE SKATE COSMOPOLITAN FLUSH PLATE IN BRILLIANT GOLD, MPN: 38723GL0 Description:
The Grohe Even flush plate brings timeless, linear design together with economical dual flush and start/stop actuation to the toilet. A stylish eye-catcher in any bathroom!
Combine your matching concealed cistern from Grohe with the linear, flat Even flush plate. Practical: the design is suitable for both vertical and horizontal installation. You can choose between large and small amounts of water thanks to two differently sized push buttons. Save even more water with the start and stop actuation: This simply interrupts the water flow by pressing again. Get to know proven Grohe quality now!
Product features
for dual flush and start/stop operation
for front actuation
for vertical and horizontal installation
for pneumatic discharge valve AV1
save water with maximum comfort (GROHE EcoJoy®)

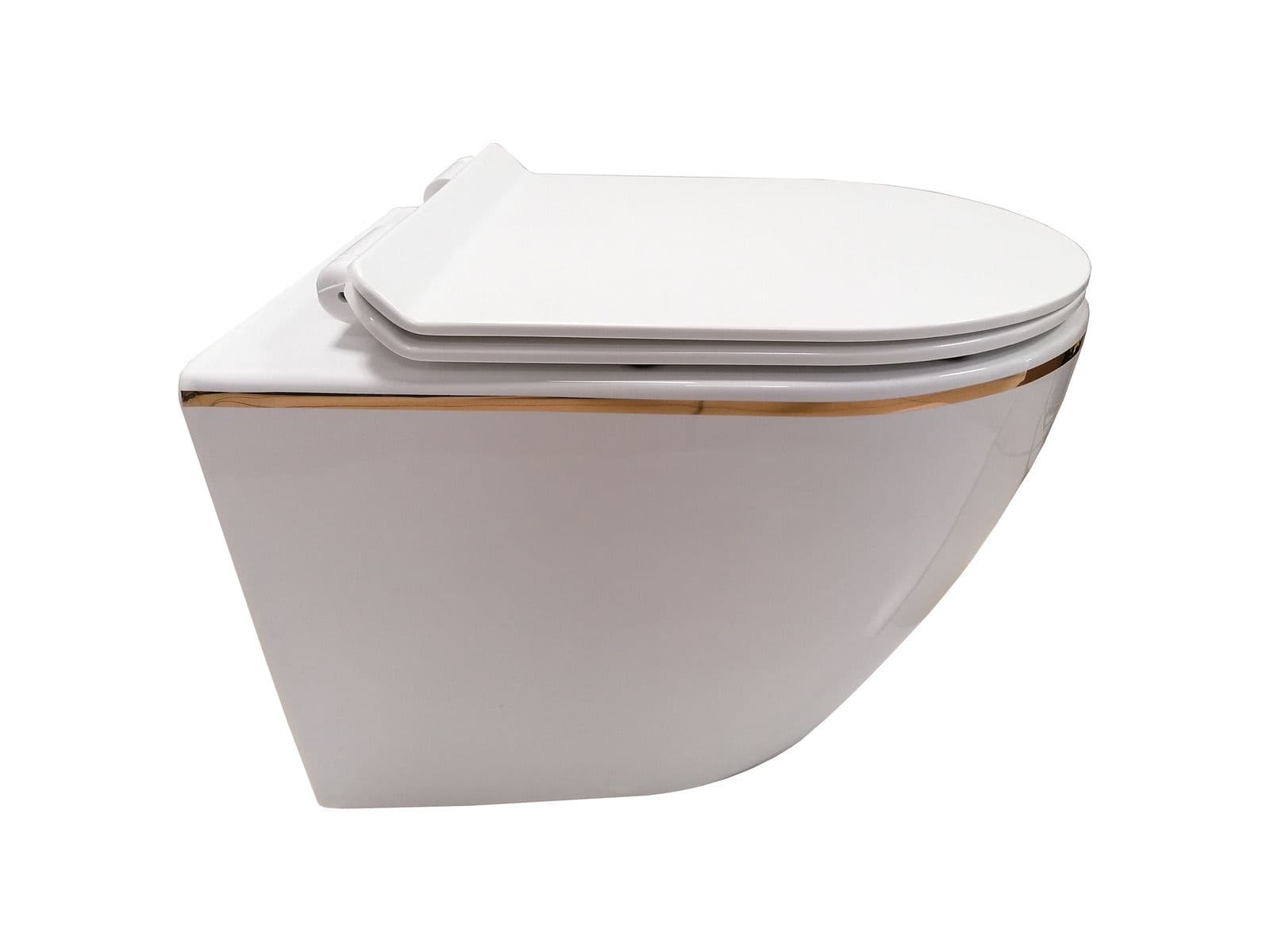

Wall Hung Rimless WC with Soft CLosing Seat and Decorative Gold Stripe Description:
WC in Compact Size (only 48cm projection from the wall)
Soft Closing seat with quick release hinges for easy cleaning
Seat made of Duroplast, a top quality material that best WC seats are made of
