GROHE Rapid SL Toilet Frame + Brackets + Noise Insulation Pads + Skate Air Matt Black Flush Plate + Square-Shaped Wall Hung Rimless WC with Soft Closing Seat

Manufacturer product numbers = 38528 + 38558 + TEO/0018/2364 + 38964KF0

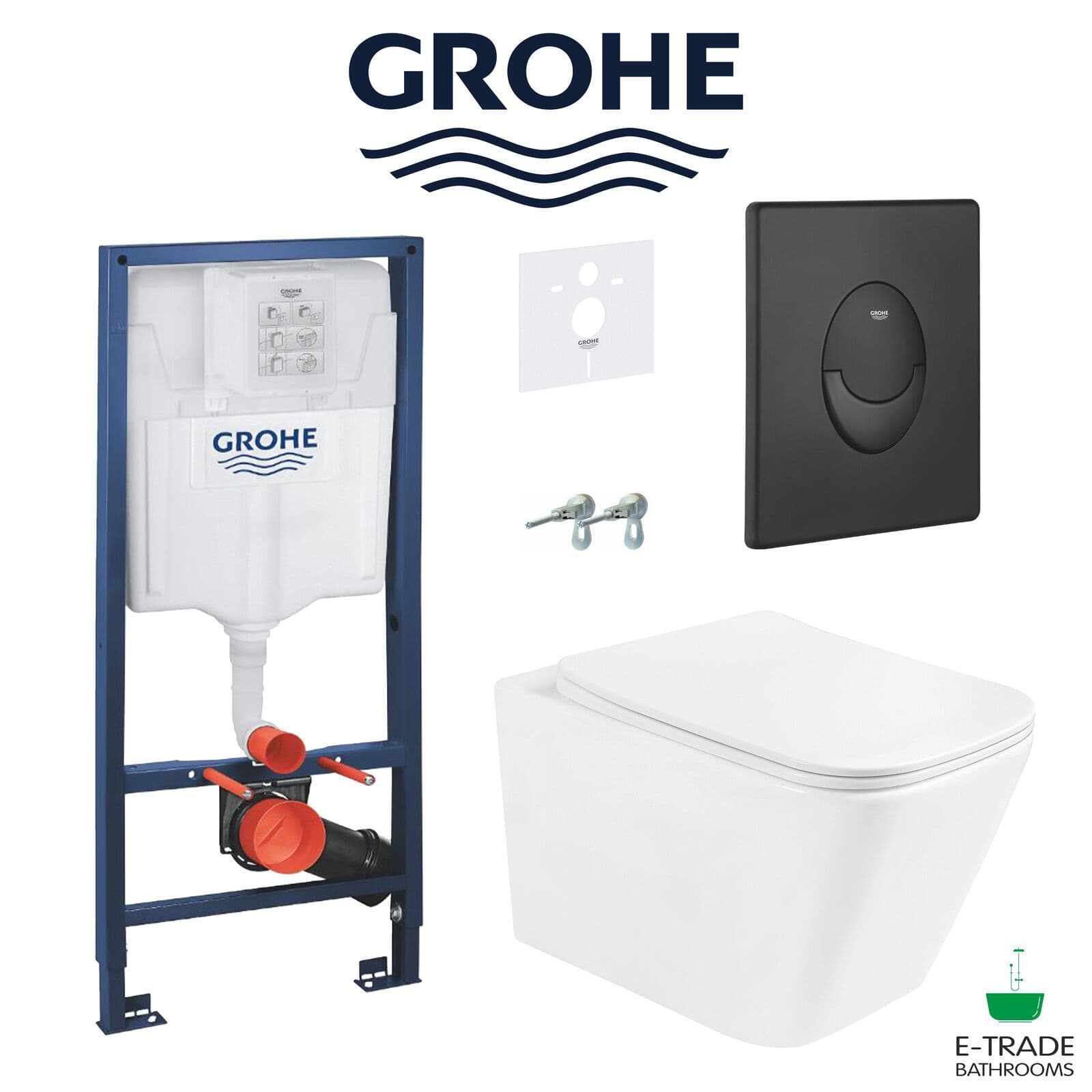

  SET INCLUDES:
1 x GROHE  RAPID SL FRESH 38827000 TOILET CISTERN FRAME
1 x SKATE AIR MATT BLACK FLUSH PLATE
1 x FIXING WALL BRACKETS (set of 2)
1 x GROHE SET FOR NOISE PROTECTION FOR WC
1 x SQUARE-SHAPED WALL HUNG RIMLESS WC WITH SOFT CLOSING SEAT

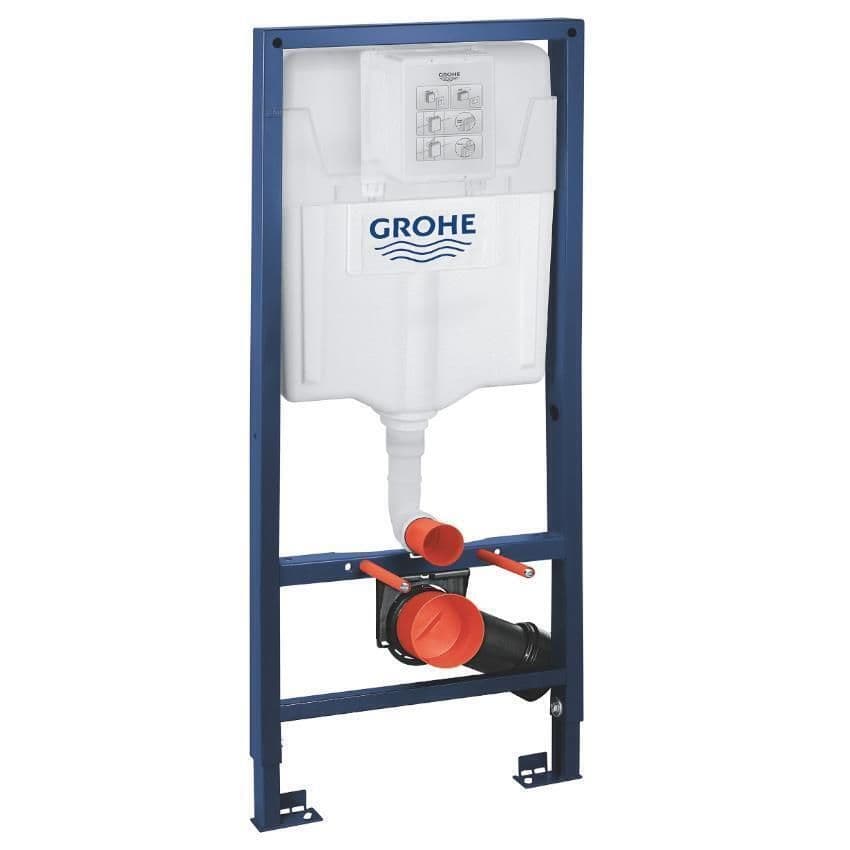

1.GROHE RAPID SL 1.13M WALL HUNG WC FRAME SET:

Simple and hassle-free installation: Frame and cistern come completely pre-assembled with fixed connections.

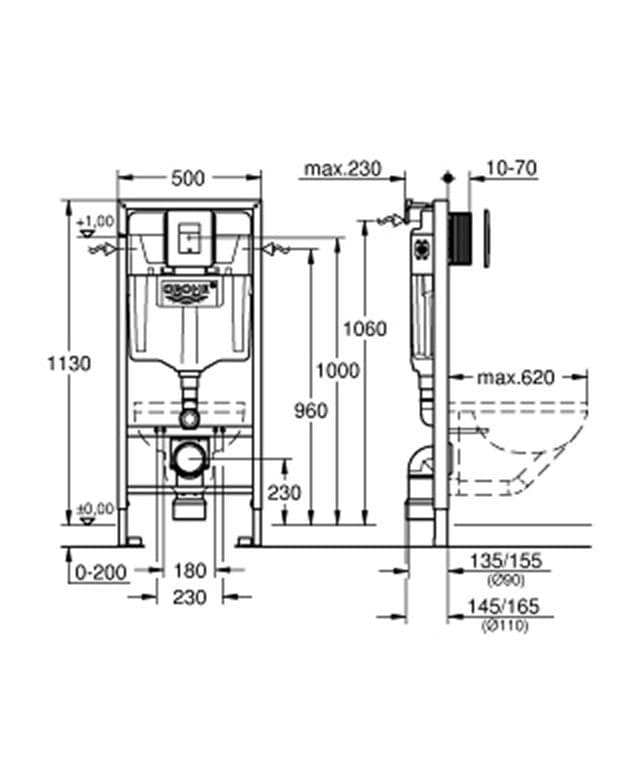

Rapid SL 1.13m WC Frame:
- Concealed installation: In-wall or in-front-of-the-wall (on-the-wall or studded walls).
- Can be used inside full- and mid-height partition walls.
- Self-supporting for dry-cladded walls.
- Frame load bearing capacity: Up to 400 kg.
- Installation height: 1.13 metre.
- Supplied with 2 x WC pan fixing bolts, distance 180/230mm.
- Outlet bend: Ø80mm, complete with depth adjustable Ø80-100mm reducer.
- Material: Powder coated steel frame.
Concealed Cistern GD2, 6-9 ltrs:
- Small access opening for maintenance.
- Shortable inspection shaft includes protection during construction phase.
- Front actuation.
- Insulated against condensation.
- Pneumatic flush valve offers 3 modes of operation: Single non-interruptible flush (6 ltrs), dual flush (factory pre-set 6/3 ltrs, can be adjusted) or start/stop actuation (interrupted flush).
- Water supply from left/right or back.
- Complete with 1/2'' water supply connection including integrated angle valve and push-fit flexible hose union.
- Inlet and outlet connecting set supplied.

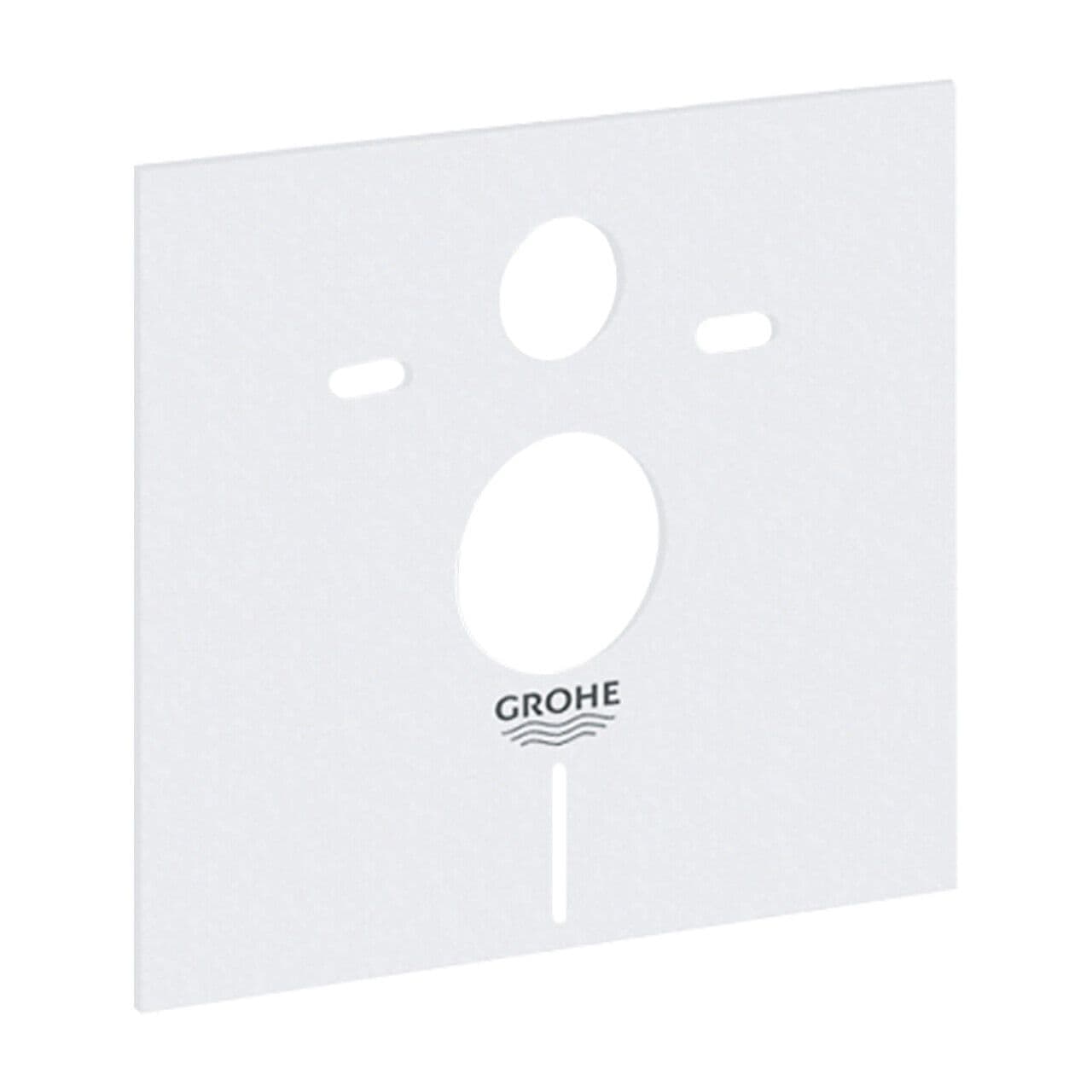

WC Set for noise protection/sound insulation:
- For installations with wall mounted WC.
- Dimensions, mm: 420 x 420.
Pair of front wall brackets.

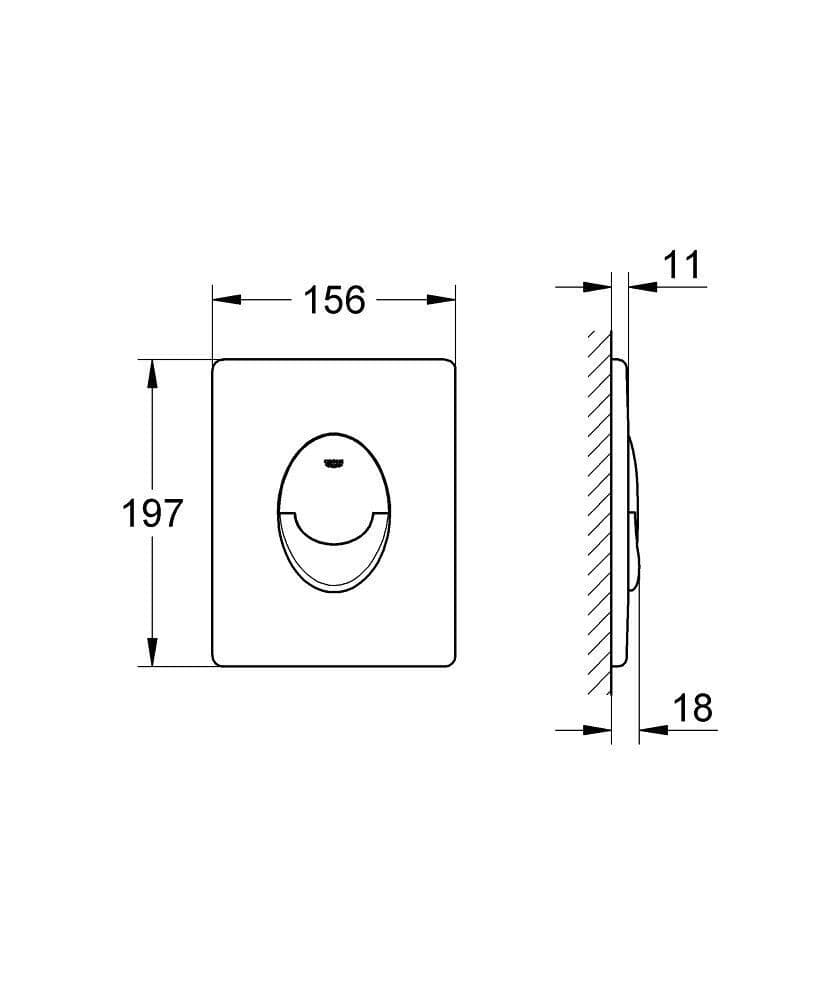

2.SKATE AIR MATT BLACK FLUSH PLATE:
The Skate Cosmopolitan flush plate is made of ABS and finished in GROHE StarLight® easy clean chrome. Thanks to EasyConnect, you can easily mount the plate in no time while the Dual flush and the Start-Stop functions ensure easy operation. With the Dual flush, you can choose between a large or small flush and the Start-Stop technology allows you to prematurely stop the flushing by pressing the button again.

Product Details
Brand: Grohe
Product Code: 38505000
Material: ABS
Height: 197mm
Width: 156mm
For dual flush or start & stop actuation
For vertical installation
Easy to clean thanks to the GROHE StarLight® chrome coating
For pneumatic drop valve AV1

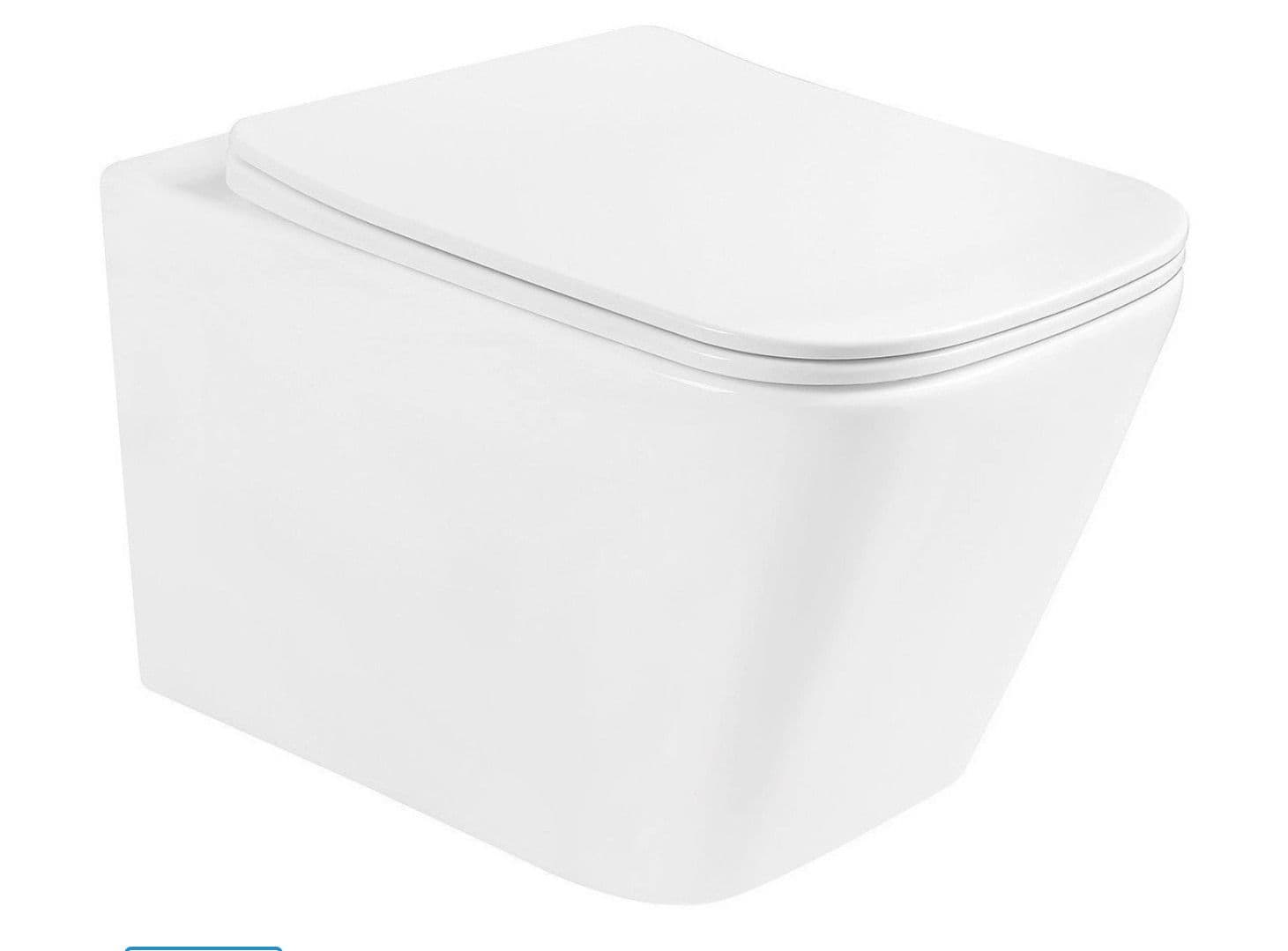

3. SQUARE-SHAPED WALL HUNG RIMLESS WC WITH SOFT CLOSING SEAT


4. SOFT CLOSING SLIM TOILET SEAT:
SOFT CLOSING, EASY RELEASE HINGES
HIGH QUALITY MATERIAL - HARD AND COLD IN TOUCH DUROPLAST
