GROHE WC Frame Villeroy&Boch ARCHITECTURA WALL HUNG TOILET Rimless Soft Closing

Manufacturer product numbers = 38827000 + 5684HR01

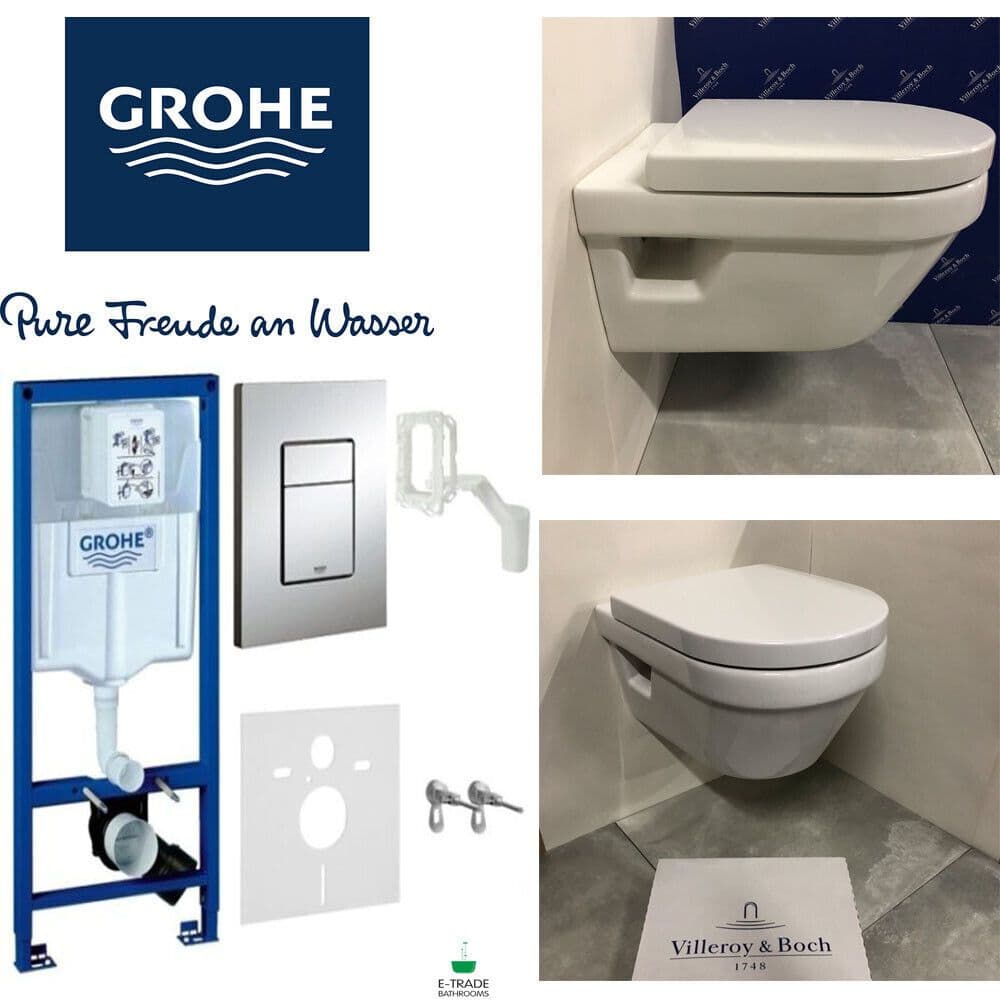

THIS 7 IN1 SET CONSISTS OF:

VILLEROY & BOCH ARCHITECTURA WALL HUNG WC WITH SOFT CLOSING SEAT AND GROHE RAPID SL 5IN1 FRAME (WITH FLUSH PLATE)

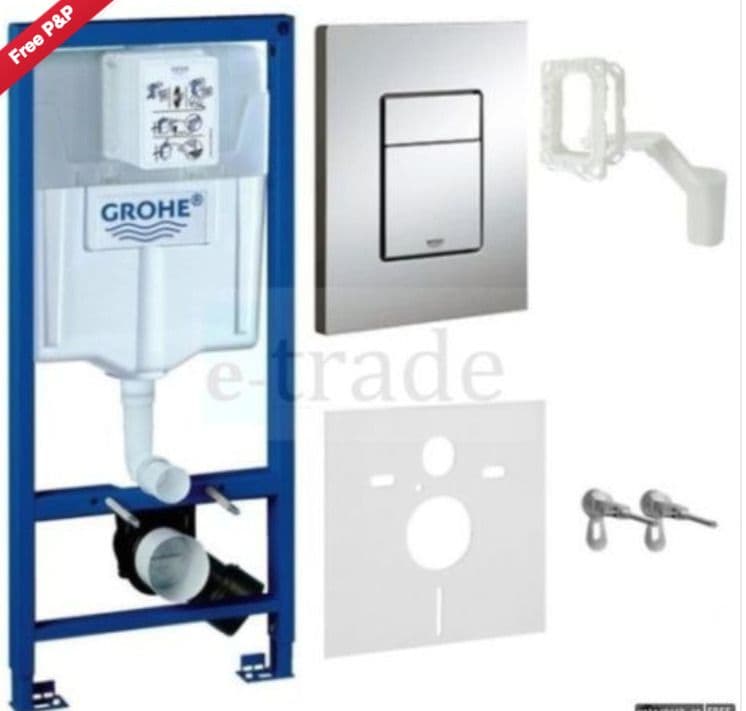

1. GROHE Rapid SL 5-in-1 set for WC

Flushing cistern GD 2 with small maintenance access

1.13 m installation height for on-the-wall installations or studded walls

Powder coated steel frame, self-supporting for dry-cladding, completely pre-assembled with fixed connections for single or rail installation

Quick adjustment, lockable fixing material

TÜV approved

2 WC fixing bolts

Fixing device for ceramic

Distance of fixing bolts 180/230 mm

Outlet bend Ø 80 mm

Depth adjustable

Reducer Ø 80/100 mm

Inlet and outlet connecting set

Flushing cistern GD 2, 6 - 9 l

Adjustment ex factory 6 l and 3 l

Pneumatic discharge valve offering 3 modes of operation:

- Dual flush or start/stop or non-interruptible water supply from left/right or back

Low noise (group I acc. to German Noise Specification)

DIN approved, insulated against condensation

½" water supply connection including integrated angle valve and push fit flexible hose union

No tools required for the installation of the inspection shaft incl. protection during construction phase, for vertical or horizontal use

Accessories for on-the-wall installation with GROHE Fresh retrofit set for chlorine-free tabs only

Including wall plate Skate Cosmopolitan in chrome

For dual flush or start & stop actuation

Vertical or horizontal installation

156 x 197 mm

Made of ABS GROHE

StarLight® chrome finish

WC set for noise protection

***

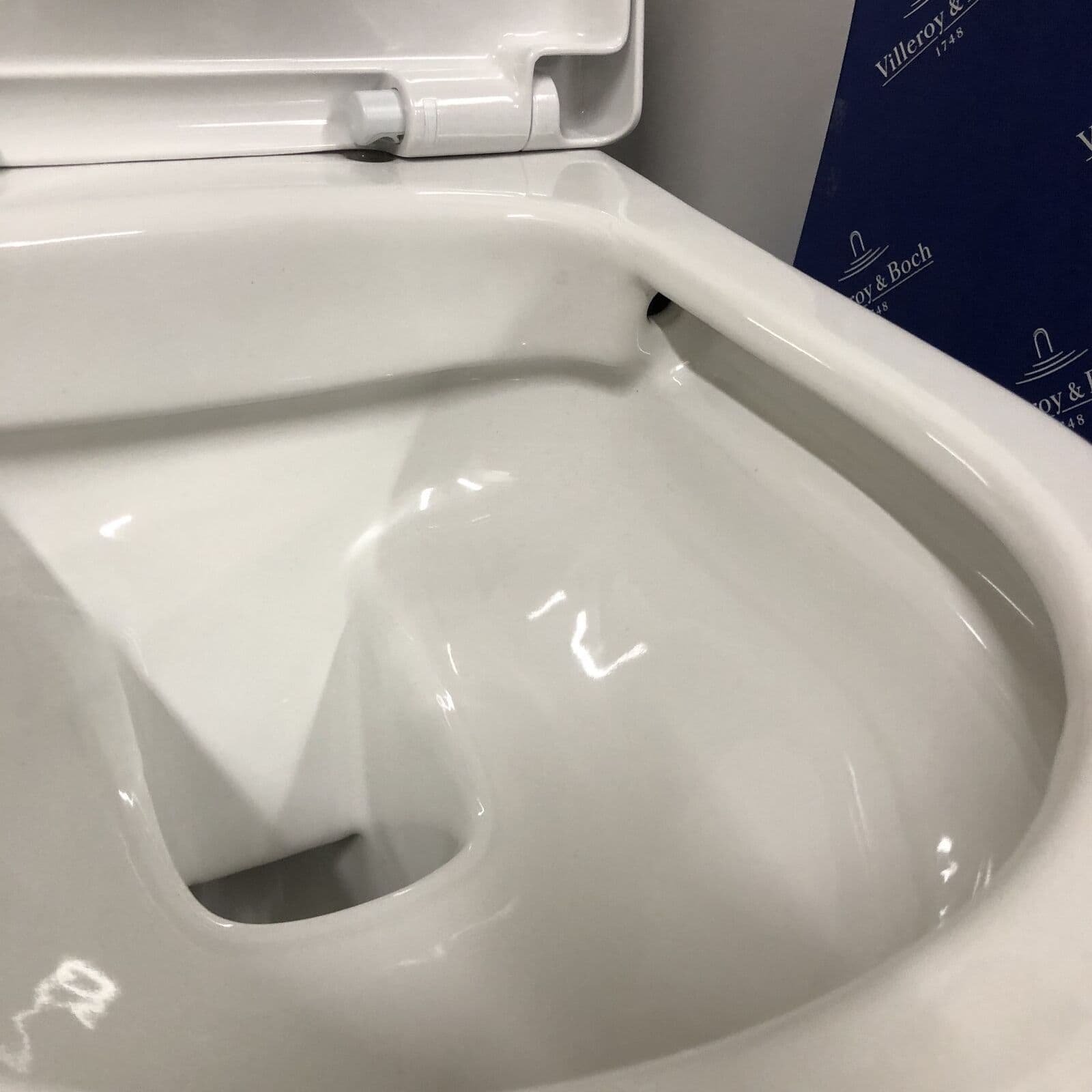

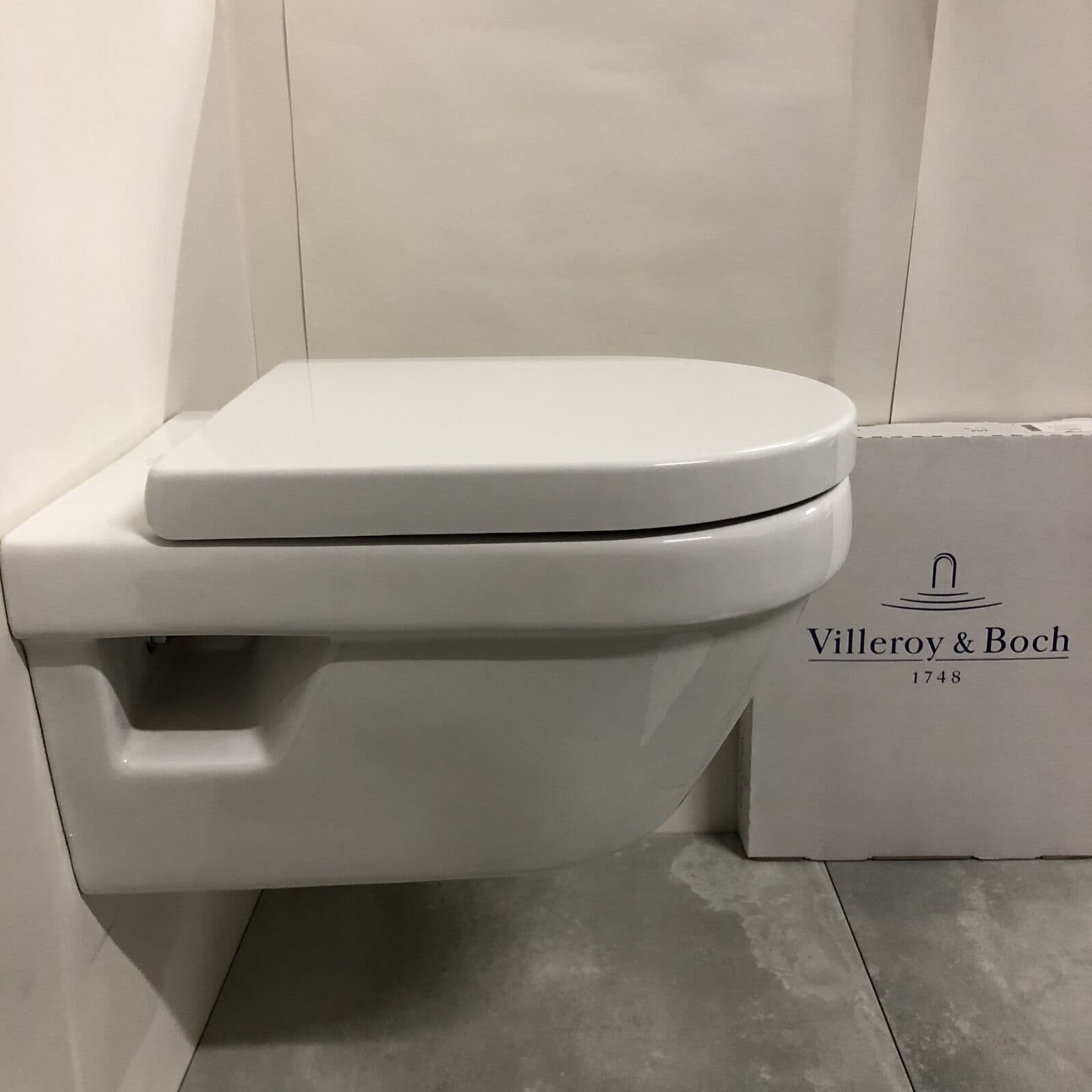

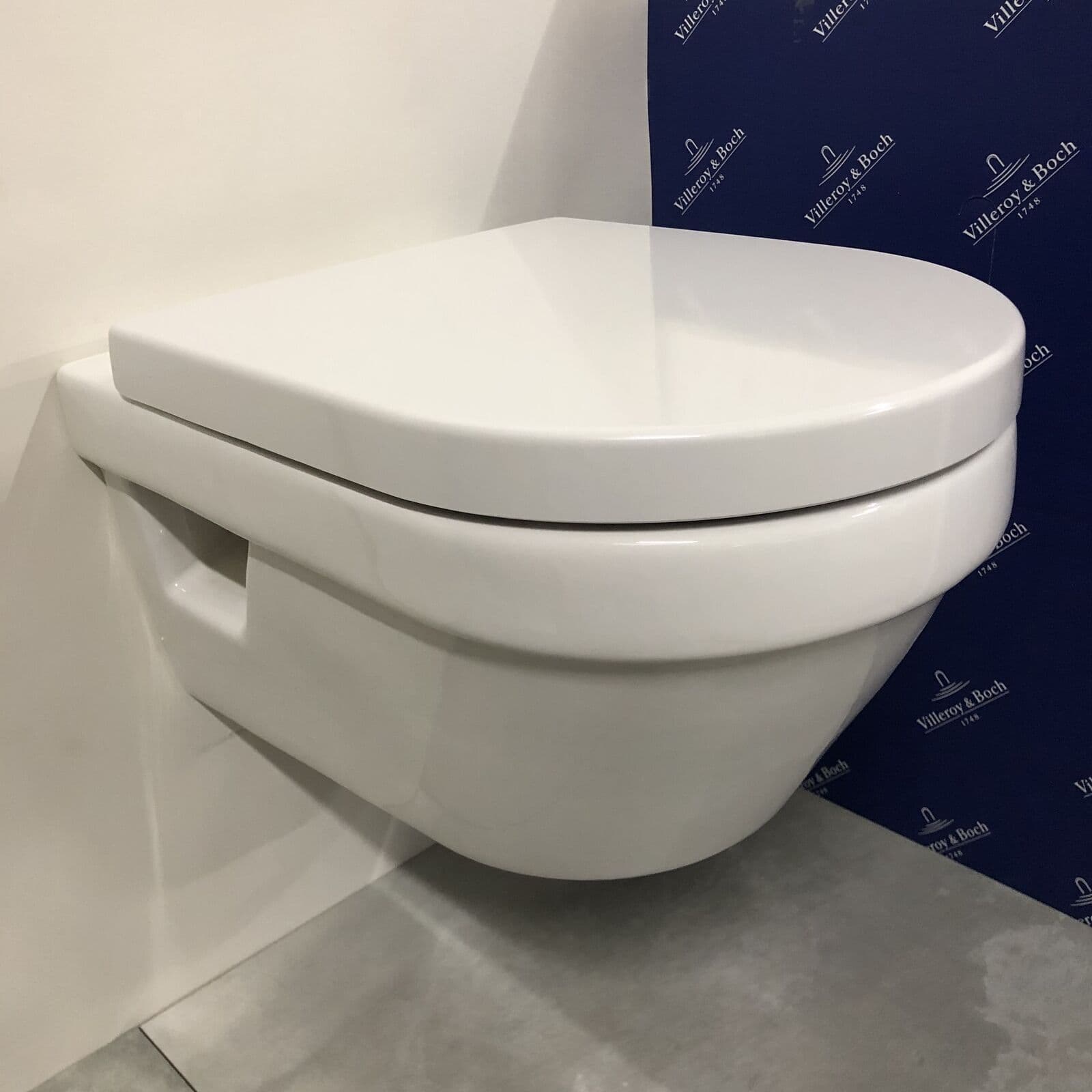

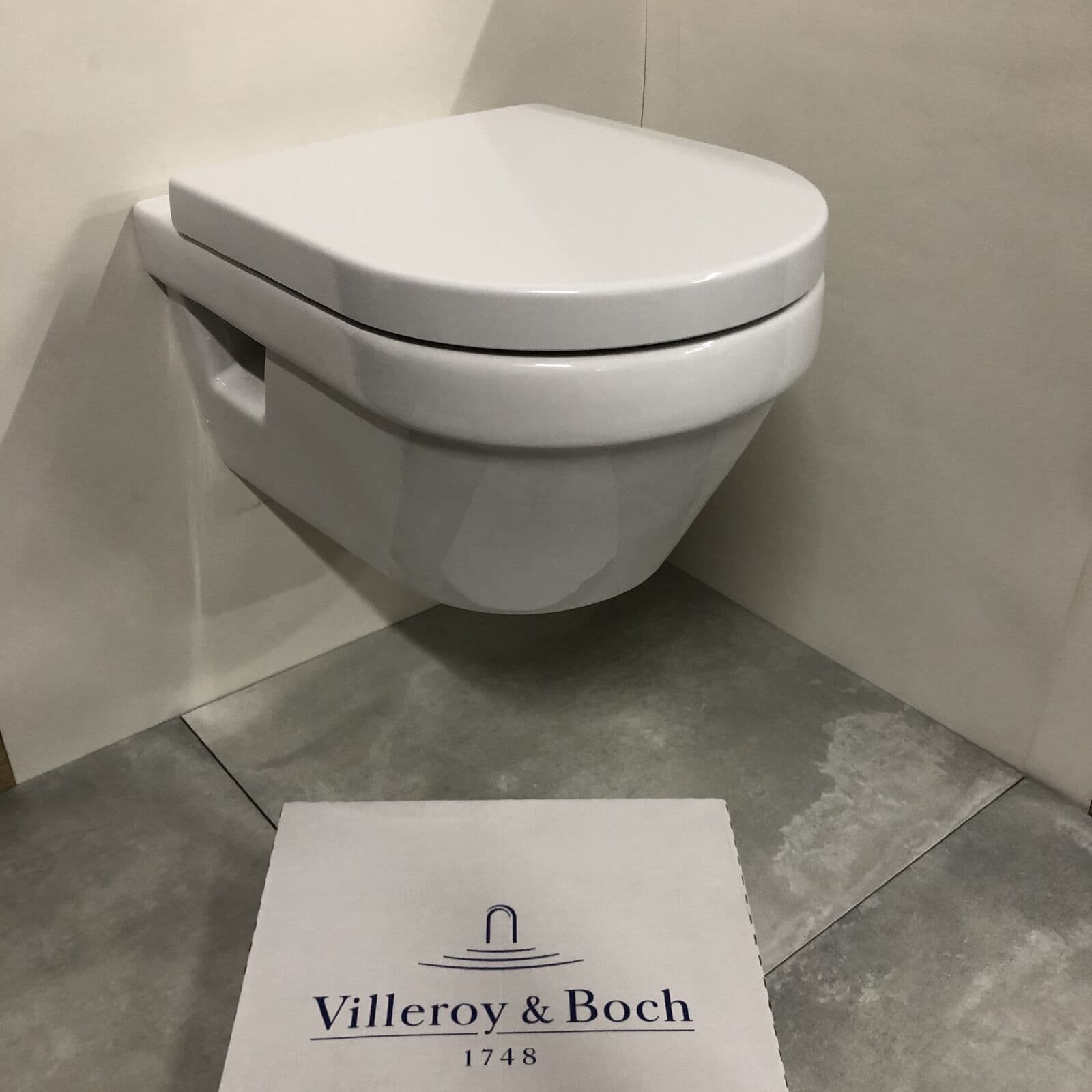

2. VILLEROY & BOCH Architectura Combi Pack Direct Flush RIMLESS WC with Soft Closing Seat
Maufacturer's Product Number 5684HR01

For over 265 years, Villeroy & Boch has impressed us all with their innovative and modern designs, coupled with premium quality, making it one of the leading brands in the sanitary industry, drawing on its long-standing traditions and upholding superior standards for the industry to follow.

Nowadays, for many, the bathroom has become a particularly important, personal place, allowing you to relax and unwind. That is why Villeroy & Boch offers a wide range of products, ranging from classic Lifestyle, from classic styles to modern Lifestyle, thus meeting the taste and needs of each client.


The box includes:

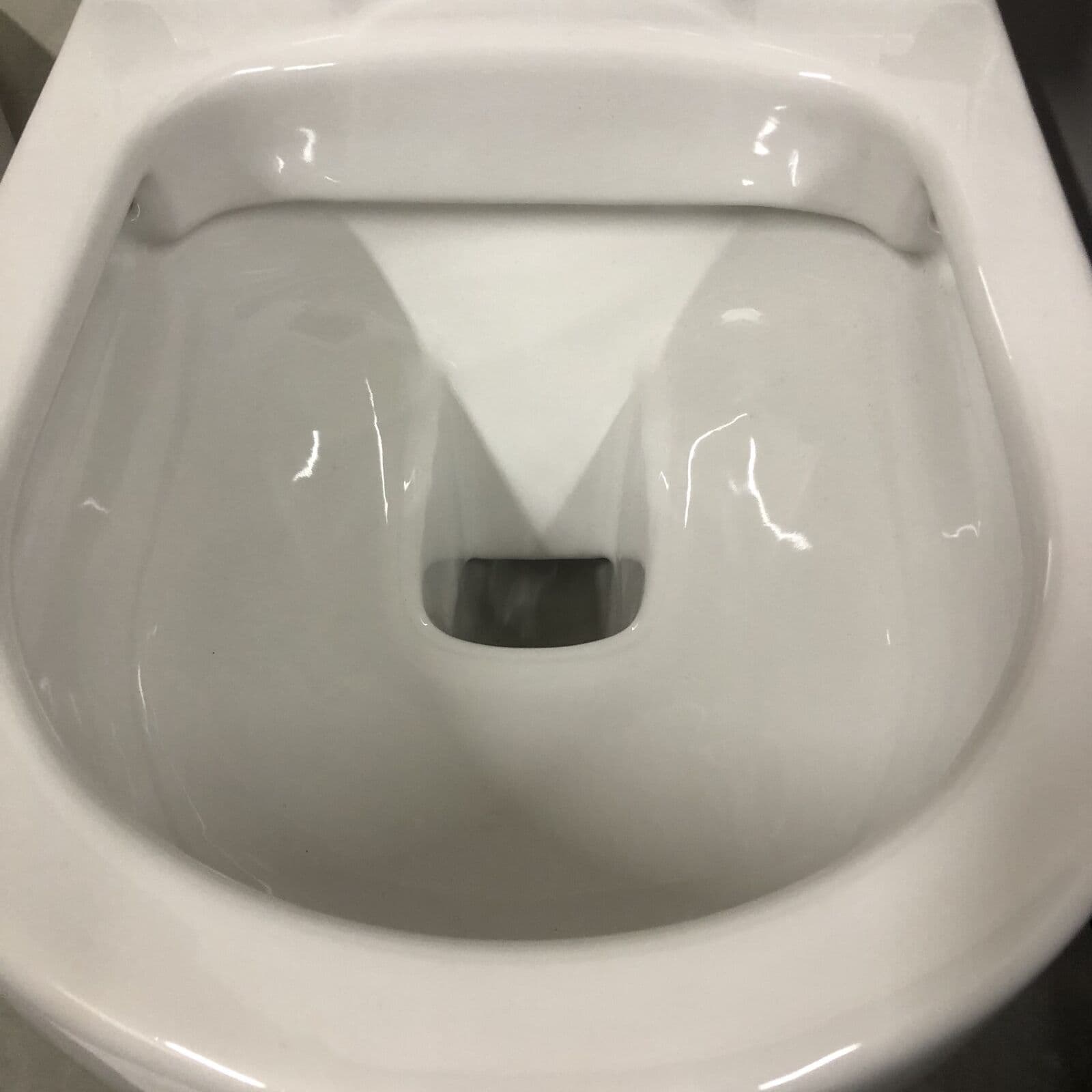

1. Villeroy & Boch Architectura WC Pan 53 x 37cm
Direct Flush
AQUAREDUCT water saving system (3/4.5-liter water flush) Washdown WC DirectFlush

Colour: Alpine White

Material: Sanitary Porcelain

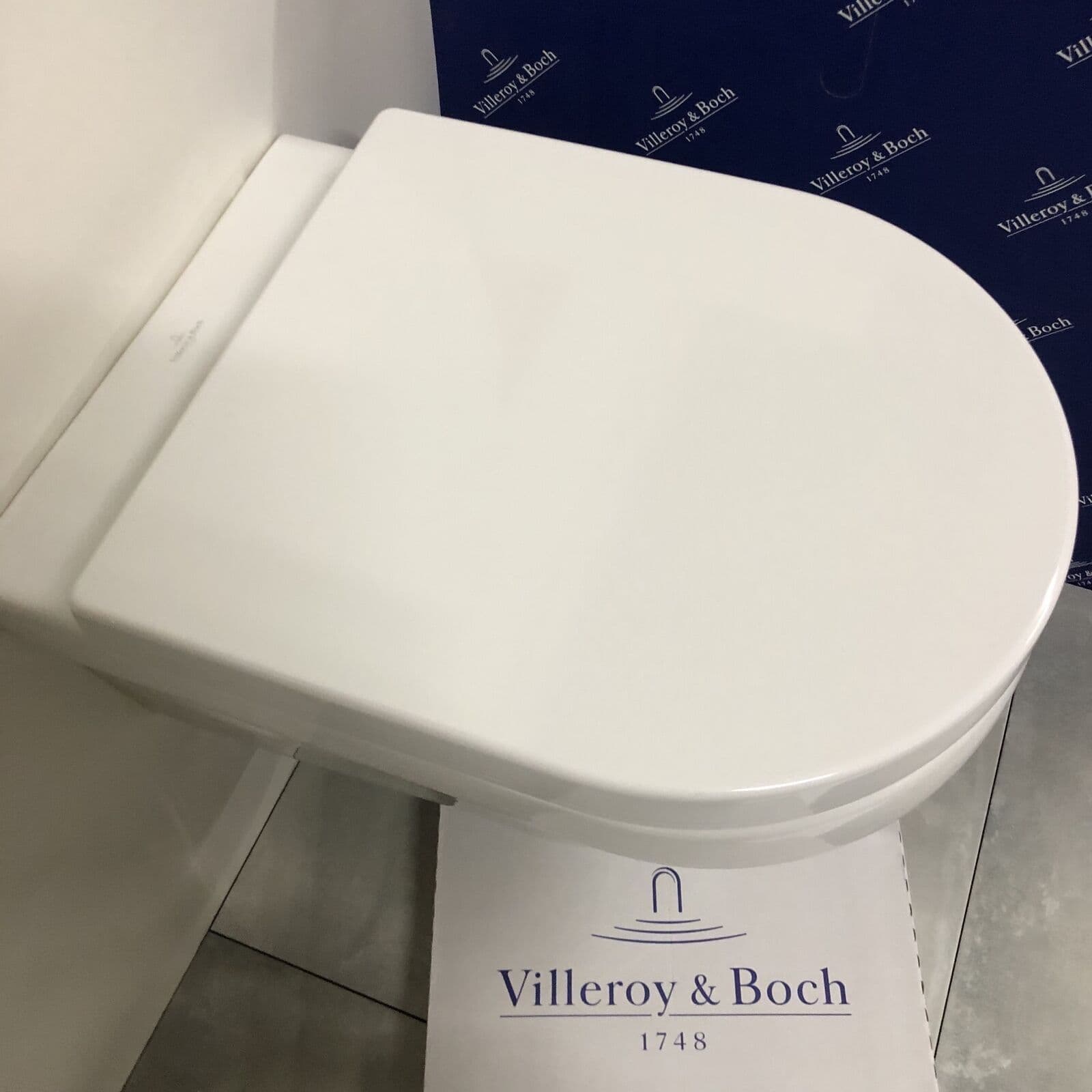

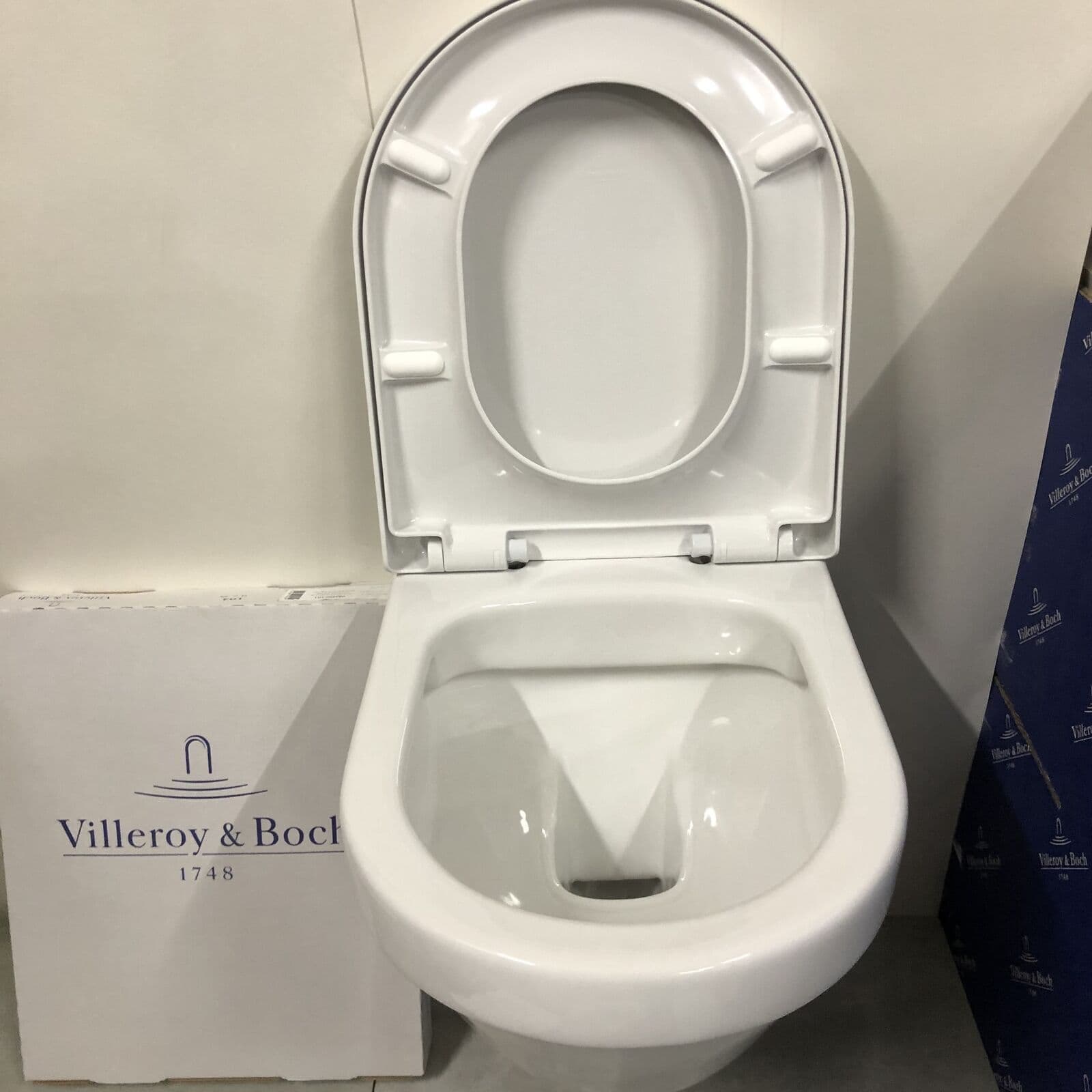

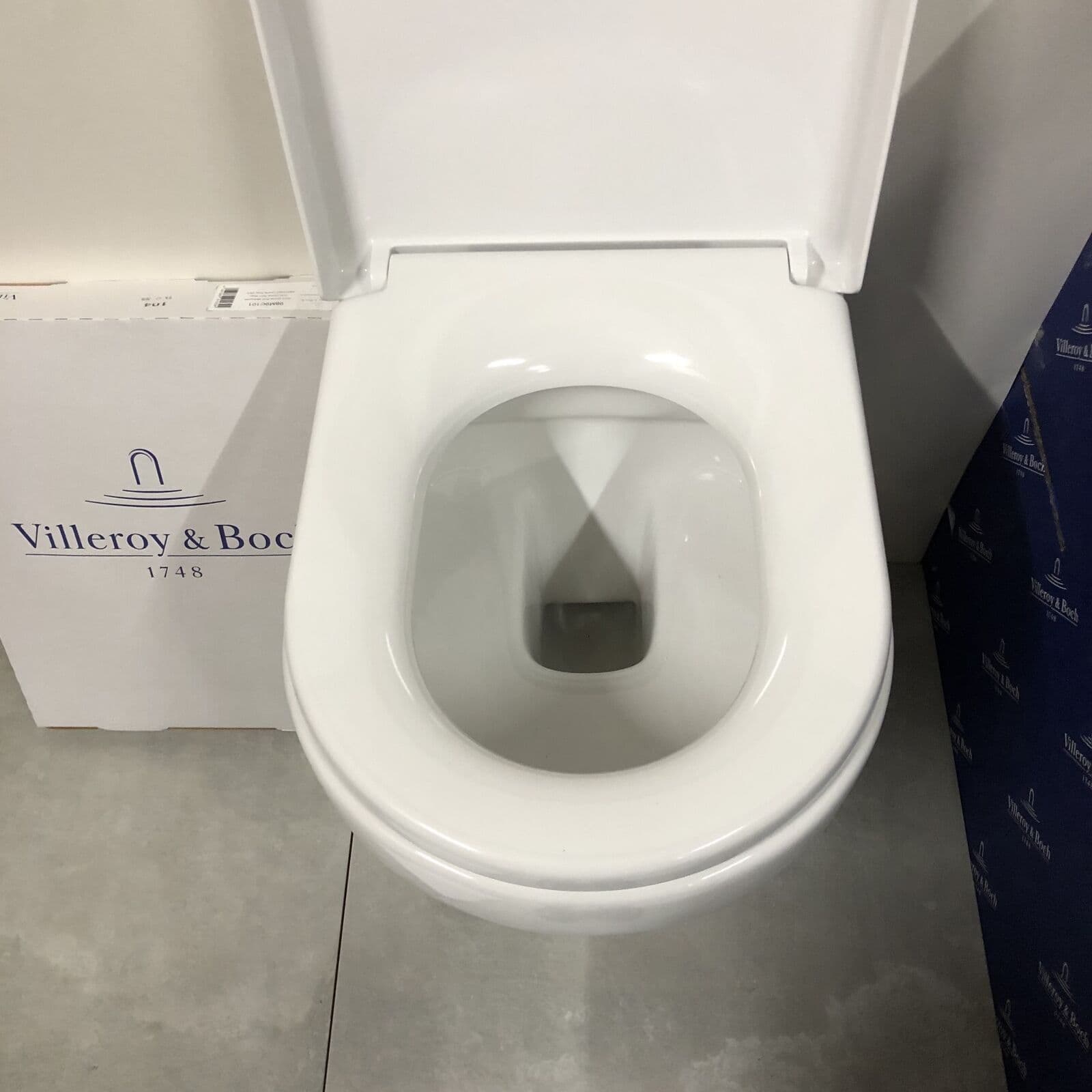

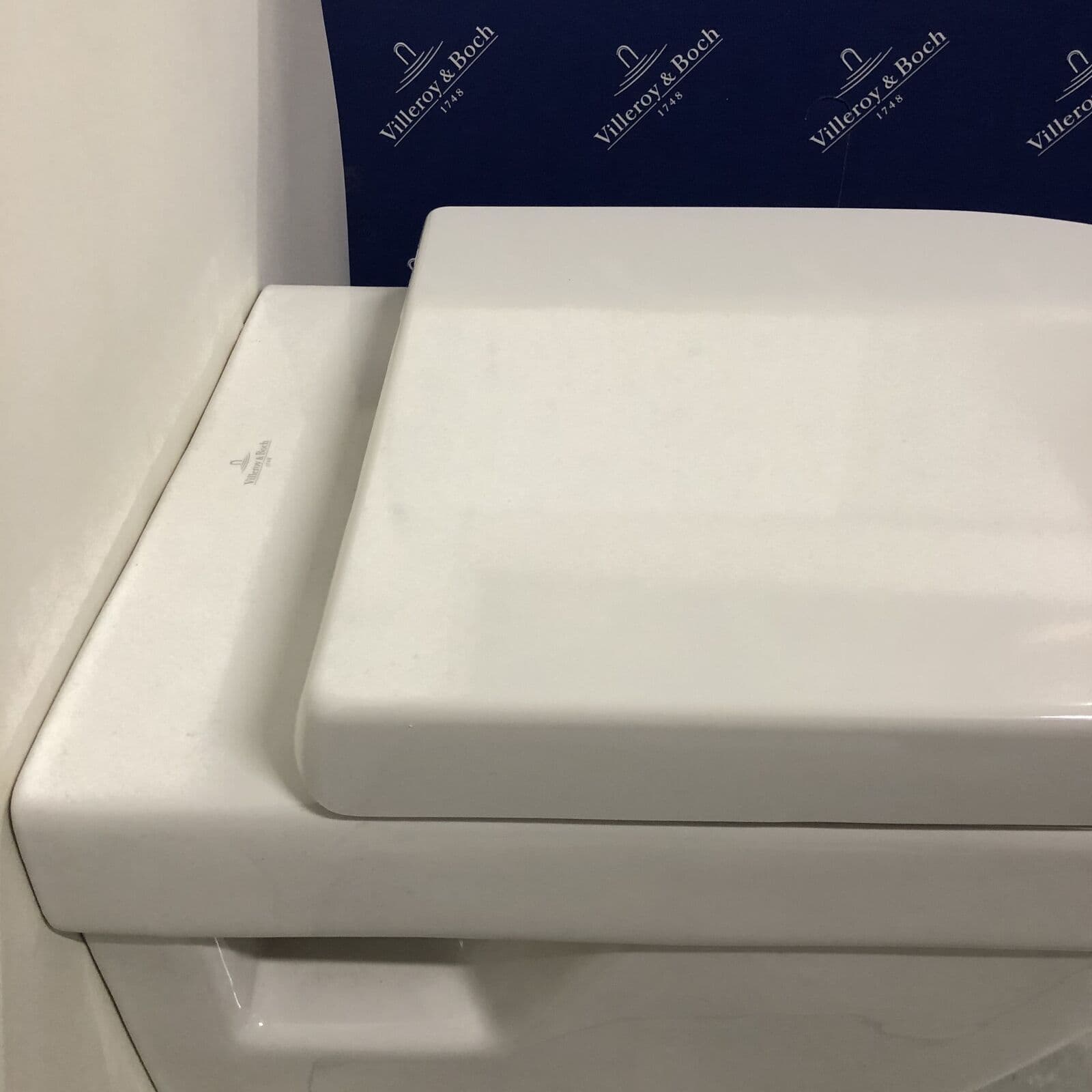

2. Villeroy & Boch Architectura Soft closing WC seat WC-seat and cover with Quick-Release and Soft Closing hinges
