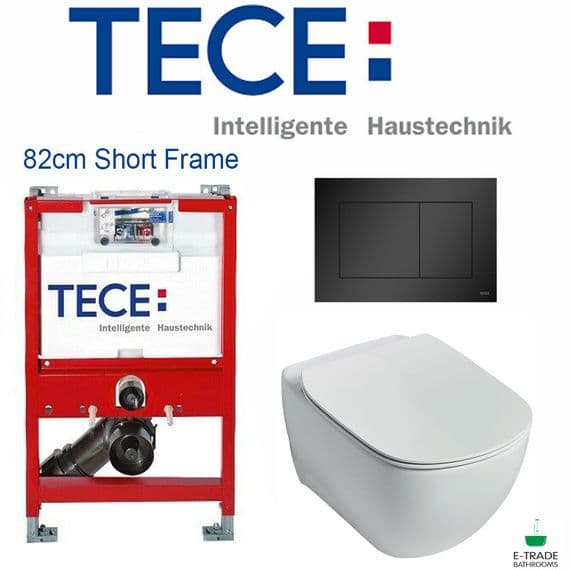

TECE 82cm SHORT FRAME + 'NOW' FLUSH PLATE IN BLACK WITH IDEAL STANDARD TESI AQUABLADE RIMLESS SOFT CLOSING WC

Manufacturer product numbers = 9.300.380 9.240.403 T007901

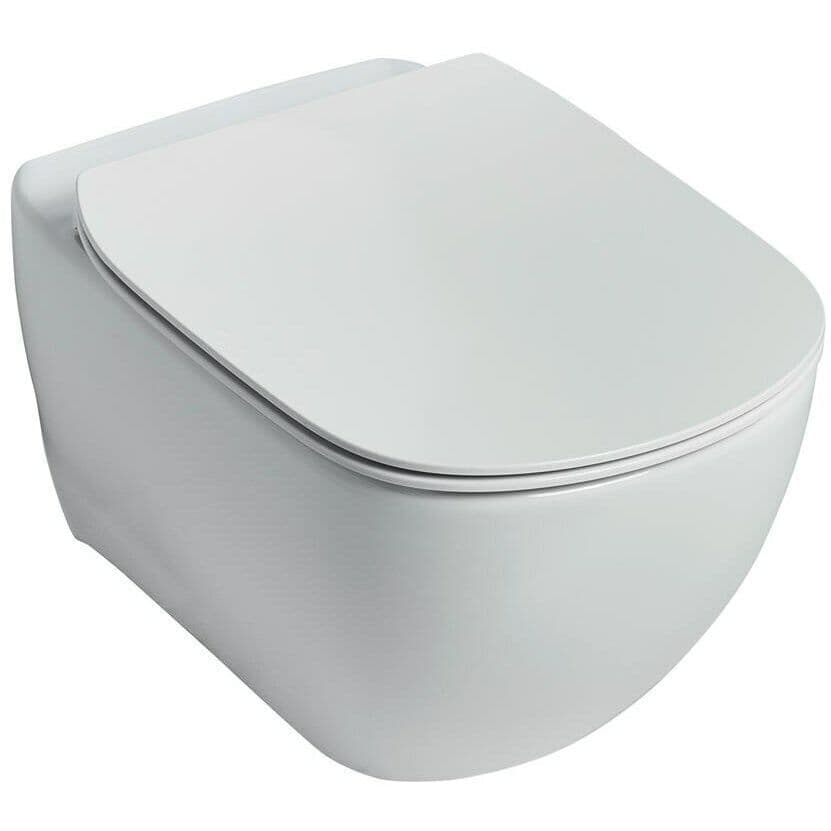

  Ideal Standard Tesi Aquablade Description:

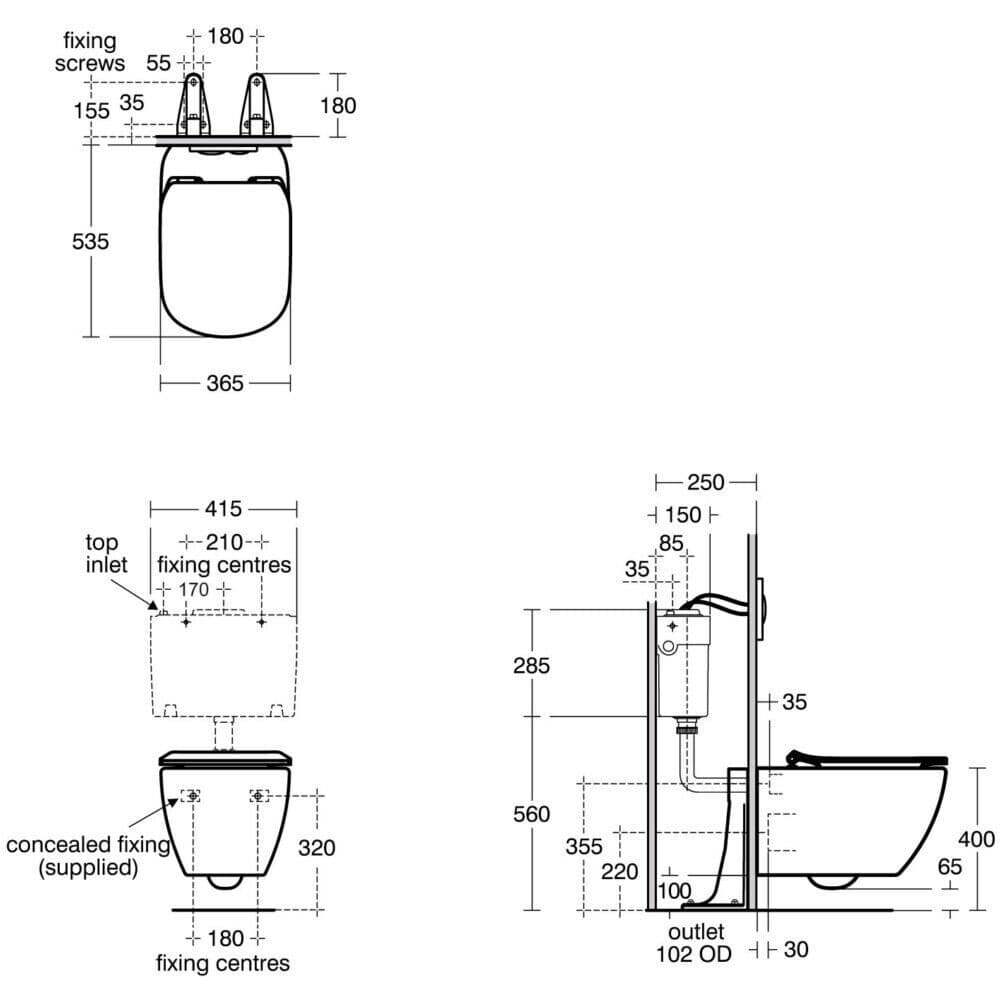

This Ideal Standard Tesi Wall Hung WC Pan serves up a healthy helping of fashion and function. The contemporarily crafted ceramic ware boasts of a modern geometric profile which is splendidly accentuated with a pristine white finish. It is an efficacious product featuring new AquaBlade® flushing technology and completely hidden fixation system. Aquablade is a prevalent technology because of its superior flush performance, offering a high standard of hygiene. Styled by Robin Levien, it fits right into all kinds of spaces, commercial or residential. See images for dimensions.

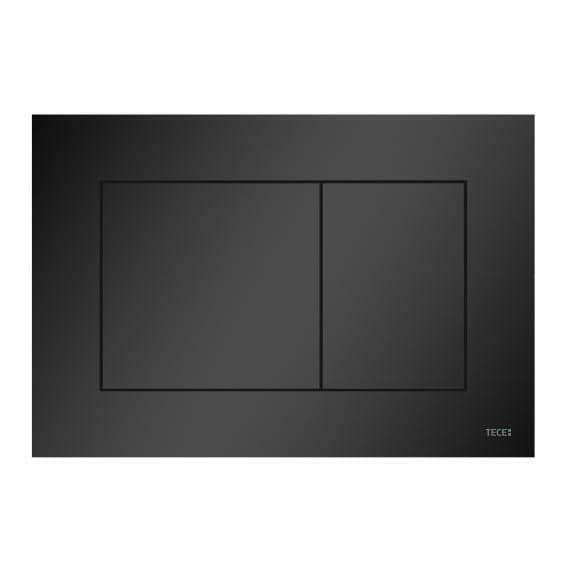

Flush Plate Description:

Generous buttons in an extra-flat frame characterise the look of TECEnow. The extra-flat construction of the flush plate at just 6 mm also underscores its clear effect. TECEnow can also be flush-mounted as an option.   If quality accents and exciting contrasts are to be achieved in the bathroom, then matte black surfaces are currently the way to go. They look individual, elegant and cool – and are guaranteed never to go out of fashion.
Especially as a contrasting colour to natural stone tiles, wood or in combination with metallic surfaces, matte black makes a real statement in the bathroom. This fascinating colour option is now also available for TECEnow. The matte black surface elegantly emphasises the functional, plain design, the defined edges and the flat design of the plastic flush plates for the toilet.

But not only the look visualises quality – the feel, too, is refined:

The full, mechanical haptics of the flush buttons with rubber buffers add to the overall impression of high quality. The plate also offers the tried-and-tested dual-flush system with small and large flush volume, and can also be installed flush-mounted. With the matte black TECEnow, the trade and planners can offer their customers a mature solution that looks like an elegant designer piece but was designed for the plastic segment: Refined for everyone.

Details
Item number:9300001
Series:profile
***

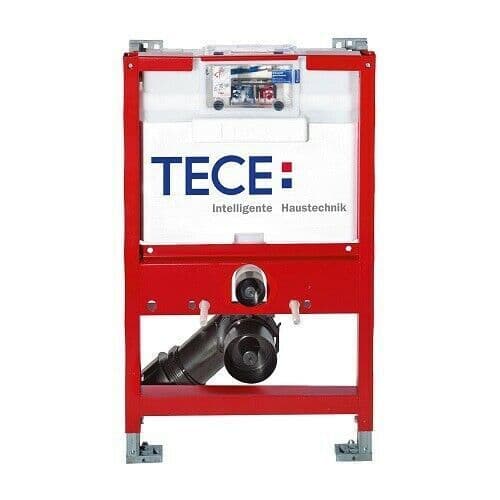

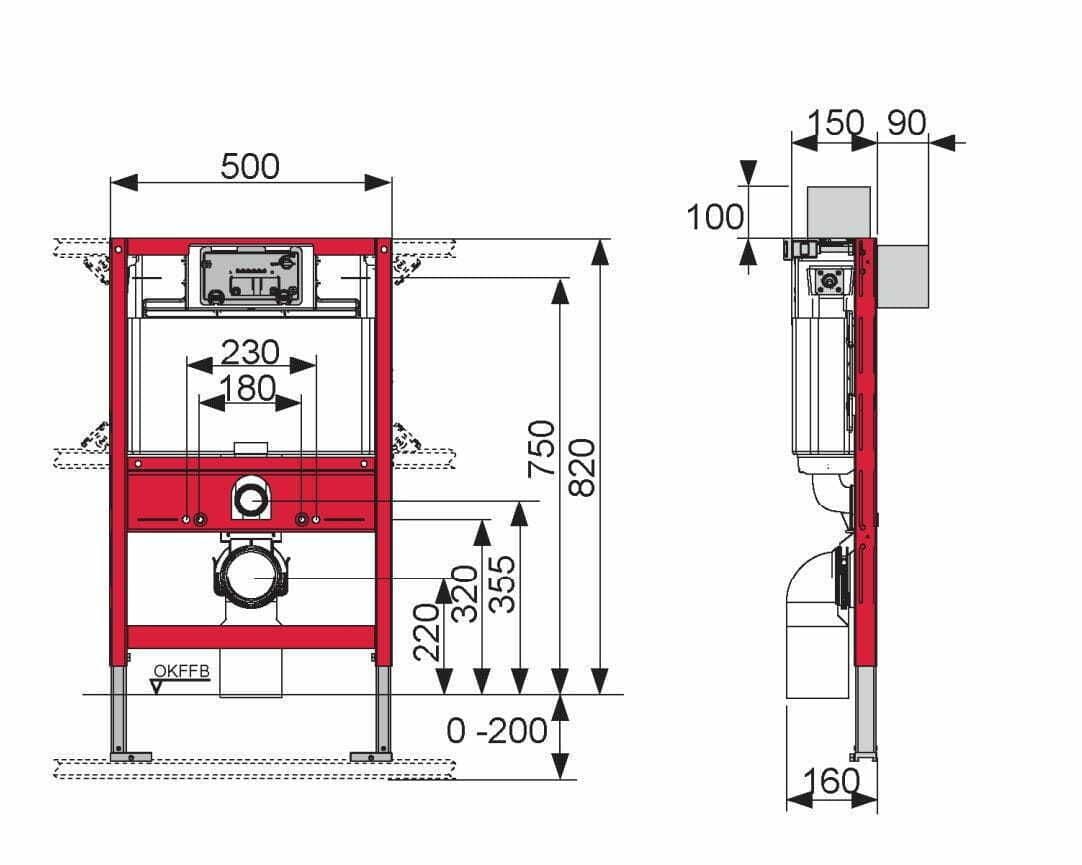

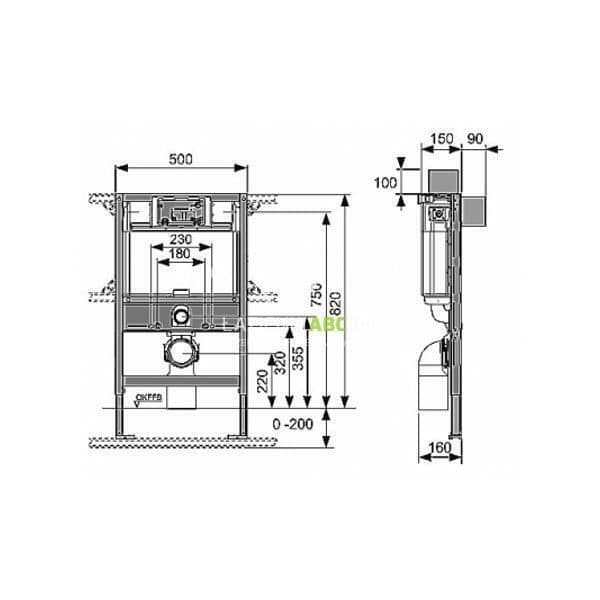

Frame Specifications:
For fixing to TECEprofil section tubes or as a pre-wall installation or corner module.
For toilet flush handle and all TECE push plates.

Fully pre-assembled unit consisting of:

TECE flush-mounted cistern for top or front actuation:
- safety tank made of impact-resistant plastic
- cistern fully pre-assembled and sealed
- angle valve and cistern connection pre-assemble
- angle connection with 1/2" female thread
- hydraulically optimised cistern for low assembly heights
- 10-litre tank volume; 6-litre cistern in accordance with DIN 19542; 4.5/7.5/9-litre flush volume can be set at any time; 3-litre part-flush with dual flush technology. Residual volume available for immediate cleaning rinse
- can be set as a single or dual flush cistern depending on the flush plate used

Module consisting of:
- self-supporting assembly frame with powder-coated surface
- two M12 retaining bolts and M12 nut
- DN 90 toilet drain bend with DN 90/100 reducer; material PP
- reducer is also suitable for horizontal installation
- DN 90 toilet connection set, including protective plug
- two depth-adjustable module attachments

Note:
Please order toilet flush plate separately.

Note: when using ceramic toilets with reduced support surface (e.g. Villeroy & Boch Memento, Sentique, Subway 2.0 you will need to install the steel support set 9041029 in the lower construction space (available separately).

If the flush plate is fitted on the front and a compact ceramic system is used in the case of cisterns with a low assembly height, the toilet lid may occasionally drop down unintentionally. Use only when compact ceramic systems are used (e.g. Ideal Standard: San Remo slimline R 3493; Villeroy & Boch: Viala 765310, Viala 765210; Keramag: Renova-Comprimo 204550; Joly 203060) fit flush plate with top actuation only.

Tested in accordance with DIN 19542 certificate 7391275-01z; fittings group 1 in accordance with DIN 4109 test certificate P-IX3837/I; low-noise hydraulic fill valve LAP ≤ 17 dB(A) at 3 bar flow pressure.

Material & Colour:
Material: Steel

Dimensions:
Width: 50
Height: 82
Depth:16
