TECE 82cm WC TOILET FRAME WITH TECE SQUARE FLUSH PLATE IN WHITE

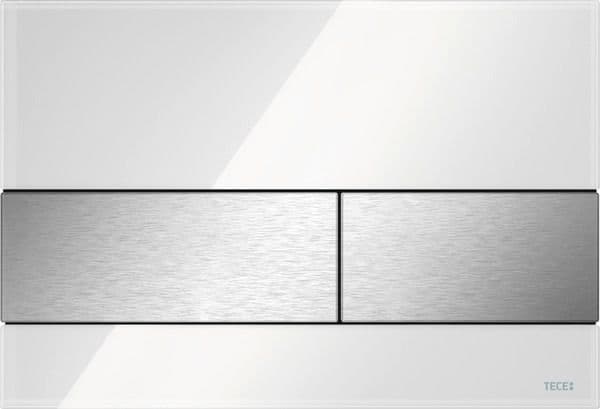

Flush Plate Description:
A premium range of glass 'flush plates' for concealed cisterns and sanitary ware installation frames by TECE. Contemporary 'flat' or optional 'flush' design combines with high quality materials to discretely actuate the controls of concealed cisterns. Supplied with all fittings.

Features and benefits:

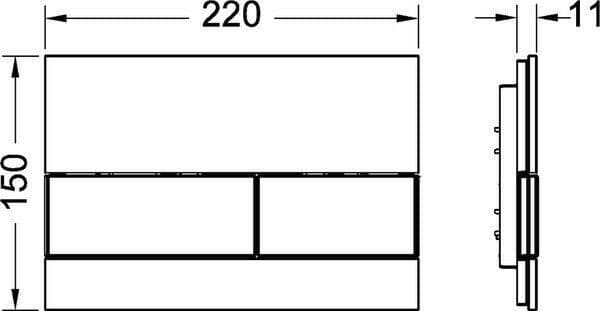

Glass range of dual flush, contemporary flush plates is available in a choice of 13 designs/ finishes. Slimline 'flat' push button plate fits 11 mm proud of the surface and operates all models of TECE concealed cisterns and frames for WCs. Push control button also acts as removable decorative access cover to allow instant access to complete control and service assembly, including unique transparent splash guard. A completely smooth 'flush' finish option uses additional installation frame recessed into wall. Compatible with optional insert chute for use with cleaning tablets. Supplied with control push rods to actuate flush valve components within the cistern.
FLUSH PLATE NUMBER: 9.240.801

***

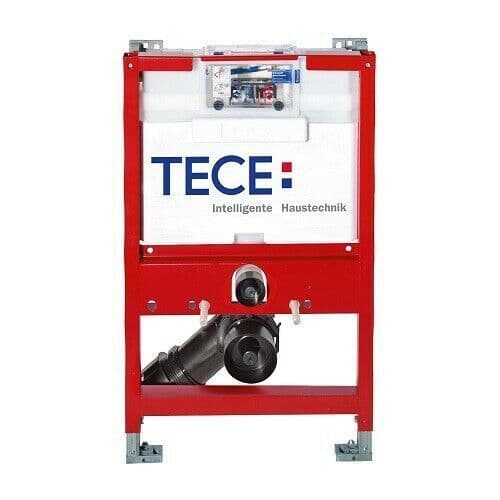

Frame Specifications:
For fixing to TECE profile section tubes or as a pre-wall installation or corner module.
For toilet flush handle and all TECE push plates.

Fully pre-assembled unit consisting of:

TECE flush-mounted cistern for top or front actuation:
- safety tank made of impact-resistant plastic
- cistern fully pre-assembled and sealed
- angle valve and cistern connection pre-assemble
- angle connection with 1/2" female thread
- hydraulically optimised cistern for low assembly heights
- 10-litre tank volume; 6-litre cistern in accordance with DIN 19542; 4.5/7.5/9-litre flush volume can be set at any time; 3-litre part-flush with dual flush technology. Residual volume available for immediate cleaning rinse
- can be set as a single or dual flush cistern depending on the flush plate used

Module consisting of:
- self-supporting assembly frame with powder-coated surface
- two M12 retaining bolts and M12 nut
- DN 90 toilet drain bend with DN 90/100 reducer; material PP
- reducer is also suitable for horizontal installation
- DN 90 toilet connection set, including protective plug
- two depth-adjustable module attachments

Tested in accordance with DIN 19542 certificate 7391275-01z; fittings group 1 in accordance with DIN 4109 test certificate P-IX3837/I; low-noise hydraulic fill valve LAP ≤ 17 dB(A) at 3 bar flow pressure.

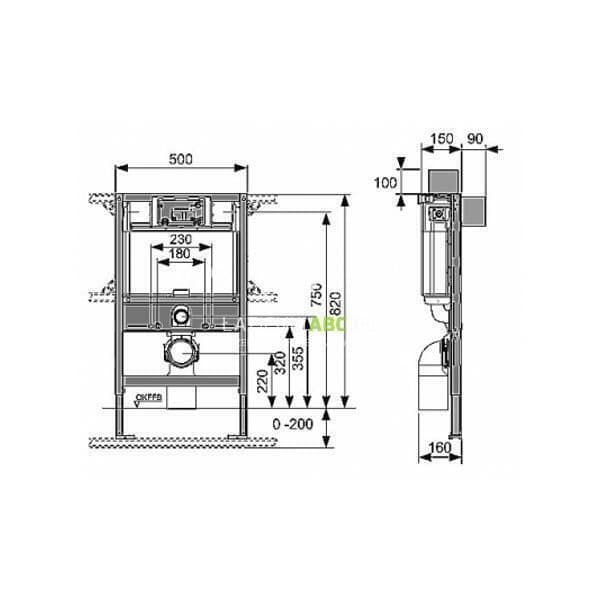

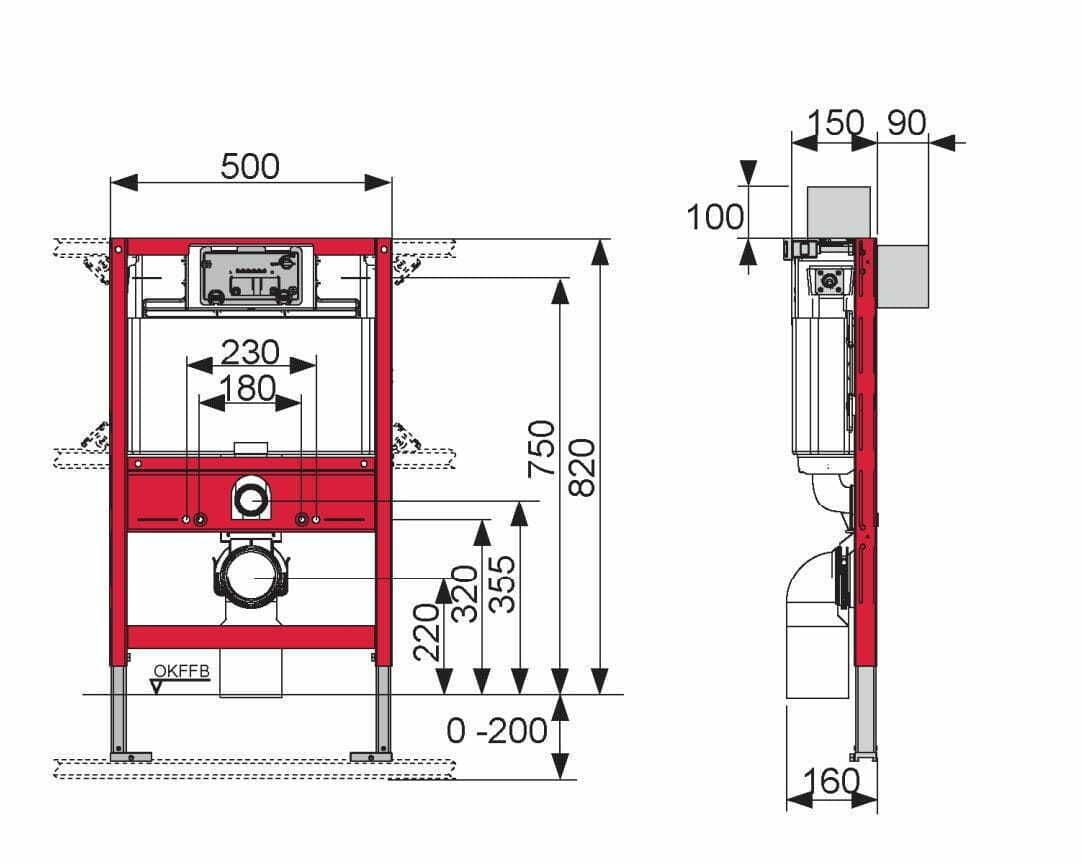

Dimensions:
Width:50
Height:82
Depth:16
