TECE SLIM WC FRAME 8cm WITH FLUSH PLATE AND COMPACT SIZE RIMLESS TOILET WITH SOFT CLOSING SEAT
THIS SET CONSISTS OF:

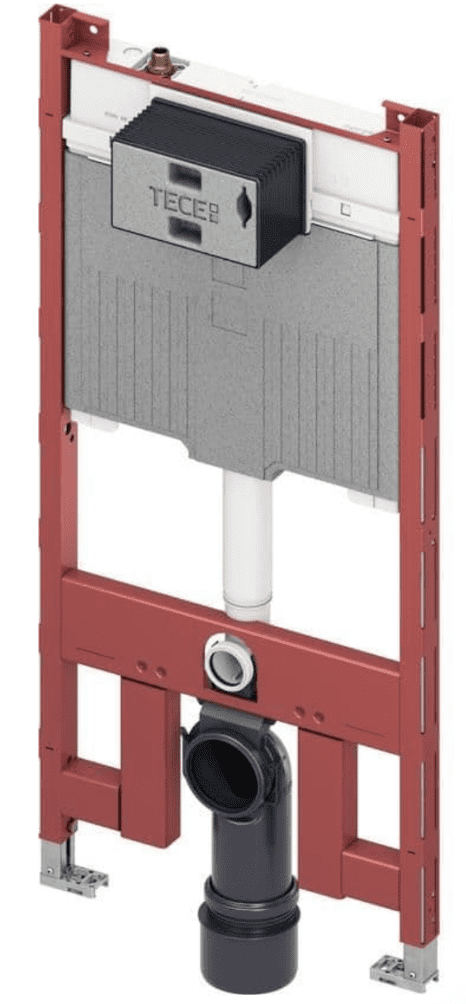

1. TECE SLIM WC FRAME 8cm WITH CISTERN, WC BEND AND BRACKETS - MPN: 9.300.502
2. TECE DUAL FLUSH PLATE 'NOW' IN WHITE PLASTIC - MPN: 9.240.400
3. WALL HUNG RIMLESS TOILET WITH SOFT CLOSING SLIM SEAT - MPN: M203
***
DETAILS ABOUT FRAME AND FLUSH PLATE:
TECE Base module for wall WC including flush plate with Uni cistern
For single block installation, as a pre-wall module in front of solid walls and for installation in metal or wooden stud walls
Fully pre-assembled unit consisting of:
- Uni cistern for operation from the front or top
- Safety tank made of impact-resistant plastic
- Cistern connection with 1/2 "external thread
- 10 liters tank volume 6 liters preset standard flush volume
- 4,5 / 7,5 / 9 litres flush volume optionally adjustable at any time
- 3 liter partial flush with dual-mix technology
- Residual volume usable for immediate cleaning rinse
- Insulated to prevent condensation
- Tested according to DIN EN 14055
- Fittings group 1 according to DIN 4109
- Low noise hydraulic filling valve
Module consisting of:
Self-supporting mounting frame, powder-coated
Two retaining bolts and nuts M 12
Mounting kit for solid walls
Toilet drain bend DN 90 with transition adapter DN 90/100 made of PP
Transition adapter also suitable for horizontal installation
Toilet connection set DN 90
Including building protection plugs
Dual quantity actuator plate TECE "NOW" in WHITE PLASTIC
10L Tank Capacity
Purge Volume optionally adjustable at any time
Insulated against condensation
For dimensions please see images in our photo gallery
DETAILS ABOUT WC TOILET:
Compact size wall hung toilet
Made of quality sanitary porcelain
Rimless Technology for better flush
Soft closing slim seat with easy release hinges
Manufacturers' Product Number: LENA
For dimensions please see the images in our photo gallery
