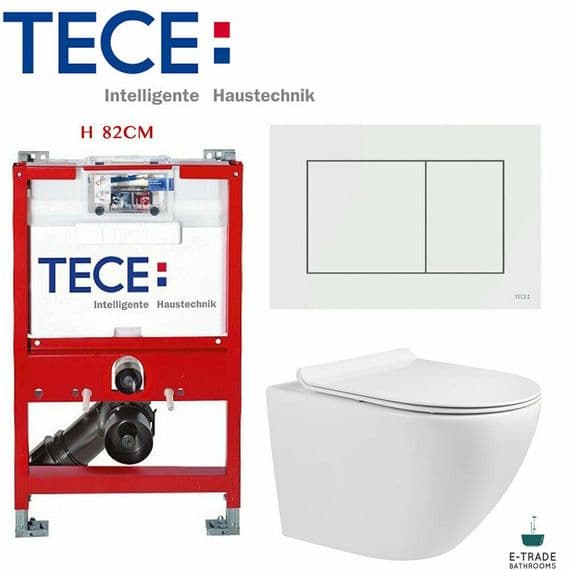

TECE SHORT FRAME 82cm WITH FLUSH PLATE AND RIMLESS COMPACT WALLHUNG TOILET WITH SLIM SOFT CLOSING SEAT

  THIS SET CONSISTS OF:

1. TECE WC FRAME WITH CISTERN, WC BEND AND BRACKETS - MPN: 9.300.001

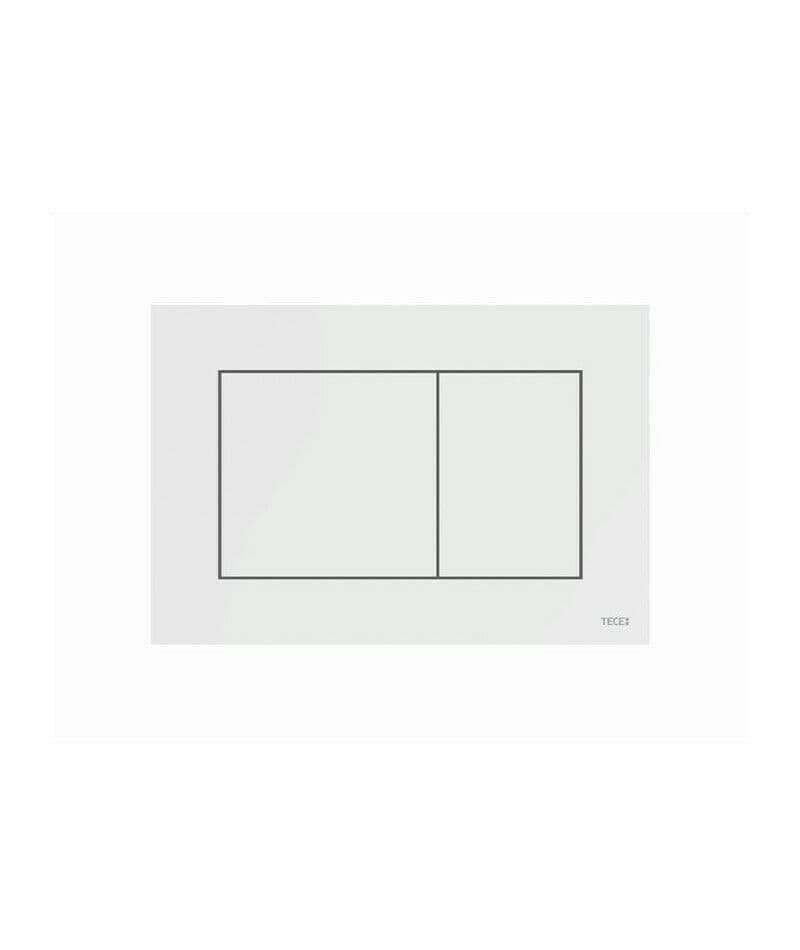

2. TECE DUAL FLUSH PLATE 'NOW' IN WHITE - MPN: 9.240.400

3.  WALL HUNG RIMLESS TOILET WITH SOFT CLOSING SLIM SEAT - MPN: M203

***

1. and 2.

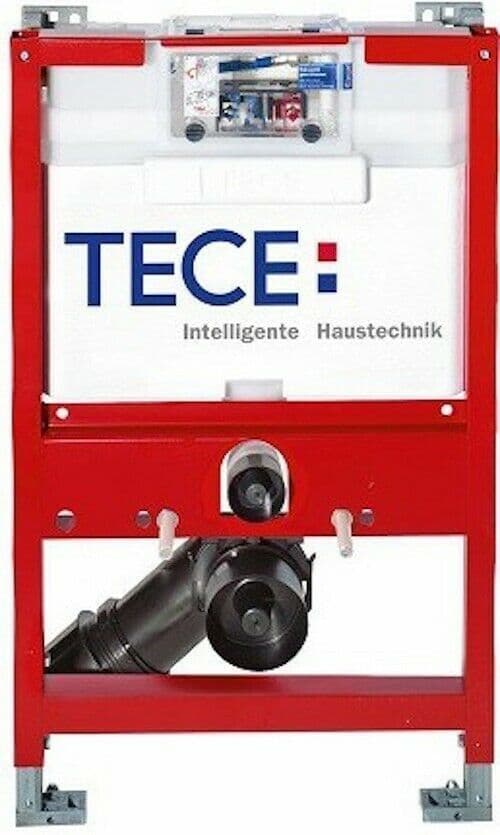

TECE Base module for wall WC including flush plate with Uni cistern
For single block installation, as a pre-wall module in front of solid walls and for installation in metal or wooden stud walls

Fully pre-assembled unit consisting of:
- Uni cistern for operation from the front or top
- Safety tank made of impact-resistant plastic
- Cistern connection with 1/2 "external thread
- 10 liters tank volume 6 liters preset standard flush volume
- 4,5 / 7,5 / 9 liters flush volume optionally adjustable at any time
- 3 liter partial flush with dual-mix technology
- Residual volume usable for immediate cleaning rinse
- Insulated to prevent condensation
- tested according to DIN EN 14055
- Fittings group 1 according to DIN 4109
- low noise hydraulic filling valve

Module consisting of:
- Self-supporting mounting frame, powder-coated
- Two retaining bolts and nuts M 12
- Mounting kit for solid walls
- Toilet drain bend DN 90 with transition adapter DN 90/100 made of PP
- Transition adapter also suitable for horizontal installation
- Toilet connection set DN 90
- including building protection plugs
- Dual quantity actuator plate

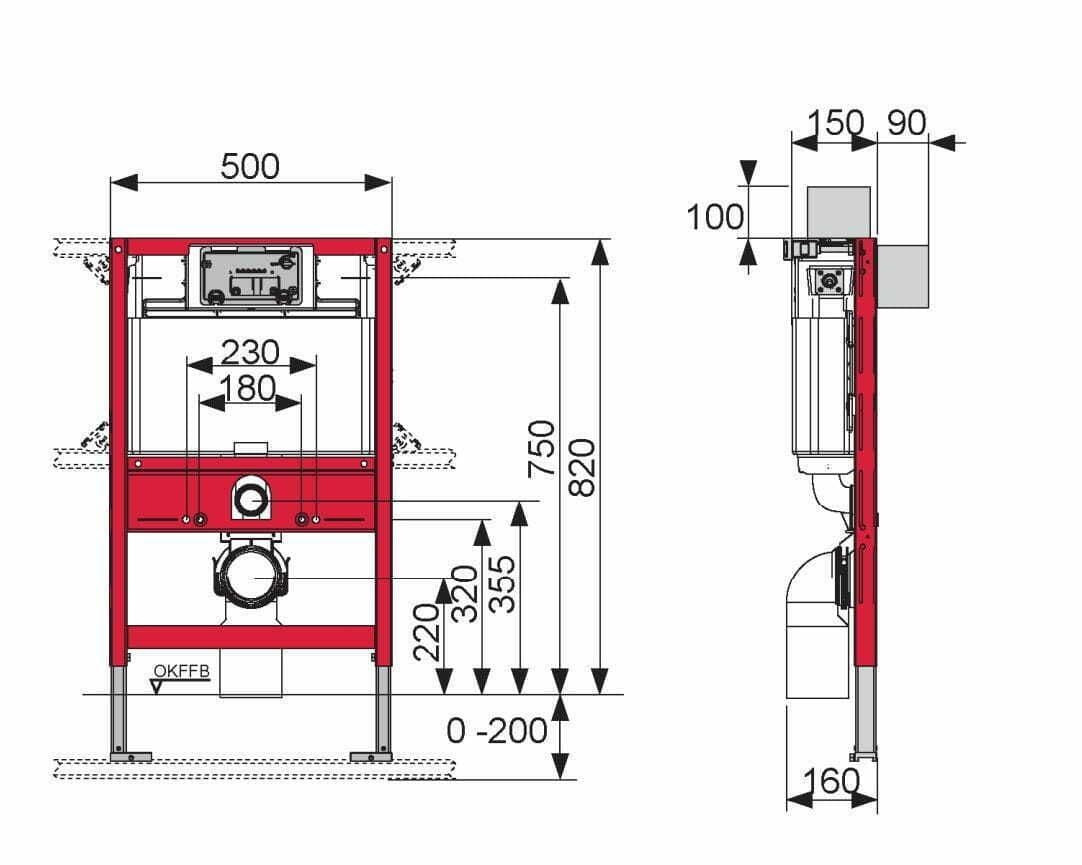

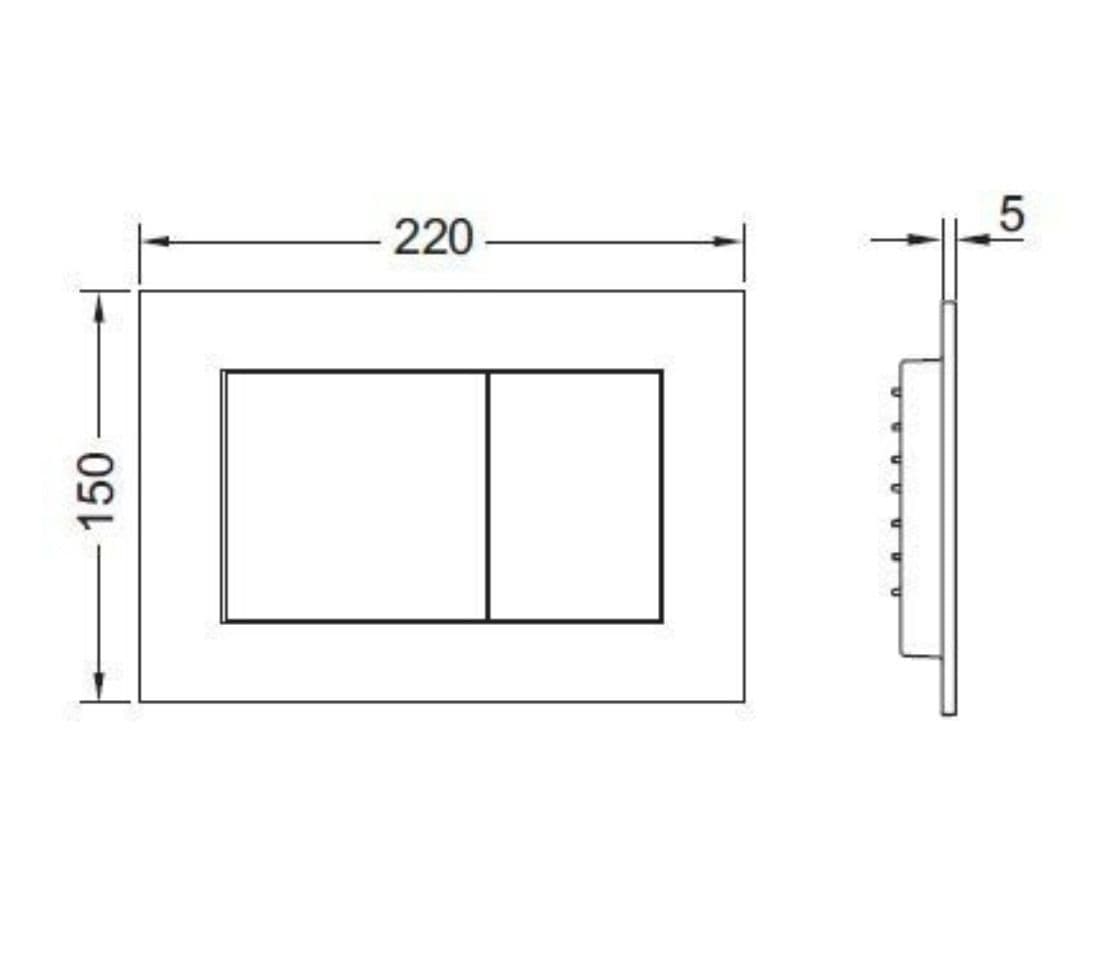

NOW in White 10L Tank Capacity Purge Volume optionally adjustable at any time Insulated against condensation For dimensions please see images in our photo gallery

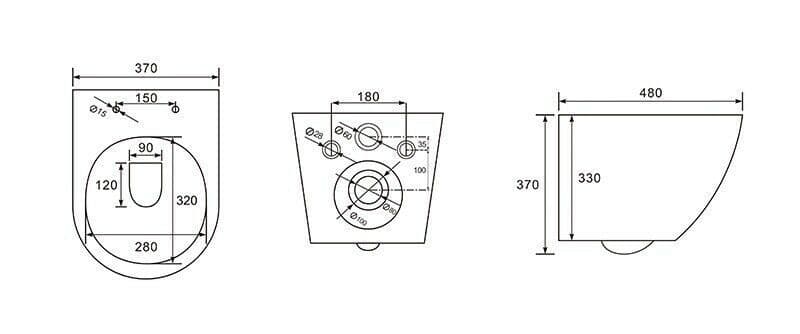

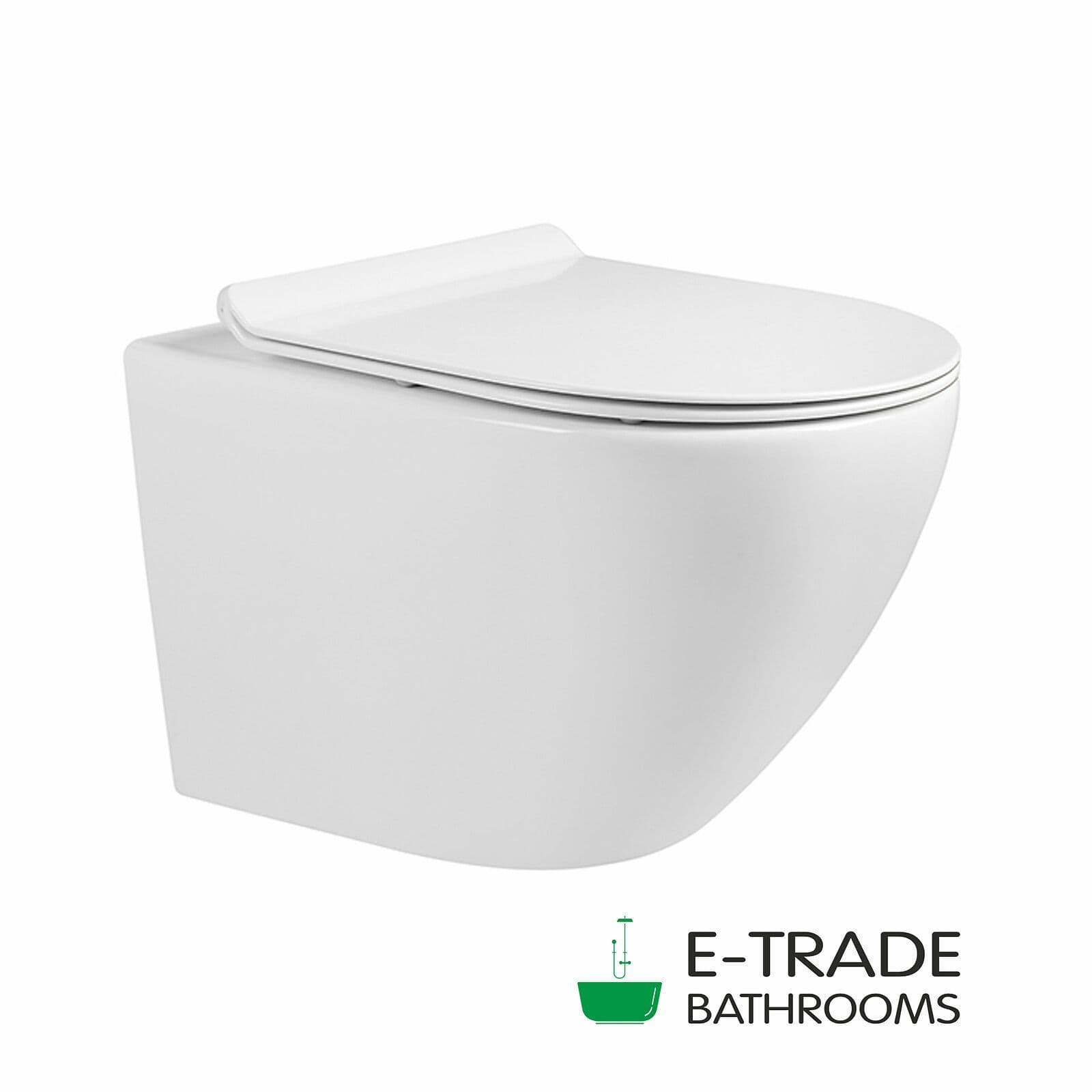

3.  Wall hung Compact Toilet with Seat Made of quality sanitary porcelain Rimless Technology for better flush Soft Closing Slim Seat with easy release hinges Manufacturers' Product Number: M203 For dimensions please see the images in our photo gallery
