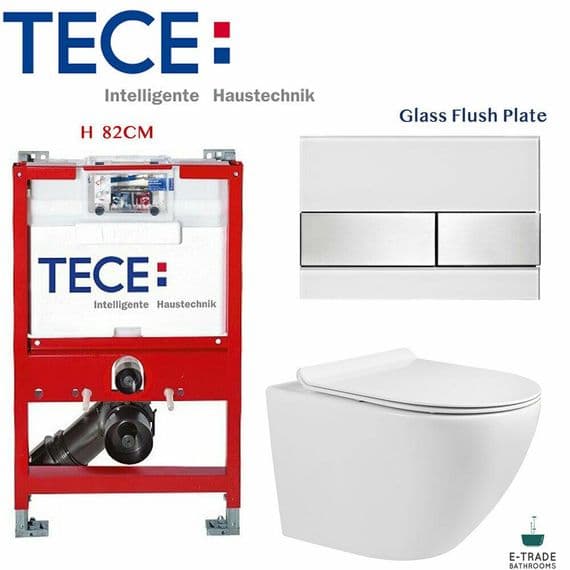

TECE SHORT FRAME 82cm WITH GLASS FLUSH PLATE AND RIMLESS COMPACTWALL HUNG TOILET WITH SLIM SOFT CLOSING SEAT

WC FRAME FOR LOW SPACES, WHERE A STANDARD HEIGHT FRAME WOULD NOT FIT  AND COMPACT SIZE RIMLESS WALL HUNG TOILET WITH SOFT CLOSING SEAT

THIS SET CONSISTS OF:

1. TECE WC FRAME WITH CISTERN, WC BEND AND BRACKETS - MPN: 9.300.001

2 . TECE DUAL FLUSH PLATE 'SQUARE' IN WHITE GLASS - MPN: 9.240.801

3.  WALL HUNG RIMLESS TOILET WITH SOFT CLOSING SLIM SEAT - MPN: M203

***

1. and 2.

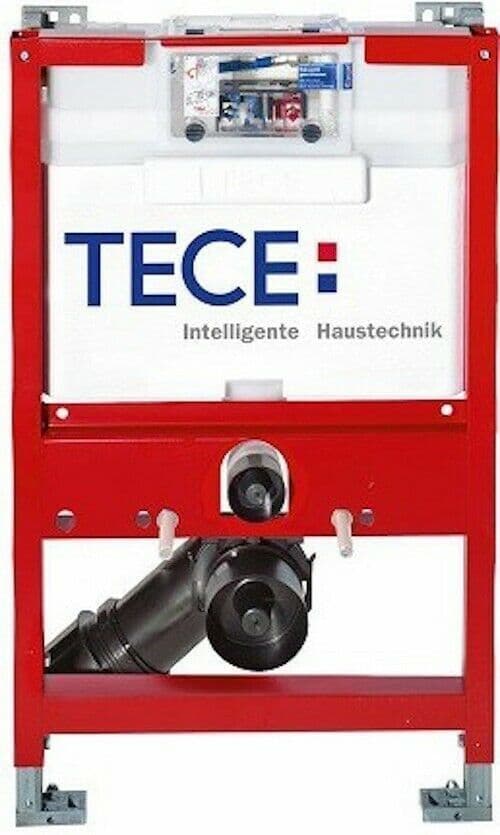

TECE Base module for wall WC including flush plate with Uni cistern
For single block installation, as a pre-wall module in front of solid walls and for installation in metal or wooden stud walls

Fully pre-assembled unit consisting of:
- Uni cistern for operation from the front or top
- Safety tank made of impact-resistant plastic
- Cistern connection with 1/2 "external thread
- 10 liters tank volume 6 liters preset standard flush volume
- 4,5 / 7,5 / 9 liters flush volume optionally adjustable at any time
- 3 liter partial flush with dual-mix technology
- Residual volume usable for immediate cleaning rinse
- Insulated to prevent condensation
- tested according to DIN EN 14055
- Fittings group 1 according to DIN 4109
- low noise hydraulic filling valve

Module consisting of:
- Self-supporting mounting frame, powder-coated
- Two retaining bolts and nuts M 12
- Mounting kit for solid walls
- Toilet drain bend DN 90 with transition adapter DN 90/100 made of PP
- Transition adapter also suitable for horizontal installation
- Toilet connection set DN 90
- including building protection plugs

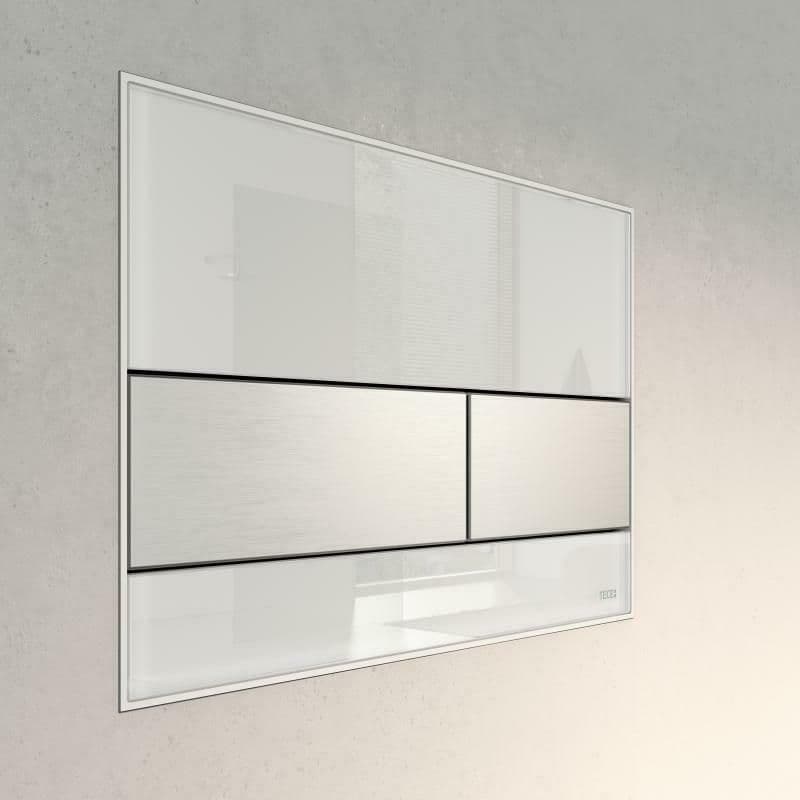

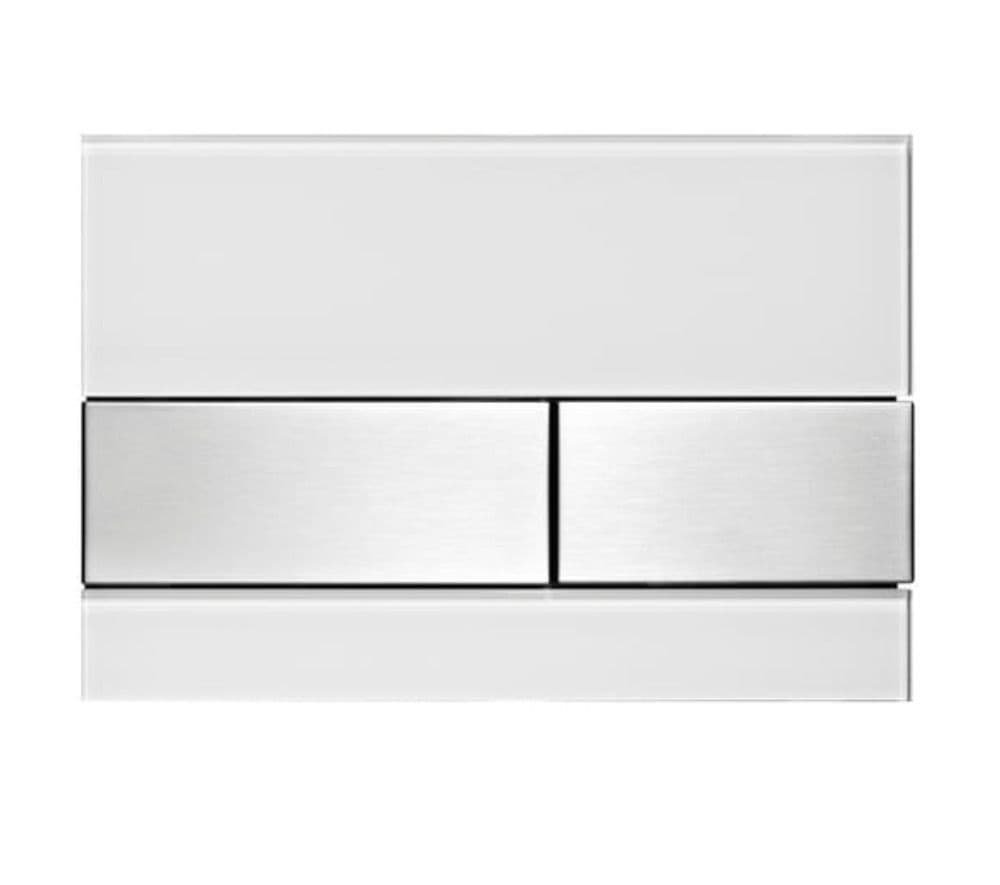

- Dual quantity actuator plate SQUARE in White Glass

10L Tank Capacity Purge

Volume optionally adjustable at any time Insulated against condensation

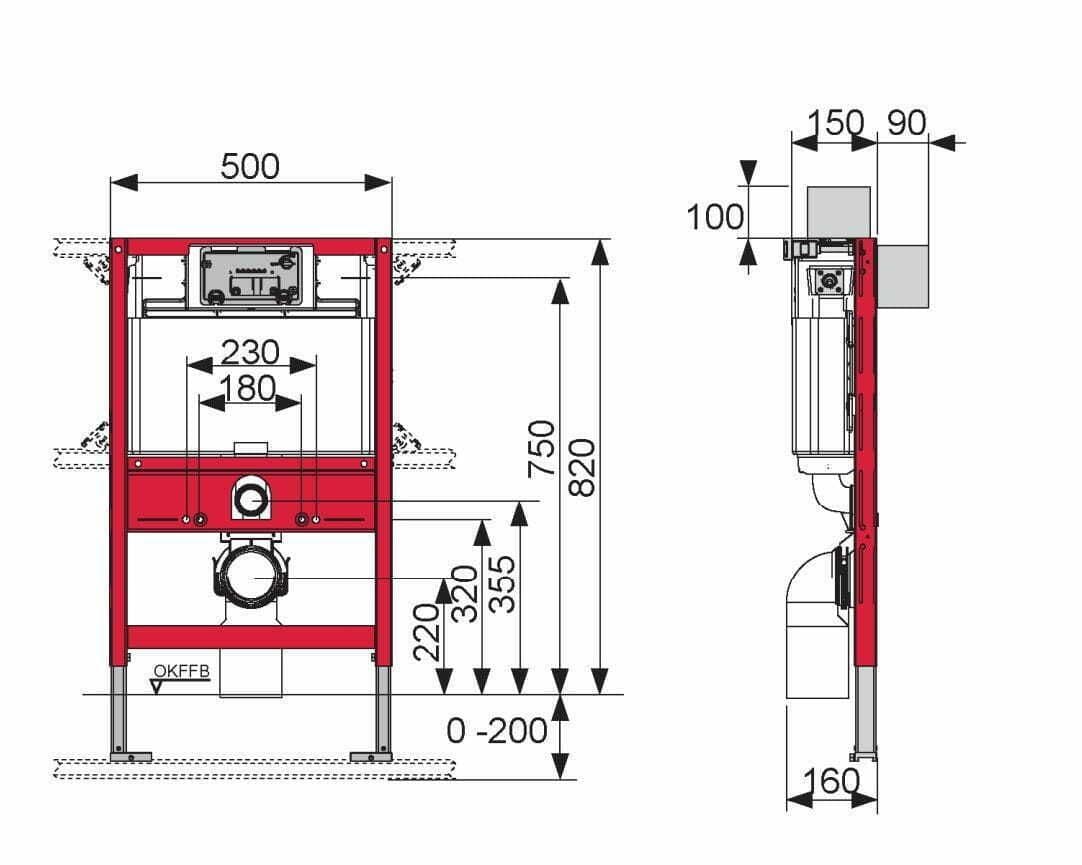

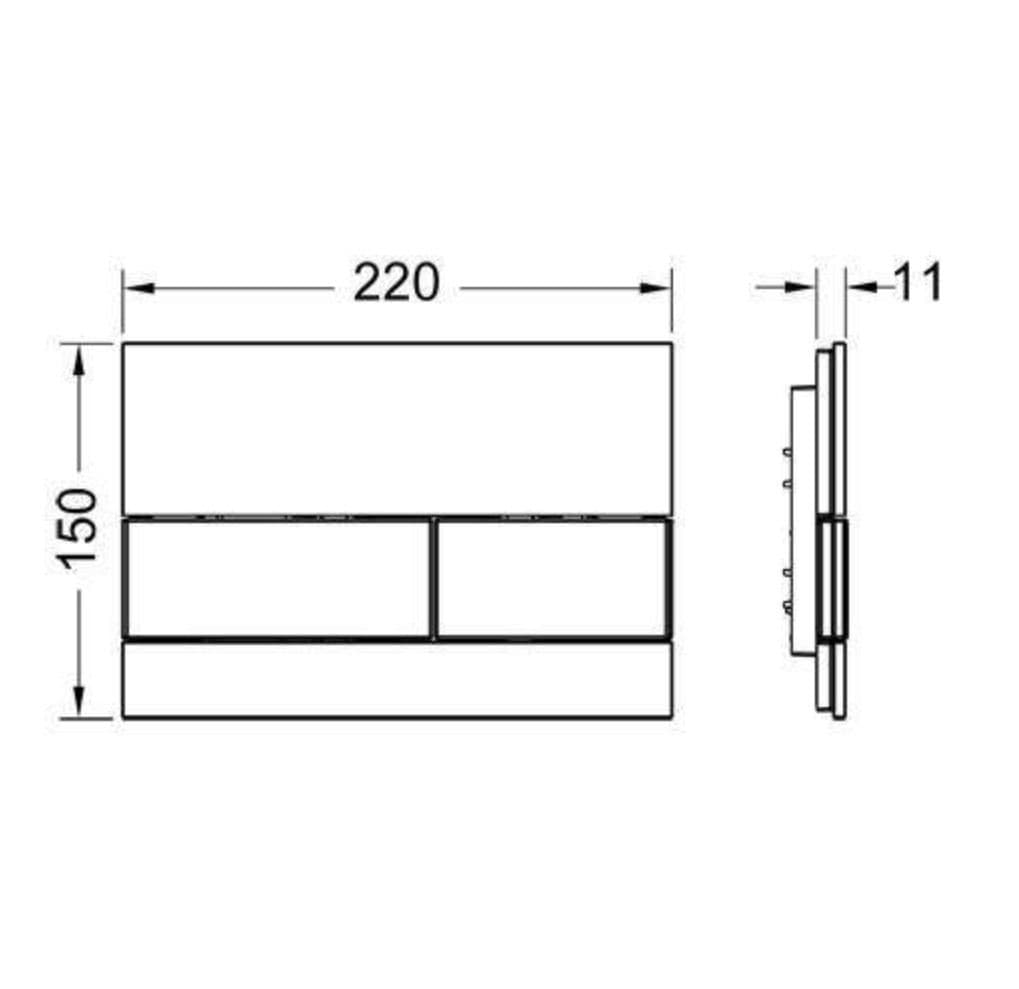

For dimensions please see images in our photo gallery

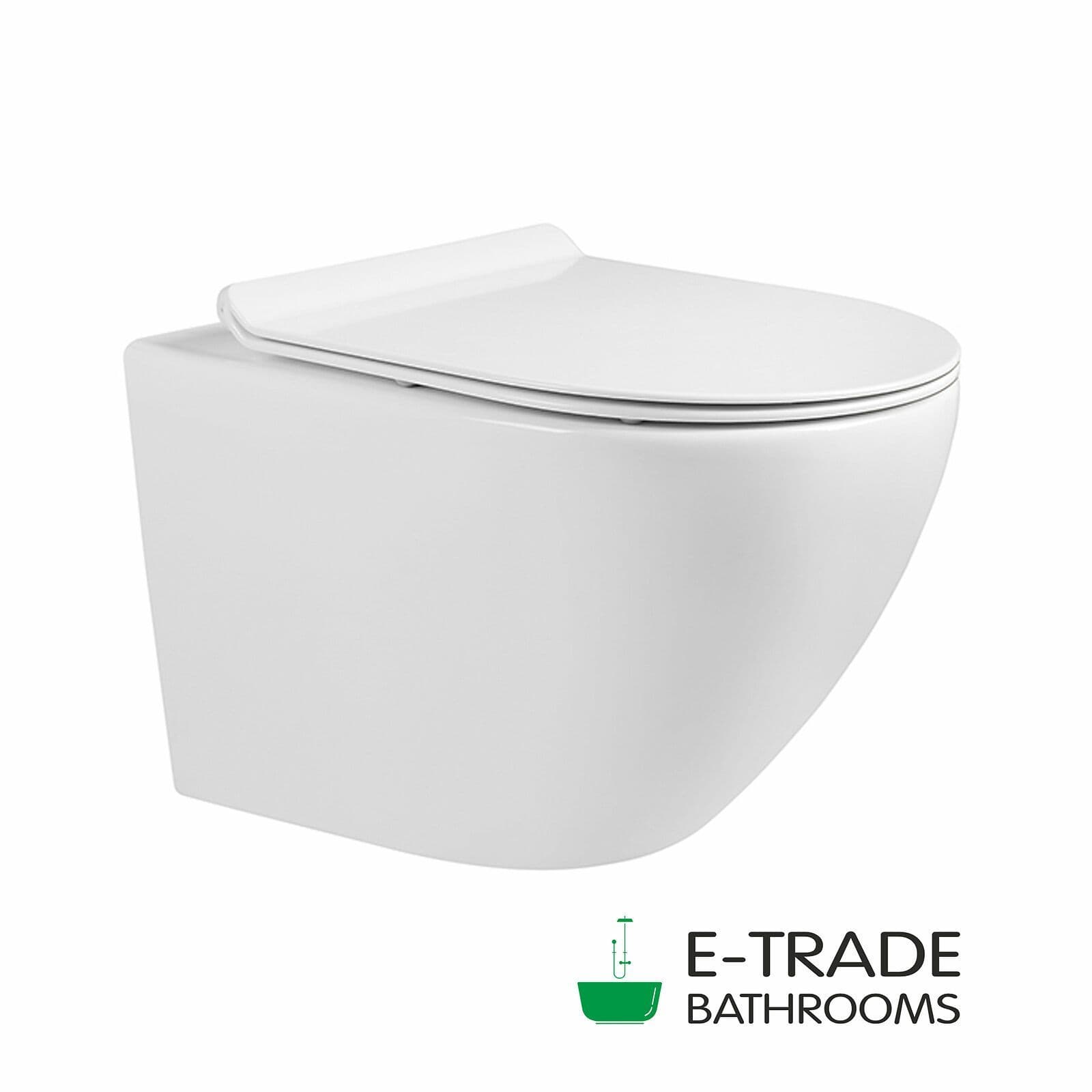

3.  Wall hung Compact Toilet with Seat Made of quality sanitary porcelain Rimless Technology for better flush Soft Closing Slim Seat

Manufacturers' Product Number: M203

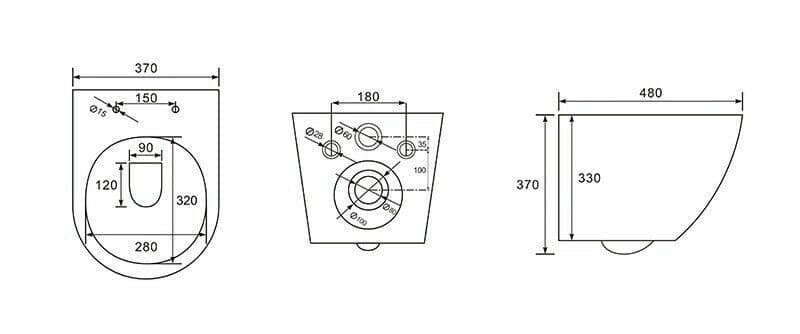

For dimensions please see the images in our photo gallery
